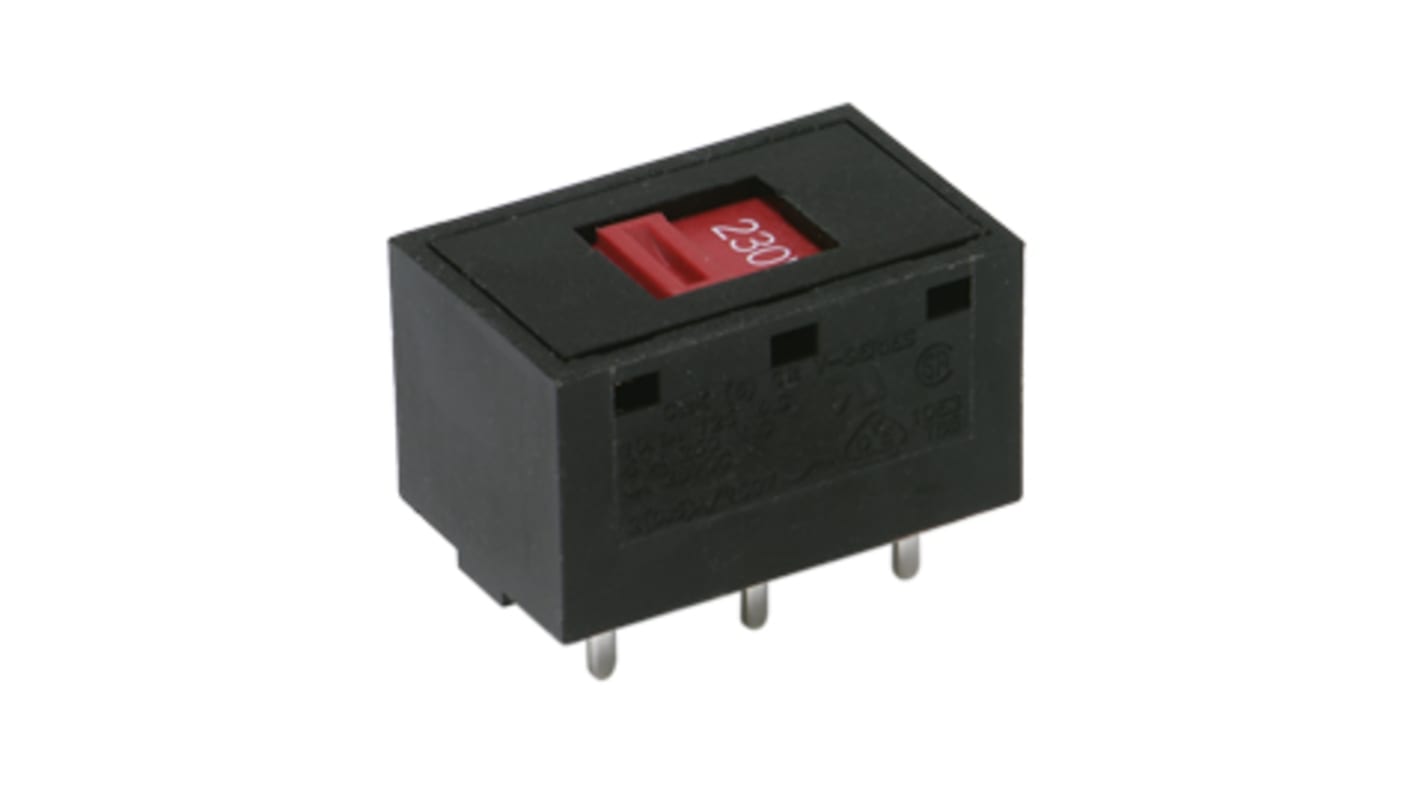

- RS Stock No.:
- 161-2974
- Mfr. Part No.:
- V80212MA08Q
- Brand:
- C & K
Available to back order for despatch 25/07/2024
Added
Price Each (In a Tray of 50)
£4.557
(exc. VAT)
£5.468
(inc. VAT)
Units | Per unit | Per Tray* |
50 + | £4.557 | £227.85 |
*price indicative |
- RS Stock No.:
- 161-2974
- Mfr. Part No.:
- V80212MA08Q
- Brand:
- C & K
Technical Reference
Legislation and Compliance
Product Details
C&K Slide Switches Featuring ultra-miniature, micro, miniature, standard, industrial and power versions. C&Ks 16 series of slide switches give engineers more design flexibility and options when it comes to size, mounting, actuation types, ratings and packages. Whether you develop controllers or consumer goods, headphones or HVAC controls, portable speakers or laptops, audio equipment or alarms.
Ratings up to 10 AMPS
Snap-in panel and PC mounting
Actuators with screwdriver slot
Quick connect terminals available
Snap-in panel and PC mounting
Actuators with screwdriver slot
Quick connect terminals available
Specifications
Attribute | Value |
---|---|
Contact Configuration | DPDT |
Mounting Type | PCB |
Switch Operation | Latching |
Contact Current Rating | 10 A @ 125 V ac, 4 A @ 30 V dc |
Terminal Type | PCB Pin |
Actuator Type | Slot |
Length | 26.19mm |
Width | 16.5mm |
Depth | 15.75mm |
Dimensions | 26.19 x 16.5 x 15.75mm |
Contact Resistance | 10mΩ |
Voltage Rating | 30 V dc, 250V ac |
Actuator Material | Polyester |
Contact Material | Copper |
Maximum Operating Temperature | +85°C |
Operating Temperature Range | -30 → +85°C |
Minimum Operating Temperature | -30°C |
