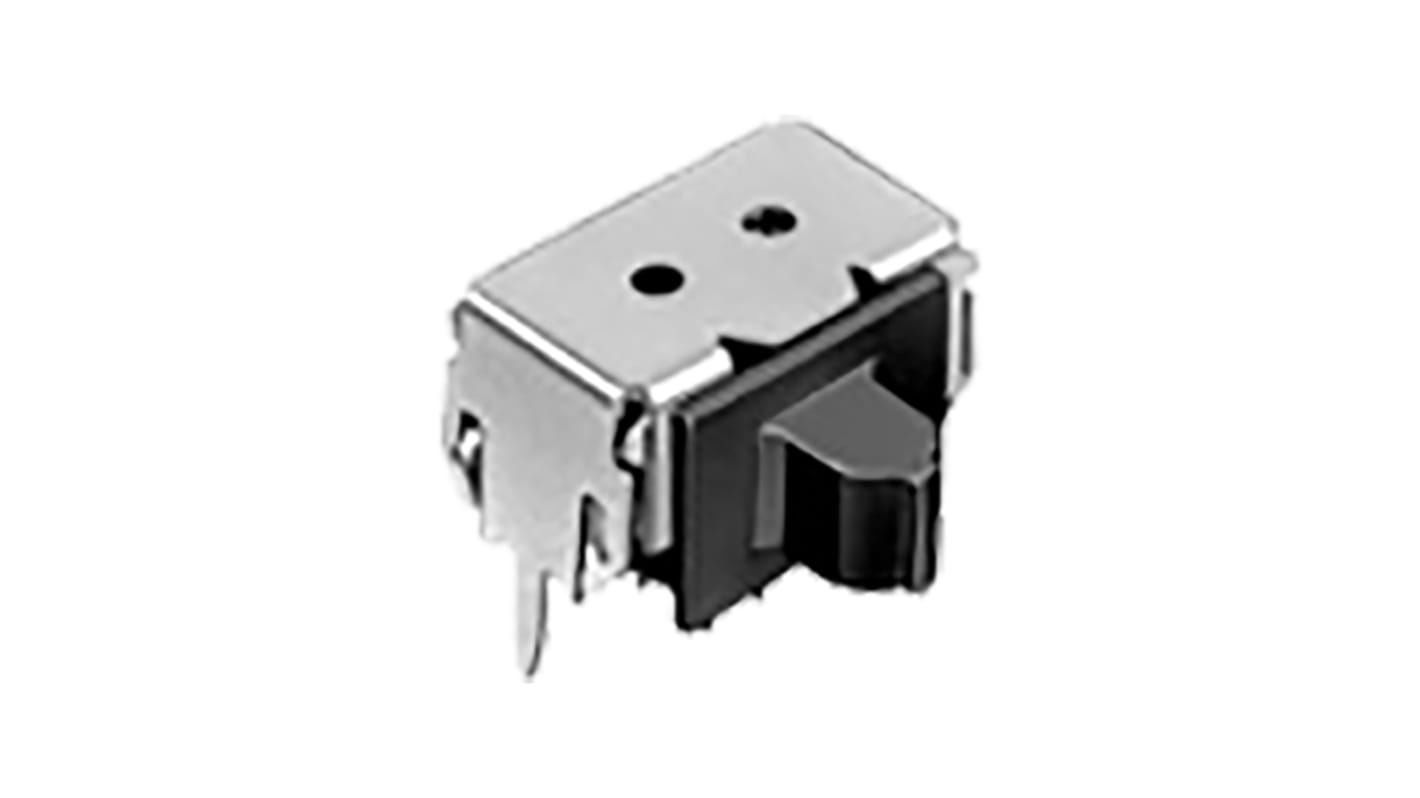

Through Hole Slide Switch Double Pole Double Throw (DPDT) Latching 1 mA Knob

  • RS Stock No. 123-8890
  • Mfr. Part No. SSAC120100
  • Brand Alps Alpine
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Alps SSAC Series Slide Switch

Alps SSAC horizontal type slide switch is a reliable and robust slide switch with 1.5 mm travel. The SSAC series can be easily mounted via a press-in and solder method, making the series a simple installation option.


Features and Benefits

1.5 mm travel.
4.4 mm horizontal actuator length.
Mean time before failure (MTBF) 10,000 cycles.

Specifications
Attribute Value
Contact Configuration Double Pole Double Throw (DPDT)
Mounting Type Through Hole
Switch Operation Latching
Contact Current Rating 1 mA
Terminal Type Solder
Actuator Type Knob
Length 9.5mm
Width 9.9mm
Depth 5mm
Dimensions 9.5 x 9.9 x 5mm
Contact Resistance 100 (Initial) mΩ, 200 (After Lifetime) mΩ
Voltage Rating 5V dc
Minimum Operating Temperature -10°C
Operating Temperature Range -10 → +60°C
Maximum Operating Temperature +60°C
Available to back order for despatch 11/03/2020, delivery within 5 working days
Price Each (In a Pack of 5)
£ 0.72
(exc. VAT)
£ 0.86
(inc. VAT)
Units
Per unit
Per Pack*
5 - 20
£0.72
£3.60
25 - 45
£0.684
£3.42
50 - 95
£0.648
£3.24
100 - 245
£0.604
£3.02
250 +
£0.568
£2.84
*price indicative
