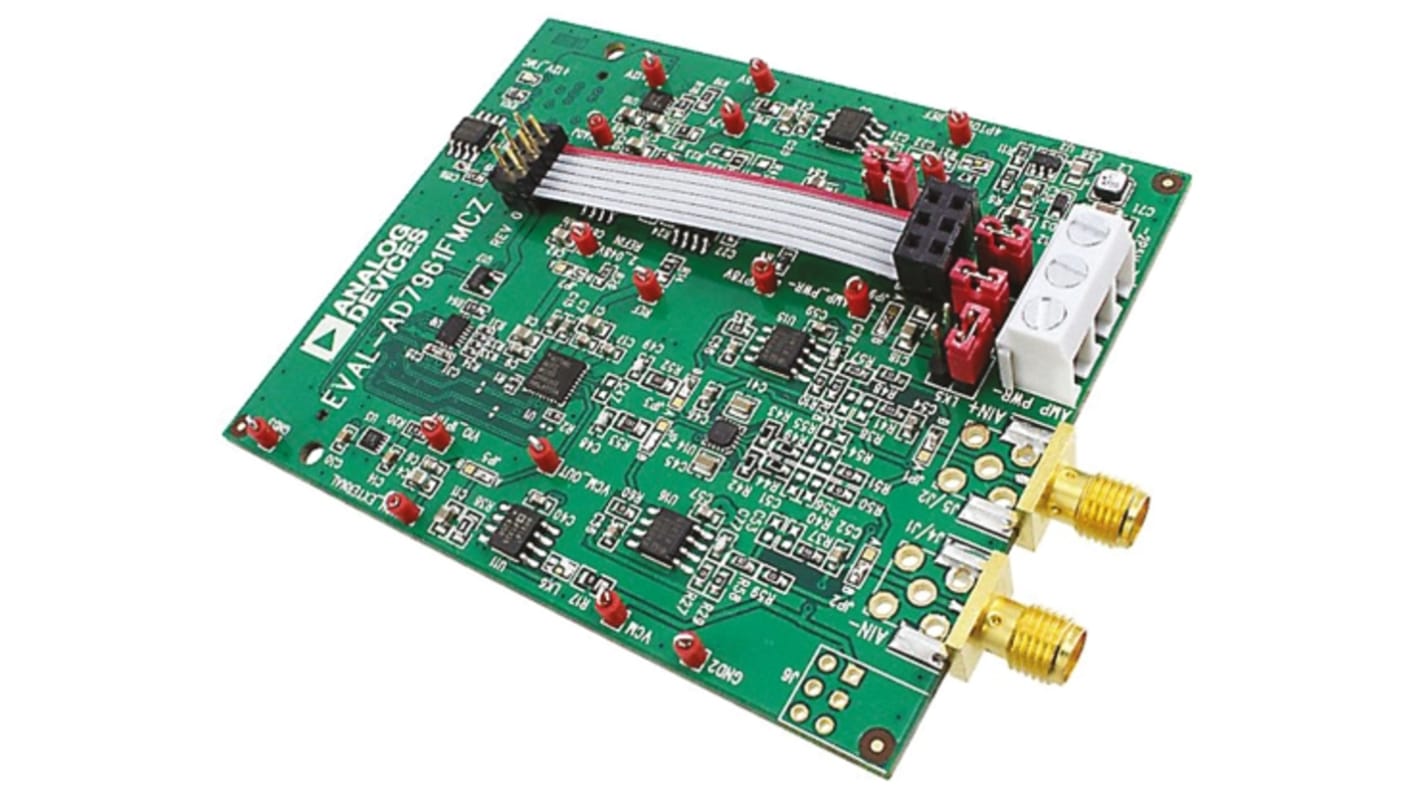

Analog Devices EVAL-AD7961FMCZ Evaluation Board Signal Conversion Development Kit
- RS Stock No.:
- 798-9852
- Mfr. Part No.:
- EVAL-AD7961FMCZ
- Brand:
- Analog Devices
Discontinued product
- RS Stock No.:
- 798-9852
- Mfr. Part No.:
- EVAL-AD7961FMCZ
- Brand:
- Analog Devices
Legislation and Compliance
Product Details
Evaluation Kit for ADC AD7961 16-Bit PulSAR Differential ADC
Analog Devices EVAL-AD7961FMCZ evaluation Kit is designed to show the performance of the low power 16-bit,5 MSPS PulSAR® Differential ADC AD7961. This board operates in combination with the System Demonstration Platform (SDP) board, EVAL-SDP-CH1Z . The evaluation software is provided to perform detailed analysis of the AD7961's performance.
Full-featured evaluation board for the AD7961
Versatile analog signal conditioning circuitry
On-board reference, reference buffers, and ADC drivers
System demonstration board compatible (EVAL-SDP-CH1Z)
PC software for control and data analysis of time and frequency domain
Versatile analog signal conditioning circuitry
On-board reference, reference buffers, and ADC drivers
System demonstration board compatible (EVAL-SDP-CH1Z)
PC software for control and data analysis of time and frequency domain
Contents
EVAL-AD7961FMCZ evaluation board
ADC Evaluation Boards and Development Kits, Analog
Specifications
Attribute | Value |
|---|---|
| Featured Device | AD7961 |
| Converter Type | ADC |
| Resolution | 16-bit |
| Kit Classification | Evaluation Board |
