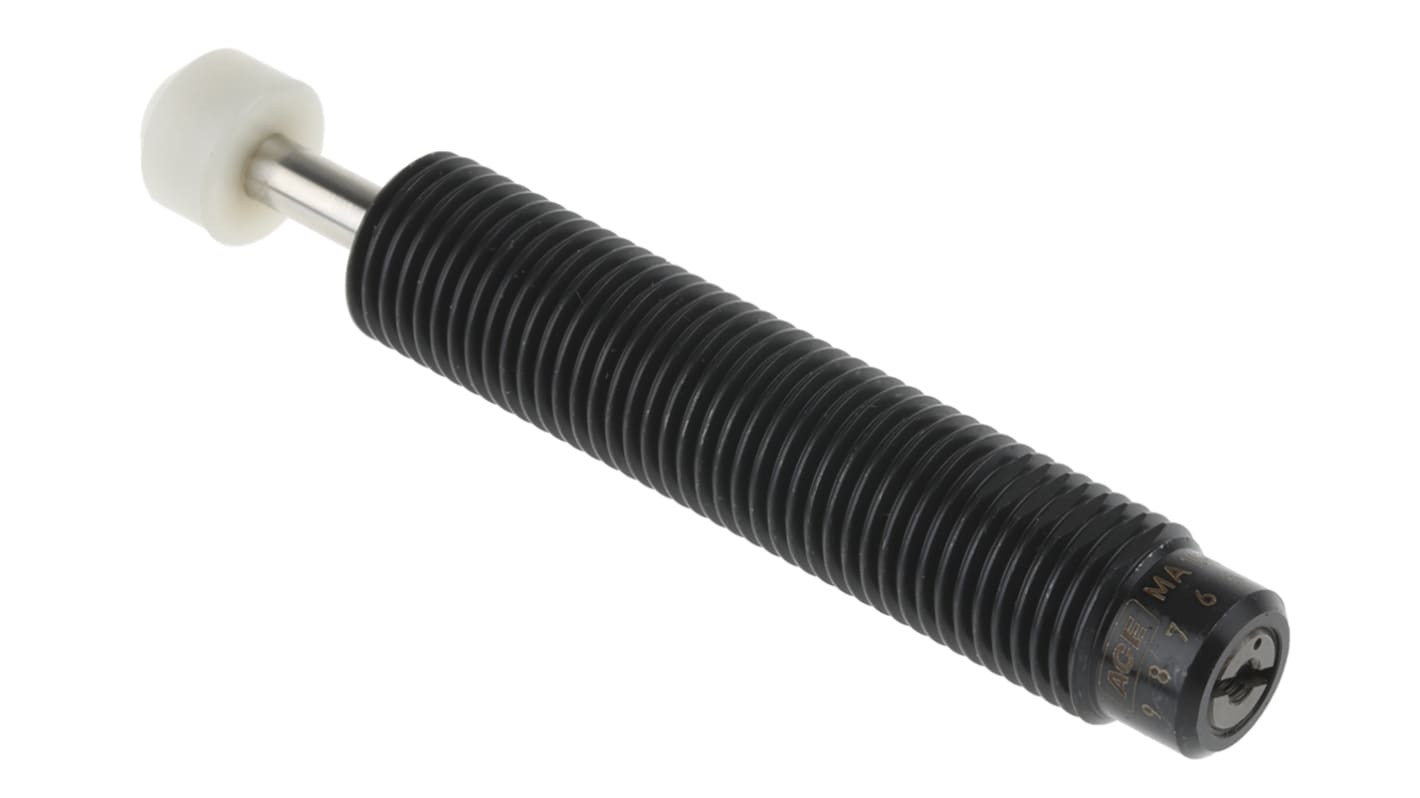

ACE Mini Shock Absorber MA 150 M-B

  • RS Stock No. 366-3345
  • Mfr. Part No. MA 150 M-B
  • Brand ACE
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): US
Product Details

Miniature Type MA

Ace miniature shock absorbers require no maintenance and are self contained. The MA series of miniature shock absorbers have long stroke lengths which means that there is a smooth deceleration. Optimal deceleration can be achieved by turning the adjustment knob. MA shock absorbers are made with a steel body with a black oxide finish and the piston rod is made from stainless steel.

Handles effective weights from 0.9kg to 2040kg
Locking, calibrated adjustment facility
Integral positive stop
Includes lockout and button
Steel body with Weartec – Plus (harsh environment) finish
Hardened stainless steel piston rod
Universal mounting and stop collar attachments available separately

//media.rs-online.com/t_line/L834229-07.gif
//media.rs-online.com/t_line/L834241-02.gif
//media.rs-online.com/t_line/LD834241-02.gif
//media.rs-online.com/t_line/LE834241-11.gif
//media.rs-online.com/t_line/LF834241-99.gif
//media.rs-online.com/t_line/LI834241-02.gif
Specifications
Attribute Value
Manufacturer Series MA
Body Length 70mm
Overall Length 92.5mm
Connection Type M14 x 1.5
Maximum Energy Capacity Per Hour 35000Nm
Maximum Energy Capacity Per Cycle 17Nm
Return Force 3 → 5N
Minimum Operating Temperature 0°C
Minimum Return Force 3N
Maximum Operating Temperature +65°C
Maximum Return Force 5N
40 In stock for FREE next working day delivery
Price Each
£ 72.57
(exc. VAT)
£ 87.08
(inc. VAT)
Units
Per unit
1 - 4
£72.57
5 - 9
£70.37
10 +
£68.09
