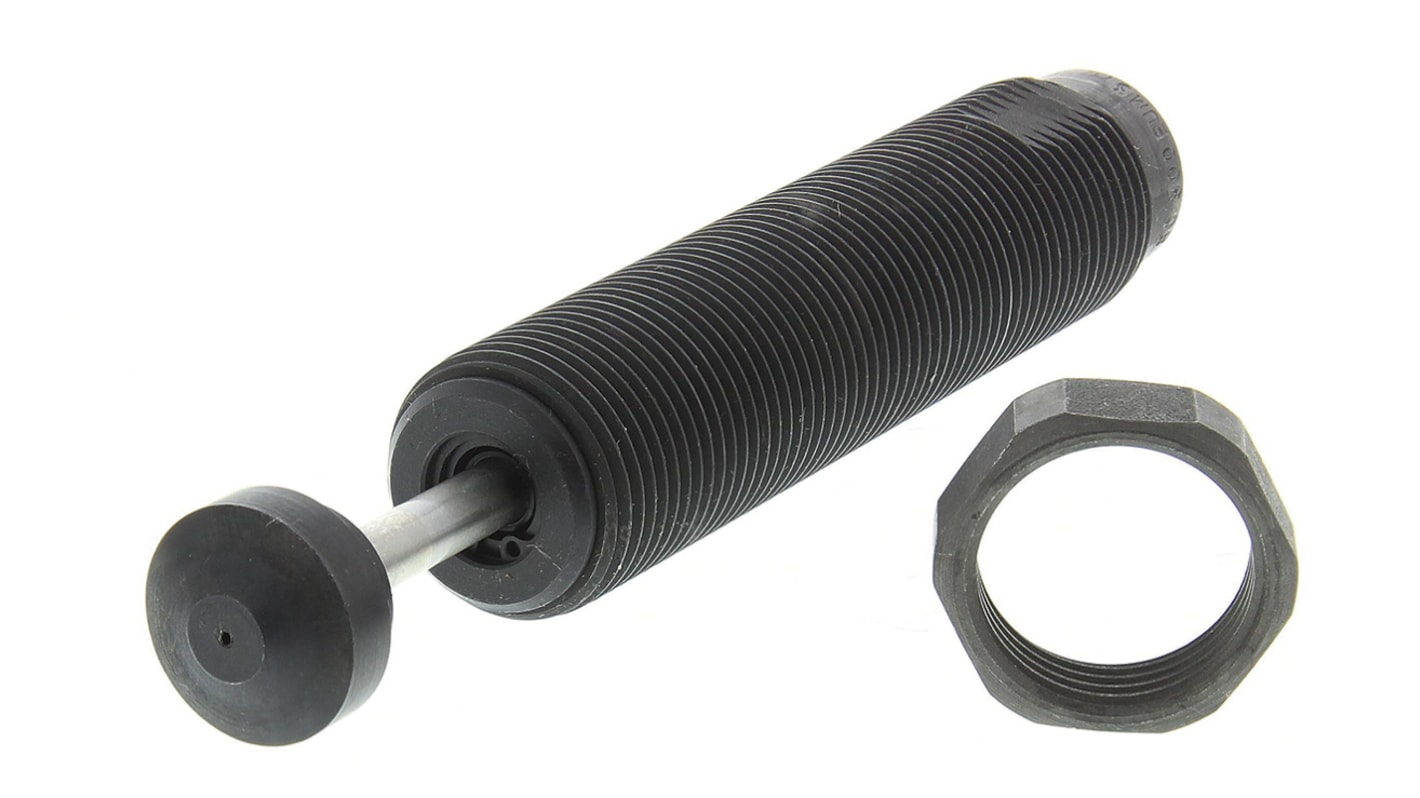

ACE Shock Absorber SC 300 M-3

  • RS Stock No. 268-0642
  • Mfr. Part No. SC 300 M-3
  • Brand ACE
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): US
Product Details

ACE Self Compensating, Soft Contact, SC2 Shock Absorber

Handles effective weights from 1.4kg to 2088kg
Integral mechanical stop in front end of unit
Ideally suited to applications requiring low initial impact reaction forces
Operating temperature range 0°C to +66°C
Impact velocity range 0.15m/s to 3.7m/s
Interchangeable with MA series adjustable range

//media.rs-online.com/t_line/L268059-02.gif
//media.rs-online.com/t_line/L834229-07.gif
//media.rs-online.com/t_line/LD268059-06.gif
//media.rs-online.com/t_line/LE268059-02.gif
//media.rs-online.com/t_line/LF268059-10.gif

Self Compensating

These shock absorbers have a steel body with Weartec - Plus (harsh environment) finish, hardened stainless steel piston rod, locknut and hardened steel rod end button with insert for noise suppression. Universal mounting and stop collar attachments are available separately.

Specifications
Attribute Value
Manufacturer Series SC
Body Length 87.4mm
Overall Length 117.4mm
Connection Type M20 x 1.5
Maximum Energy Capacity Per Hour 45000Nm
Maximum Energy Capacity Per Cycle 33Nm
Return Force 5 → 10N
Minimum Operating Temperature 0°C
Minimum Return Force 5N
Maximum Operating Temperature +66°C
Maximum Return Force 10N
21 In stock for FREE next working day delivery
Price Each
£ 68.37
(exc. VAT)
£ 82.04
(inc. VAT)
Units
Per unit
1 - 4
£68.37
5 - 9
£66.29
10 +
£64.16
