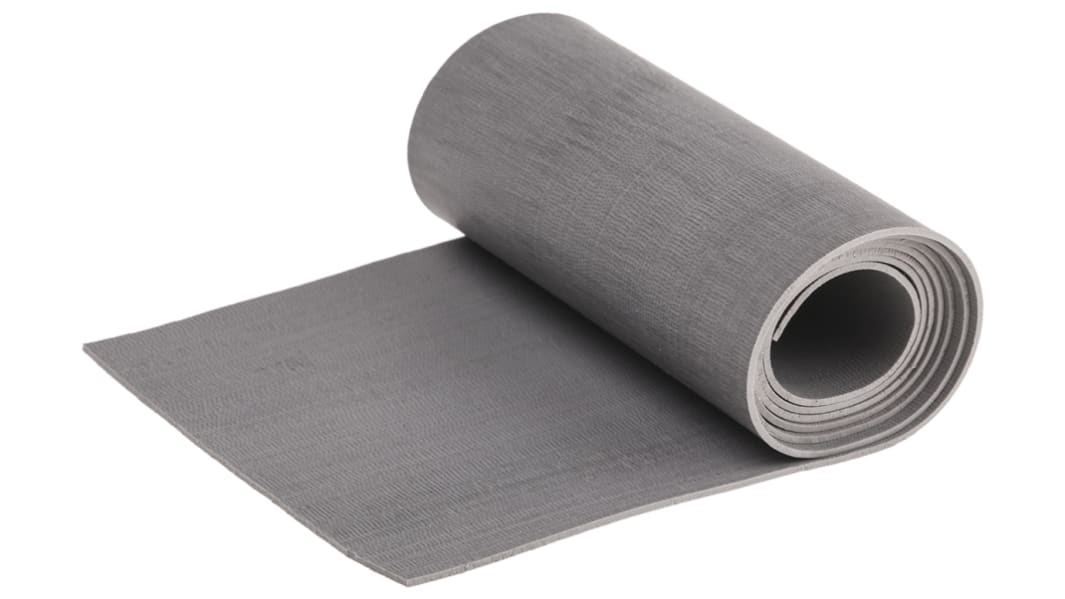

UVOX silicone Shielding Sheet, 900mm x 100mm x 1.5mm

  • RS Stock No. 772-0293
  • Mfr. Part No. WIS-1-1-015-100-NA
  • Brand UVOX
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Wires Embedded in Silicone

A flat gasket material manufactured from Monel wires chemically bonded in a silicone elastomer perpendicular to its surface at a density of 140 point contacts per cm2.
This combination provides excellent electromagnetic attenuation through the low resistance, point to point wire contacts
Custom gaskets can easily be made by cutting with a blade
Environmental sealing up to IP65
Service temperature range -65°C to +200°C

Note

Gasket material suitable for use in applications requiring conformance with the Electromagnetic Compatibility Directive (EC Directive 89/336/EC)

Specifications
Attribute Value
Material Silicone
Thickness 1.5mm
Length 900mm
Width 100mm
Maximum Operating Temperature +200°C
20 In stock - FREE next working day delivery available
Price Each
£ 26.74
(exc. VAT)
£ 32.09
(inc. VAT)
Units
Per unit
1 - 9
£26.74
10 - 24
£24.52
25 - 49
£22.98
50 - 99
£21.96
100 +
£21.01
