RS PRO Shaft Collar One Piece Set Screw, Bore 25mm, OD 40mm, W 16mm, Stainless Steel
- RS Stock No.:
- 122-3460
- Brand:
- RS PRO
Sorry, we couldn't check our stock levels right now. Please try refreshing the page.
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£10.19
(exc. VAT)
£12.23
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £10.19 |
| 5 - 9 | £9.98 |
| 10 - 24 | £9.79 |
| 25 + | £9.57 |
- RS Stock No.:
- 122-3460
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

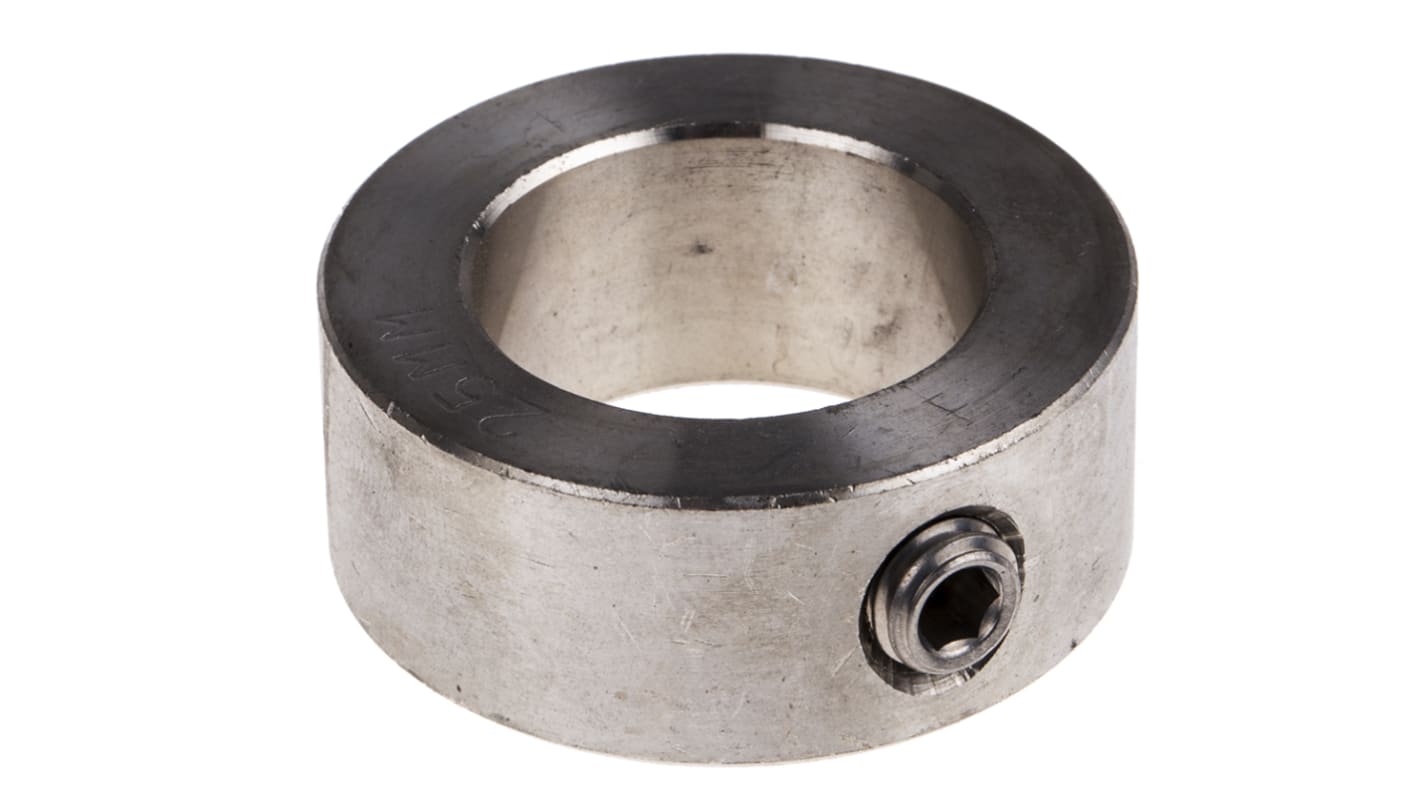

RS PRO Collar One Piece Screw, Bore 25 mm, OD 40 mm, W 16 mm, Stainless Steel
This RS PRO shaft collar is ideal for keeping shaft bearings in place. As it can withstand both radial and axial loads, it's a versatile option.
The collar is made of durable 304-grade stainless steel, which makes it resistant to impact and corrosion. This means it can withstand demanding industrial applications. The collar is held in place using the provided grub screw, making installation and removal simple.
This component has been engineer-tested for safety and reliability. You can use this type of collar in agricultural and automotive applications such as positioning shafts, locating bearings and separating components.
The collar is made of durable 304-grade stainless steel, which makes it resistant to impact and corrosion. This means it can withstand demanding industrial applications. The collar is held in place using the provided grub screw, making installation and removal simple.
This component has been engineer-tested for safety and reliability. You can use this type of collar in agricultural and automotive applications such as positioning shafts, locating bearings and separating components.
Features and Benefits
- Screw fastening
- Corrosion-resistant finish
- Stainless steel material
- One piece
- Outside diameter of 40 mm
- Shaft diameter of 25 mm
- Single wide
- M8 x 25 threaded bore size
- Width of 16 mm
Specifications
Attribute | Value |
|---|---|
| Shaft Diameter | 25mm |
| One/Two Piece | One Piece |
| Material | Stainless Steel |
| Single/Double Wide | Single |
| Outside Diameter | 40mm |
| Fastening | Set Screw |
| Threaded Bore Size | M8 |
| Width | 16mm |
| Finish | Corrosion Resistant |
