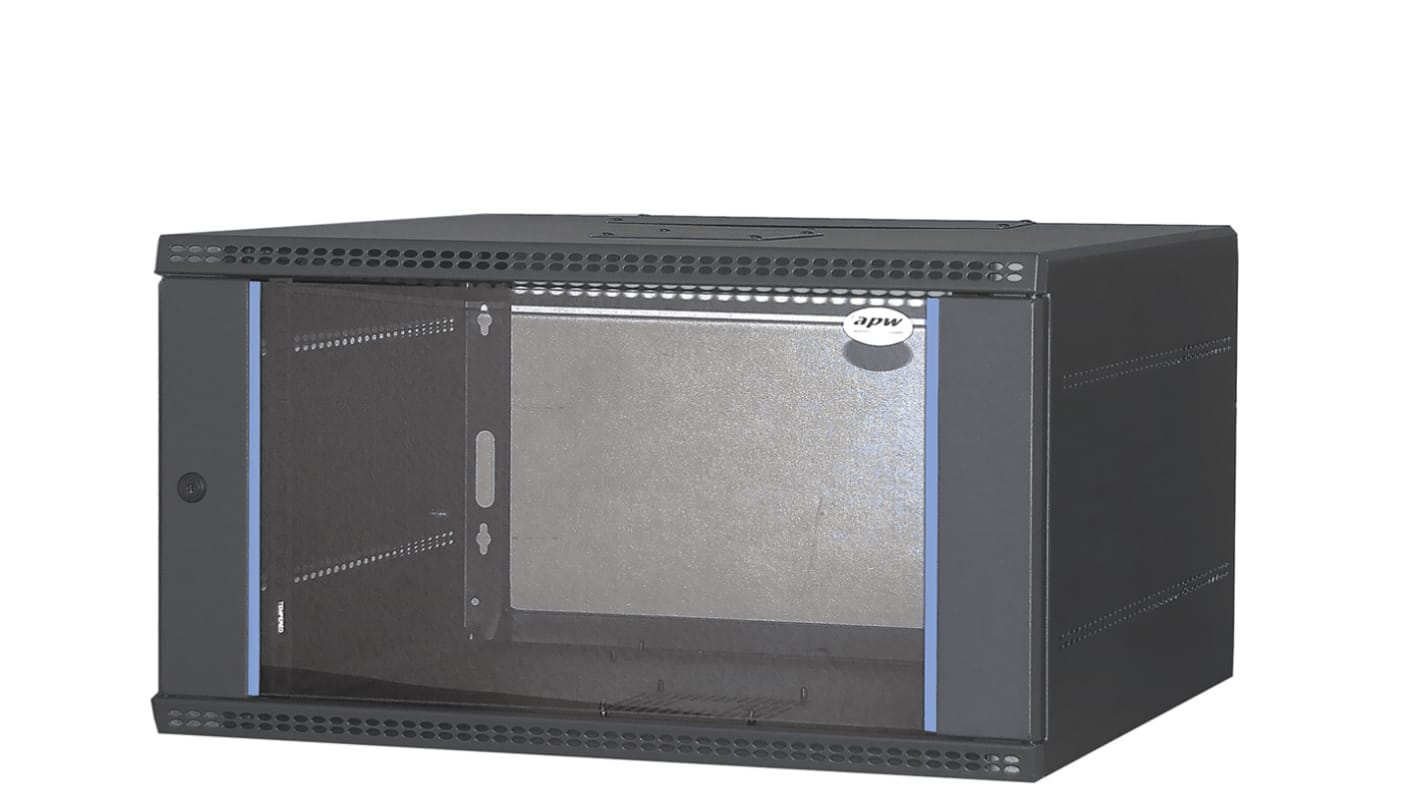

APW IMRAK 410 9U Server Cabinet 457 x 600 x 400mm

  • RS Stock No. 408-1659
  • Mfr. Part No. 968-362963
  • Brand APW
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

IMRAK® 410

The IMRACK® 410 is fully welded wall mounted enclosure designed as the best and most cost-effective solution to overcome the problems of overheating, damaged data cabling, stressed fibre and illegal tampering.

Inset mounting brackets provide cable management space in front and on both sides of the brackets
Quick cable access via clip-top and base gland plates
Lockable glass door with quick release reverse facility
Pre-punched fan patterns in top and base covered by clip-in blanks provide ventilation options
Fully welded frame is light but strong
Maximum Static Load 40kg
19" or vertically mounted power strips
Anthracite grey textured paint with trim appropriate to office environment
Materials: 0.9mm steel, 4mm toughened glass
Supplied fully assembled
Standards: IEC297-2; DIN 41 494 part 7; DIN 41 494 part 1 (mounting dimensions); EN 60950; VDE 0100
Width 600mm

*Please note the rear panel is bought seperately.

//media.rs-online.com/t_line/LD246789-01.gif

APW IMRAK Series Wall Cabinets

Designed for installers of data and telecommunications equipment.

Specifications
Attribute Value
Rack Units 9U
Type Wall Mount
External Height 457 mm
External Width 600 mm
External Depth 400mm
External Dimensions 457 x 600 x 400mm
Series IMRAK 410
Colour Grey
External Case Material Glass, Steel
7 In stock for delivery within 2 working days
Price Each
£ 308.33
(exc. VAT)
£ 370.00
(inc. VAT)
Units
Per unit
1 +
£308.33
Not available for guaranteed pre 9am/10am delivery
