- RS Stock No.:
- 195-0676
- Mfr. Part No.:
- SEK-SHT31-Sensors
- Brand:
- Sensirion
4 In stock - FREE next working day delivery available
Added
Price Each
£32.89
(exc. VAT)
£39.47
(inc. VAT)
Units | Per unit |
1 - 1 | £32.89 |
2 - 4 | £32.00 |
5 - 9 | £31.16 |
10 - 24 | £30.36 |
25 + | £29.60 |
- RS Stock No.:
- 195-0676
- Mfr. Part No.:
- SEK-SHT31-Sensors
- Brand:
- Sensirion
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CH
Product Details
The SHT3x humidity sensor series consists of a low-cost version with the SHT30 humidity sensor, a standard version with the SHT31 humidity sensor, and a high-end version with the SHT35 humidity sensor. The SHT3x humidity sensor series combines multiple functions and various interfaces with a applications-friendly, very wide operating voltage range.
The SHT3x builds on a completely new and optimized CMOSens® chip, which allows for increased reliability and improved accuracy specifications. The SHT3x offers a range of new features, such as enhanced signal processing, two distinctive and user-selectable I2C addresses, an alert mode with programmable humidity and temperature limits, and communication speeds of up to 1 MHz.

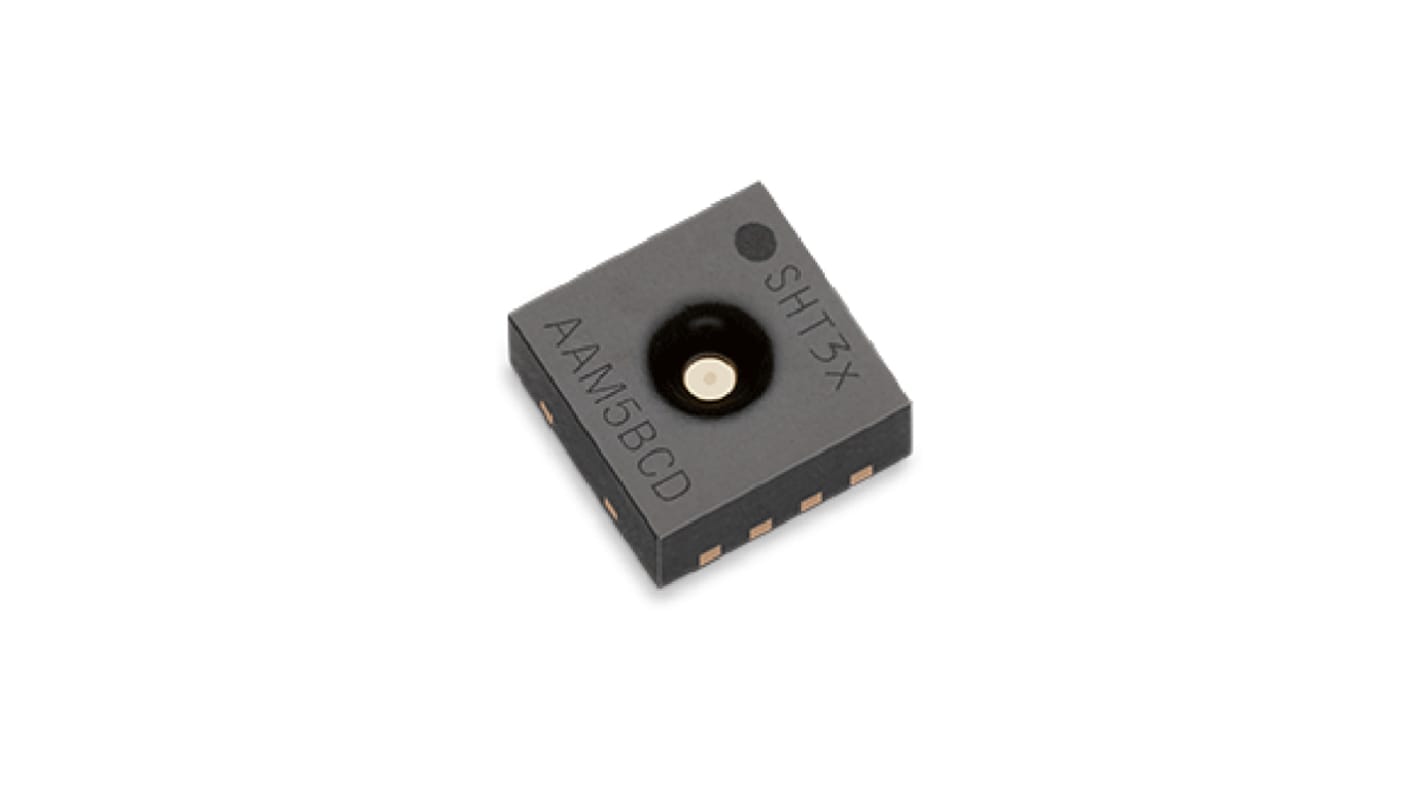

The DFN package has a footprint of 2.5 x 2.5 mm2 with a height of 0.9 mm. This allows for integration of the SHT3x into a great variety of applications. Additionally, the wide supply voltage range of 2.15 to 5.5 V and variety of available interfaces guarantee compatibility with diverse integration requirements.
The SHT3x builds on a completely new and optimized CMOSens® chip, which allows for increased reliability and improved accuracy specifications. The SHT3x offers a range of new features, such as enhanced signal processing, two distinctive and user-selectable I2C addresses, an alert mode with programmable humidity and temperature limits, and communication speeds of up to 1 MHz.
The DFN package has a footprint of 2.5 x 2.5 mm2 with a height of 0.9 mm. This allows for integration of the SHT3x into a great variety of applications. Additionally, the wide supply voltage range of 2.15 to 5.5 V and variety of available interfaces guarantee compatibility with diverse integration requirements.
Specifications
Attribute | Value |
---|---|
Featured Device | SHT31 |
Kit Classification | Evaluation Kit |
Kit Name | Digital Humidity Sensor SHT31 and SEK |
