- RS Stock No.:
- 174-2520
- Mfr. Part No.:
- VCNL4040-SB
- Brand:
- Vishay
Available to back order for despatch 26/04/2024
Added
Price Each
£11.26
(exc. VAT)
£13.51
(inc. VAT)
Units | Per unit |
1 - 4 | £11.26 |
5 - 9 | £10.96 |
10 - 24 | £10.68 |
25 + | £10.41 |
- RS Stock No.:
- 174-2520
- Mfr. Part No.:
- VCNL4040-SB
- Brand:
- Vishay
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details

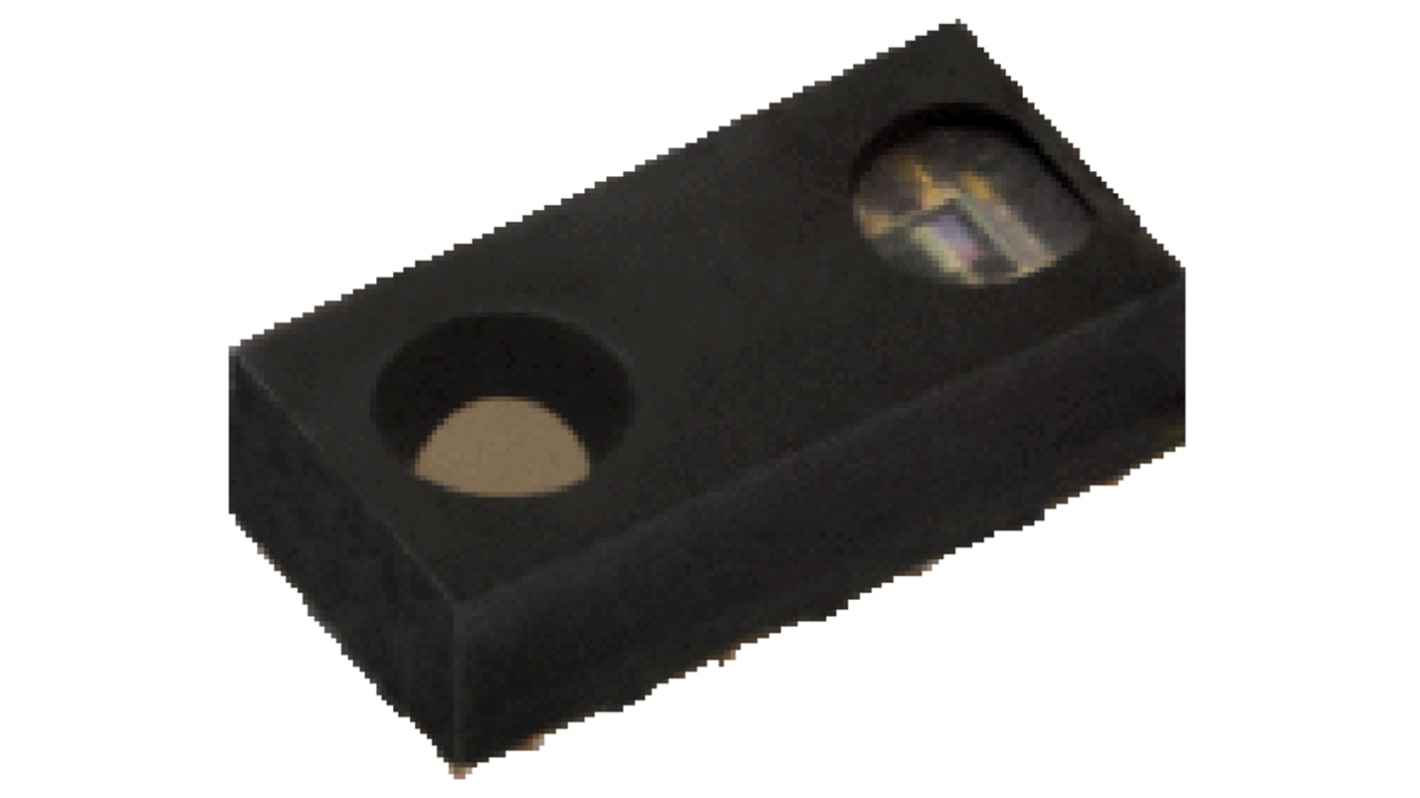

VCNL4040 integrates a proximity sensor (PS), ambient light sensor (ALS), and a high power IRED into one small package. It incorporates photodiodes, amplifiers, and analog to digital converting circuits into a single chip by CMOS process. The 16-bit high resolution ALS offers excellent sensing capabilities with sufficient selections to fulfill most applications whether dark or high transparency lens design. High and low interrupt thresholds can be programmed for both ALS and PS, allowing the component to use a minimal amount of the microcontrollers resources. The proximity sensor features an intelligent cancellation scheme, so that cross talk phenomenon is eliminated effectively.
Package type: surface mount
Dimensions (L x W x H in mm): 4.0 x 2.0 x 1.1
Integrated modules: infrared emitter (IRED), ambient light sensor (ALS), proximity sensor (PS), and signal conditioning IC
Operates ALS and PS in parallel structure
FiltronTM technology adoption for robust background light cancellation
Dimensions (L x W x H in mm): 4.0 x 2.0 x 1.1
Integrated modules: infrared emitter (IRED), ambient light sensor (ALS), proximity sensor (PS), and signal conditioning IC
Operates ALS and PS in parallel structure
FiltronTM technology adoption for robust background light cancellation
Specifications
Attribute | Value |
---|---|
For Use With | VCNL4040 Sensors |
Kit Classification | Sensor Board |
Kit Name | VCNL |
