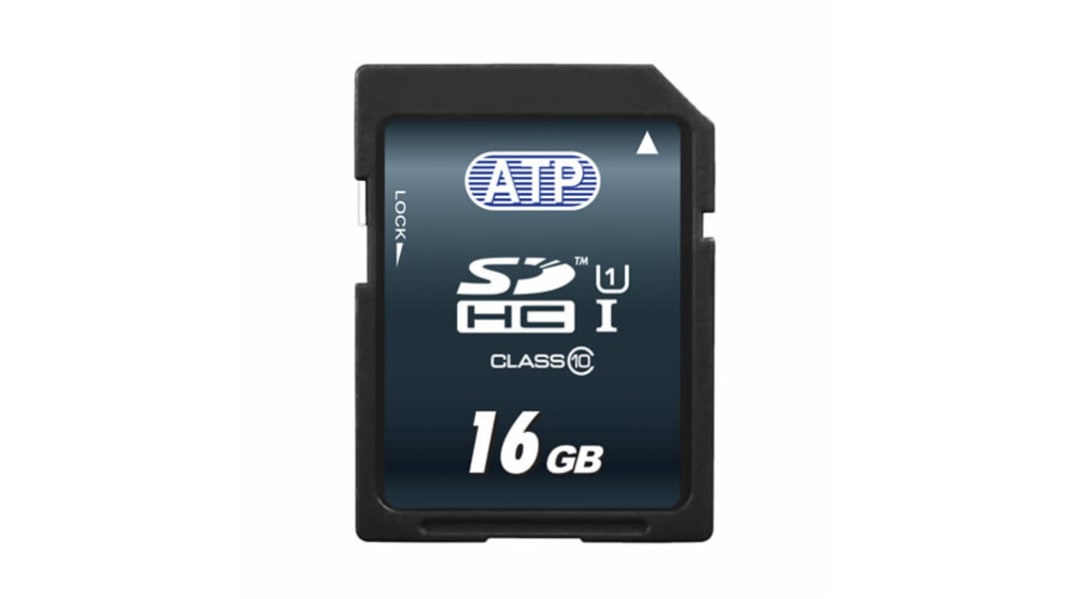

ATP 16 GB Industrial SDHC SD Card

  • RS Stock No. 183-9394
  • Mfr. Part No. AF16GSD3-WAEXM
  • Brand ATP
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

MLC (Multi-Level Cell / 2-bit per Cell) NAND Flash
Advanced Wear Leveling algorithm
Bad Block Management
Read Disturb Protector – AutoRefresh to ensure data integrity during read operation
Waterproof/dustproof
Highly reliable and pass environmental test (Bend/Torque/Salt Spray/Solar radiation)
ESD resistance
Life Monitor
Applications
Industrial PC
Medical devices
Automation
Automotive IVI systems
Test and Measurement
Surveillance systems
Drive recorders
Navigations
Network cameras
Mobile/Handheld computers

Specifications
Attribute Value
Card Format SDHC
Capacity 16 GB
Industrial Yes
Speed Class Rating Class 10, UHS-1 U1
Temperature Range -25 → +85°C
Nand Type MLC
Series S600Sc
