TE Connectivity AMPLIMITE .050 III Series, Female 68 Pin Straight Panel Mount SCSI Connector 1.27mm Pitch, Crimp, Quick

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

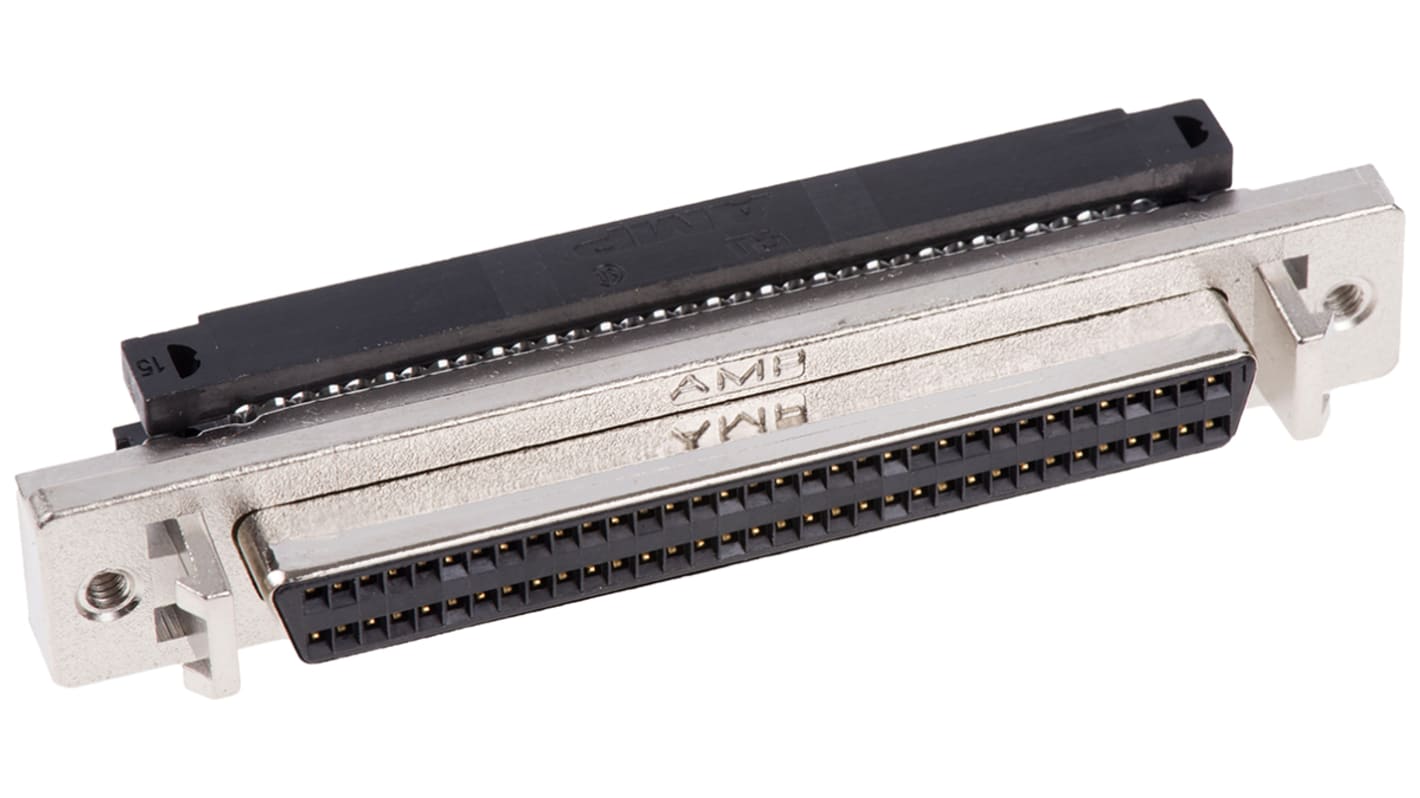

AMPLIMITE D-Sub Connector .050 Series III Panel Mount Receptacle Assembly

AMPLIMITE .050 Series III IDC panel mount d-sub receptacle assembly with a 1.27mm centreline, assembled standard termination cover, 4-40 (745-5286) or 2-56 (795-2282) threaded holes and latch blocks. The housing and termination cover of this AMPLIMITE .050 Series III IDC d-sub ribbon connector are made from black 94V-0 rated thermoplastic with a bright nickel over copper plated shell and a zinc bracket. This AMPLIMITE .050 Series III d-sub connector is preloaded with 0.00076 duplex gold plated contacts.

TE Connectivity AMPLIMITE D-Subminiature Connectors

Specifications
Attribute Value
Gender Female
Number of Contacts 68
Body Orientation Straight
Mounting Type Panel Mount
Contact Material Phosphor Bronze
Contact Plating Gold over Nickel
Housing Material Thermoplastic
Pitch 1.27mm
Current Rating 1A
Voltage Rating 30 V ac
Latch Type Quick Latch
Termination Method Crimp
Series AMPLIMITE .050 III
Length 63.88mm
Minimum Operating Temperature -55°C
Depth 15.14mm
Maximum Operating Temperature +105°C
Width 10.31mm
45 In stock for FREE next working day delivery
Price Each
£ 18.56
(exc. VAT)
£ 22.27
(inc. VAT)
Units
Per unit
1 - 9
£18.56
10 - 24
£15.78
25 - 49
£13.92
50 +
£12.06
