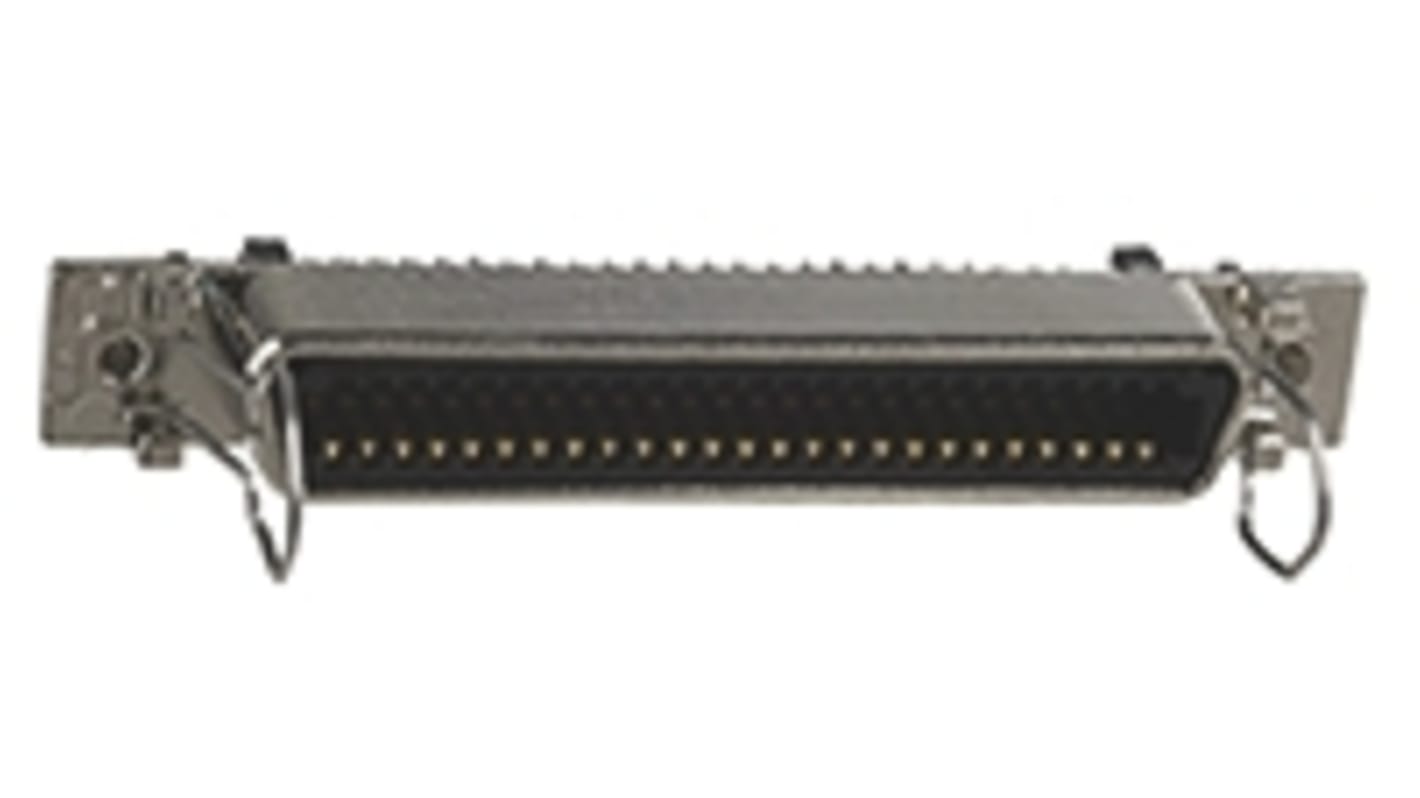

TE Connectivity 5554216 Series, Female 50 Pin Straight PCB Mount SCSI Connector 2.16mm Pitch, Solder, Bail Lock

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): MX
Product Details

2.16mm Centerline CHAMP Connectors

A range of TE Connectivity 2.16mm Centerline CHAMP PCB and Cable Mount Connectors.

Champ connectors

Specifications
Attribute Value
Gender Female
Number of Contacts 50
Body Orientation Straight
Mounting Type PCB Mount
Contact Material Phosphor Bronze
Contact Plating Gold over Palladium Nickel
Housing Material Thermoplastic
Pitch 2.16mm
Latch Type Bail Lock
Termination Method Solder
Series 5554216
Length 3.305in
Width 0.72in
Depth 0.62in
Available to back order for despatch 20/10/2020
Price Each (In a Tray of 45)
£ 6.62
(exc. VAT)
£ 7.94
(inc. VAT)
Units
Per unit
Per Tray*
45 +
£6.62
£297.90
*price indicative
