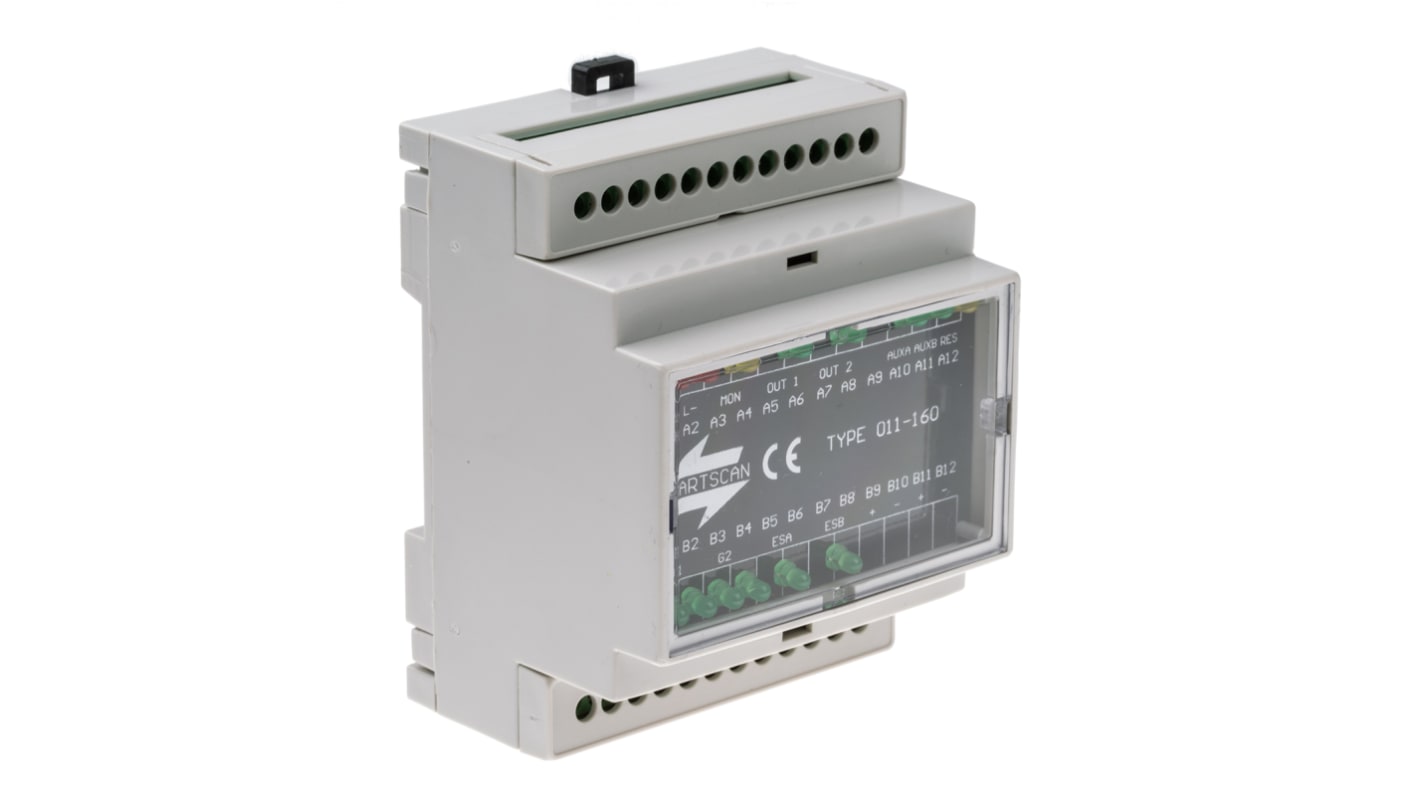

Smartscan MFU 24 V dc Safety Relay Dual Channel With 2 Safety Contacts

  • RS Stock No. 382-2055
  • Mfr. Part No. 011-160
  • Brand Smartscan
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): GB
Product Details

Standards

EN61496-1 Type 2, and IEC 61496-2-Type 2 and safety classification EN954-1 Category 3

Smartscan MFU Type 011160

The MFU Type 011160 from Smartscan offers you a reliable, smart and affordable safety relay. The type 011160 can be used in conjunction with the range of 1000 PLUS series safety light curtains with ease as they are highly compatible with each other.

What are some of the features?

Two dual safety inputs allowing you to connect up to 2 light curtains at any given time. A dual input is part of the functionality of the 011160, which allows you to connect your emergency stop circuits as part of your relay. Safety monitoring of the output relays is easily distinguishable as the easy to read LED indicators (see below for differences in indication statuses) allow you to track all the inputs and outputs. A reset function allowing you to manually override the relay whenever needed. External Device Monitoring (EDM) allowing you the ease of access to tracking any other devices on your relay DIN Rail mounting to an enclosure of 70mm Automatic self-testing will run routines to check its own functionality is working as intended. Simultaneous monitoring between all related channels in association with the relay

Safety indication status:

Inputs Green LED on = Input on Outputs Green LED on = Output on Reset Yellow LED on = Reset input on Reset Yellow LED on (Continuously) = Auto reset mode EDM Yellow LED on = EDM inputs on Status Red LEDs on (steady) = System ok Status Red LEDs on (flashing) = System lockout

Safety outputs:

2 x Fail-safe change over contacts, each with a 250V AC, 4A rating The multifunction safety relay unit 011149 has passed Type Examination from European Notified Body, SAFENET to the Machinery Directive. This type of certification should provide you with the assurance that this safety relay meets all the relevant safety regulations and requirements expected of such a type of product.

Warning

  • These devices must be installed and used in accordance with the installation and operating instructions supplied with each product
Specifications
Attribute Value
Supply Voltage 24 V dc
Number of Channels 2
Function Light Beam/Curtain
Safety Contacts 2
Reset Method Automatic
Width 70mm
Depth 60mm
Length 90mm
14 In stock for FREE next working day delivery
Price Each
£ 205.54
(exc. VAT)
£ 246.65
(inc. VAT)
Units
Per unit
1 +
£205.54
