IDEM 24 V ac/dc Safety Relay Dual Channel With 3 Safety Contacts - Viper Range and 1 Auxiliary Contact

  • RS Stock No. 123-2737
  • Mfr. Part No. 280002-P
  • Brand IDEM
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

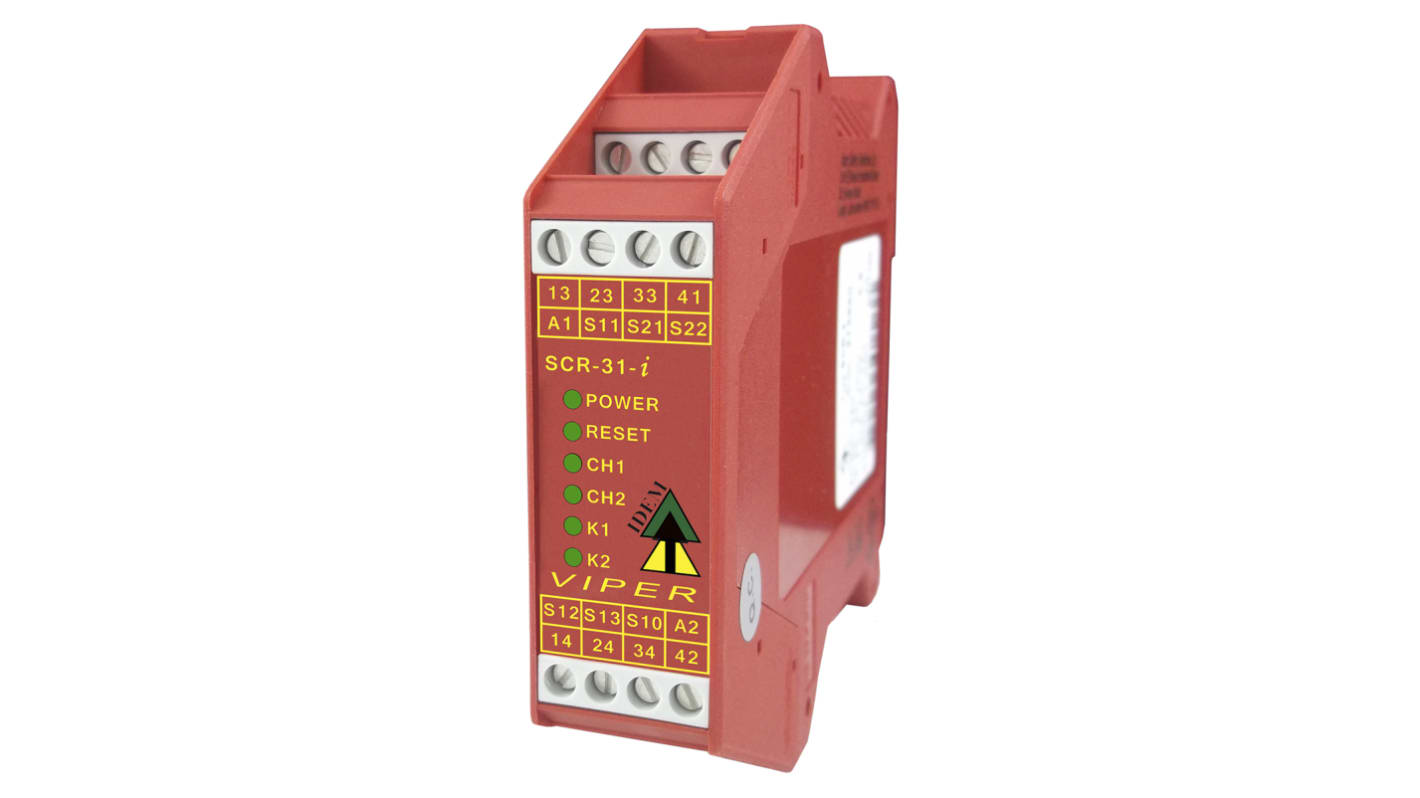

IDEM SCR-21/31/73-i VIPER Pluggable Safety Relay

Professional range of IDEM VIPER Safety Relays with pluggable terminals. The safety relays incorporate expansion units. The relays can be directly wired to increase the number of safety output contacts. Designed to meet the latest safety standard and offer enhanced LED diagnostics and simplified wiring. Typical applications include safety interlock switches and emergency e-stop devices door guard monitoring.

Single or Dual channel operation
Monitored Manual or Auto Start/Reset
LED Indication status
22.5 or 45 mm DIN Rail mounting

Specifications
Attribute Value
Supply Voltage 24 V ac/dc
Number of Channels 2
Auxiliary Contacts 1
Function Emergency Stop, Safety Switch/Interlock
Safety Contacts 3
Range Viper
Reset Method Automatic, Manual
Terminal Type Plug In
Standards Met CULus, EN 60204-1, EN 62061, EN ISO 12100, EN ISO 13849-1, EN ISO 13849-2, TUV, UL 508
Length 22.5mm
Depth 99mm
Width 114mm
1 In stock - FREE next working day delivery available
Price Each
£ 128.40
(exc. VAT)
£ 154.08
(inc. VAT)
Units
Per unit
1 +
£128.40
