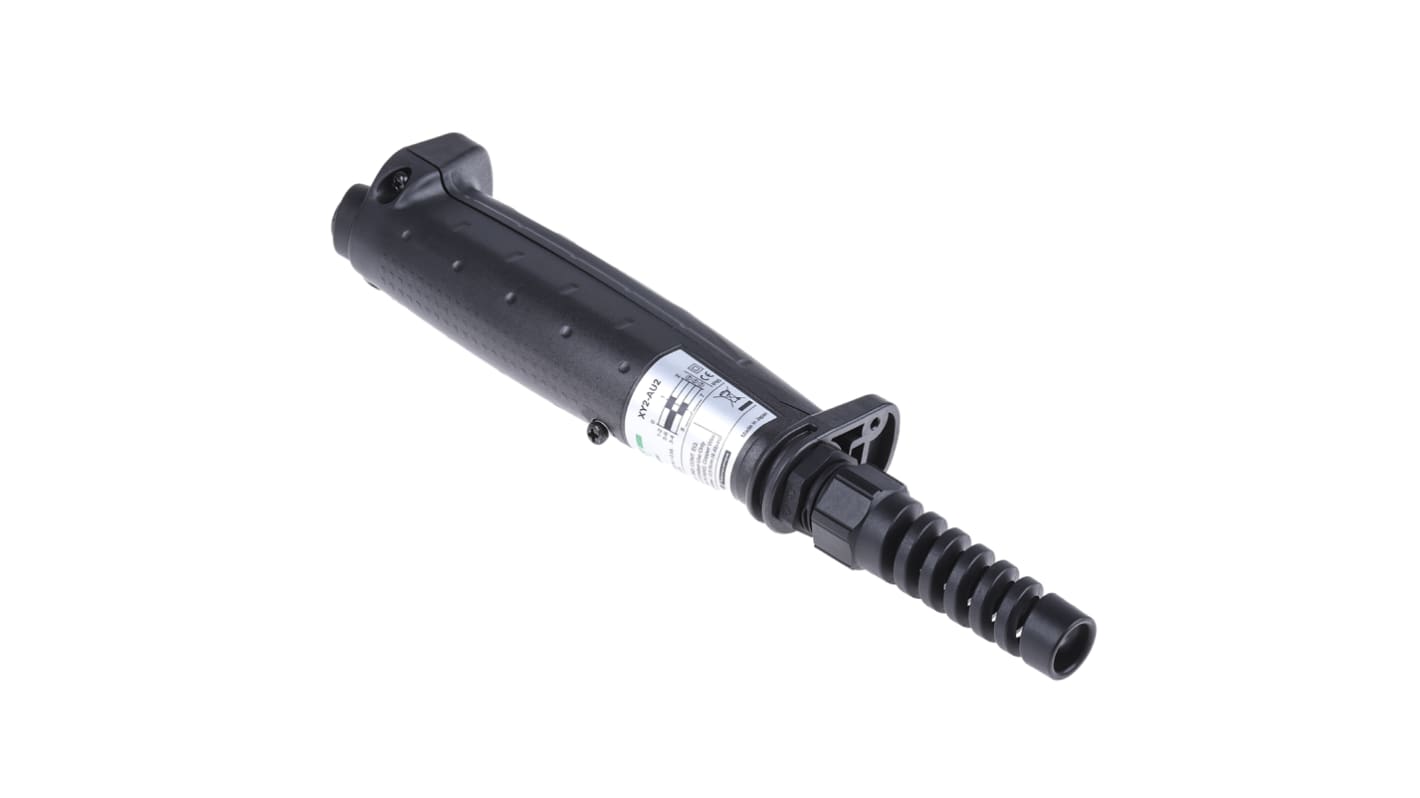

XY2 AU Series Safety Enabling Switch, 3 Position, IP65

Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Product Details

XY2 AU, Enabling Switch

XPS-VC switches XY2AU used in conjunction with the XPS-VC safety relay offer a certified safety solution ensuring the safety of machine operators during setting and maintenance operations
Use while carrying out adjustment of moving parts
Allows operators to enable start and stop instructions while movements are being performed at reduced speeds and in the event of immediate danger, to give an emergency stop instruction
Immediate stop (" Dead man" function) of the dangerous movement as soon as the enabling switch handle is released (this applies to machine without inertia: with immediate braking)
An emergency stop if the operator's grip tightens on the enabling switch handle
May be mounted on metal and plastic safety switches by fixing the operator key to the top of the enabling switch handle (switch stock numbers, 296-4669, 296-4675, operating key/actuator stock number 252-3870)
3 position, 2 contact positive acting switch
Safety category 4 solution in accordance with EN954-1
Ergonomic design

Standards

IEC 947-1; EN 60204-1; EN 292

Approvals

BG

Enabling Switch

Specifications
Attribute Value
Series XY2 AU
Number of Positions 3
IP Rating IP65
Housing Material Polyamide
Dimensions 267 x 46 x 58 mm
Depth 58mm
Length 261mm
Width 267mm
7 in stock for FREE next working day delivery
2 available from Europe for delivery within 1 working day(s)
Price Each
£ 310.00
(exc. VAT)
£ 372.00
(inc. VAT)
Units
Per unit
1 +
£310.00
