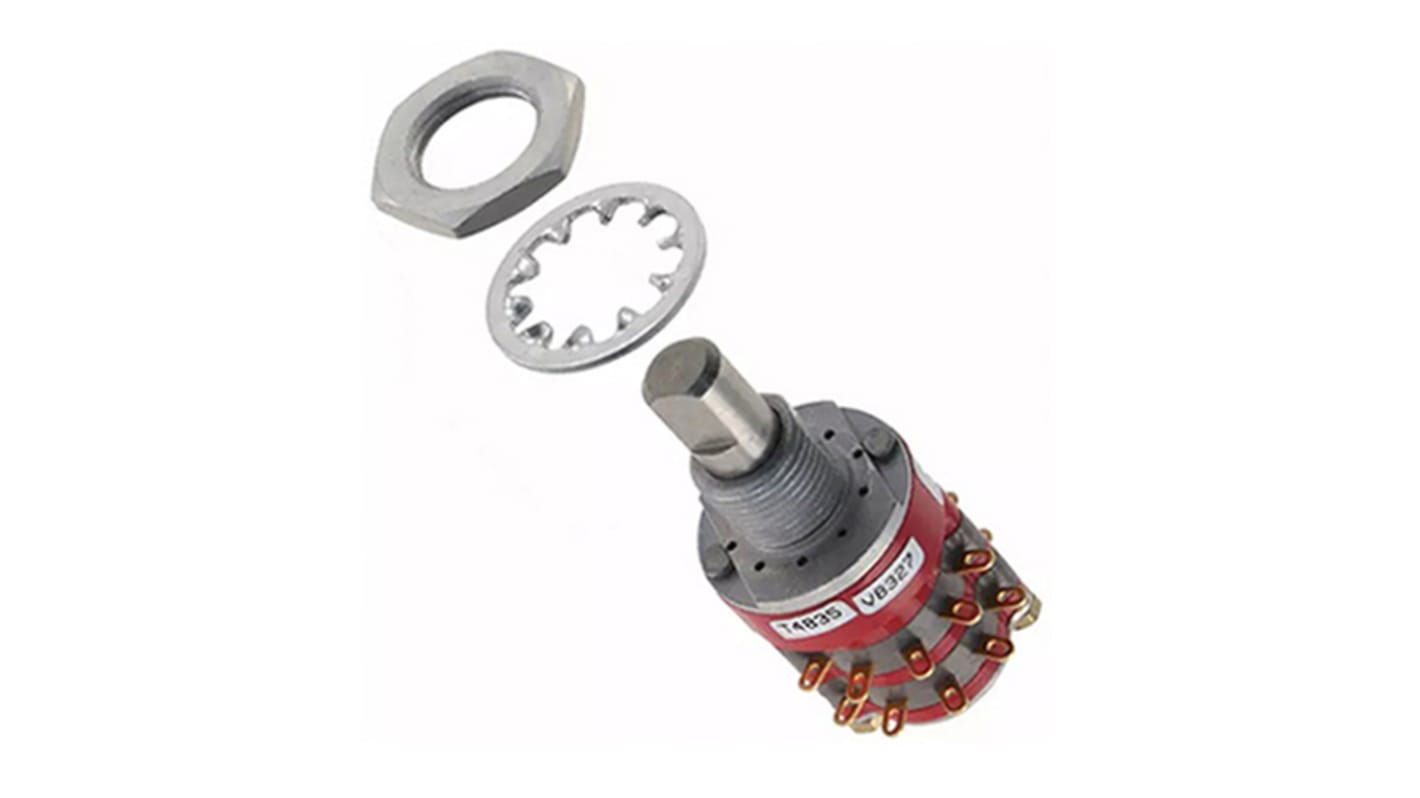

Grayhill Rotary Switch, Solder Lug

  • RS Stock No. 878-0218
  • Mfr. Part No. 71BD36-02-1-AJN
  • Brand Grayhill
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): US
Product Details

Grayhill 71 Series Multi-Deck Rotary Switches

The 71 series multi-deck rotary switches are designed to offer the end user a wide selection of options making them suitable to many possible applications. Options include panel or PCB mounting styles, 30° and 36° angle of throw, various shaft/bushing sizes and numerous pole configurations. They are also available in standard, military and metric versions.
Panel mount options have the terminals located at the rear of the switch in a rotary layout.
PCB mount options have all the terminals on wide side of the switch giving a much small board footprint.

Features:
Performance and Value Leader
Moulded-In Position Terminals
Choice of Shaft/Bushing Diameters
30° and 36° Angles of Throw
Terminals from One Side (PCB mount)
Rated for 0.25A circuits

Specifications
Attribute Value
Width 17.45mm
Dimensions 17.45 (Dia.) x 42.32mm
Terminal Type Solder Lug
Contact Type Non-Shorting
Actuator Colour Silver
Standards Met MIL-DTL-3786/39
Angle of Throw 36°
Available to back order for despatch 07/02/2020
Price Each
£ 20.57
(exc. VAT)
£ 24.68
(inc. VAT)
Units
Per unit
1 +
£20.57
