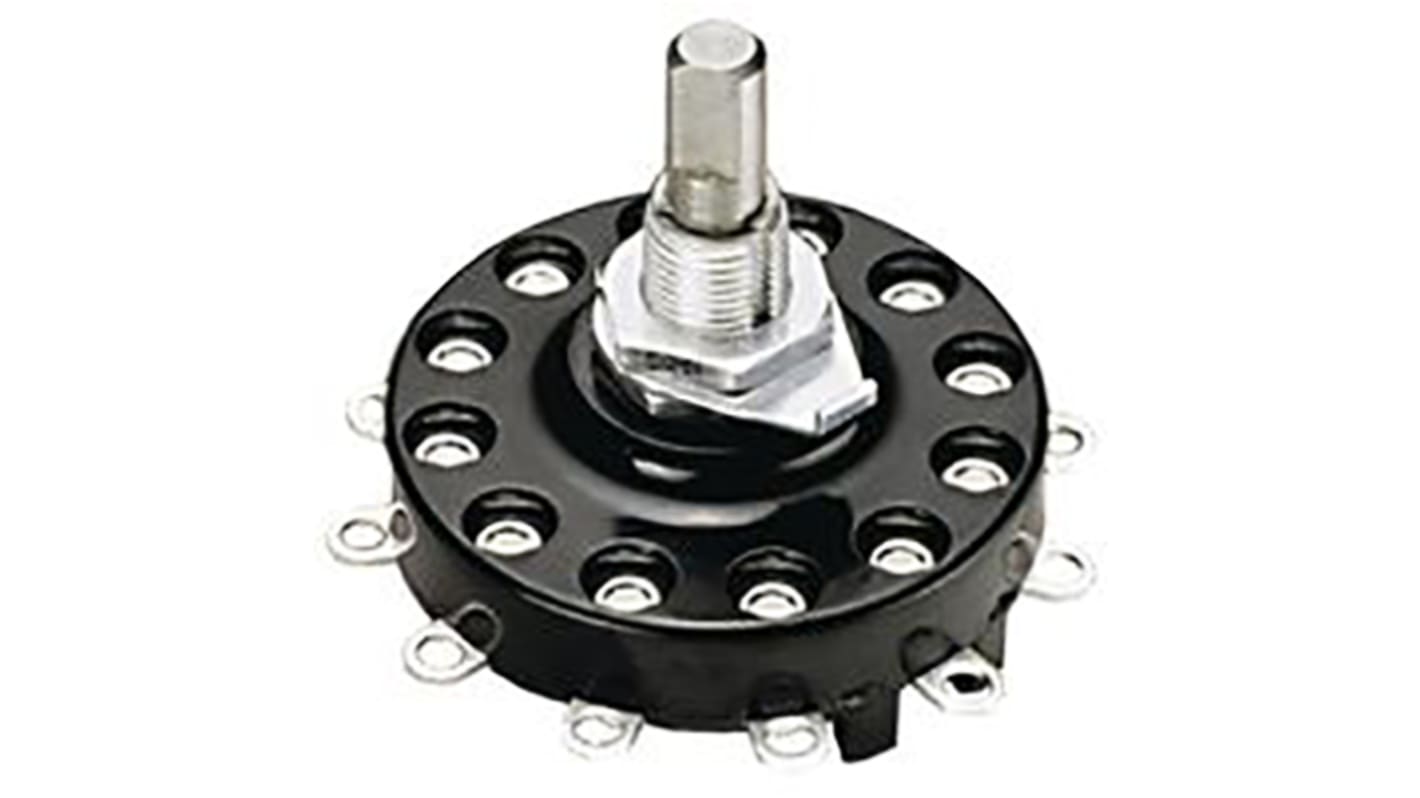

Grayhill, SP 6 Position 30° Rotary Switch, 120 V ac/dc, 1 A dc, 15 A ac, Shaft Actuator

  • RS Stock No. 877-9937
  • Mfr. Part No. 19001-06UL
  • Brand Grayhill
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): US
Product Details

Grayhill 19 Series Single Deck Rotary Switches

The 19 series rotary switches have a rugged construction and a low profile design. The depth behind the panel measurement is less than 25mm making them ideally suited for applications where there is not much space between the panel and an obstruction. They come standard with a non-turn washer ensuring a secure fit and reducing maintenance. Users can select from either solder lug or "Faston" terminals. Both of these versions have silver-plated brass terminals. These units are rated to 15 amps at 120 Vac (non-inductive) or 1 amp at 120 Vdc (non-inductive).

Features:
Rugged construction
Choice of termination
2" diameter
Low profile design

Standards

UL Recognised

Specifications
Attribute Value
Pole and Throw Configuration SP
Maximum Current 1 A dc, 15 A ac
Maximum Voltage 120 V ac/dc
Number of Positions 6
Terminal Type Solder Lug
Angle of Throw 30°
Length 46.36mm
Width 50.8 (Dia.)mm
Actuator Type Shaft
Dimensions 50.8 (Dia.) x 46.36 mm
Available to back order for despatch 13/03/2020
Price Each
£ 34.95
(exc. VAT)
£ 41.94
(inc. VAT)
Units
Per unit
1 +
£34.95
