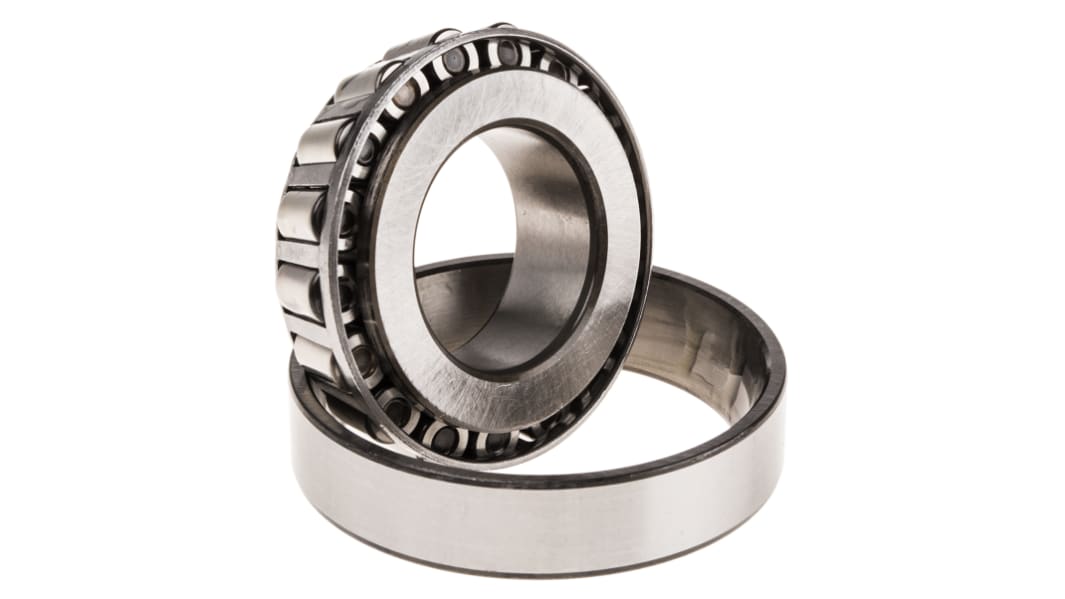

Taper Roller Bearing 30206 J2/Q, 30mm I.D, 62mm O.D

  • RS Stock No. 286-8319
  • Mfr. Part No. 30206 J2/Q
  • Brand SKF
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): IN
Product Details

Metric

Single-row taper roller bearings can only take axial loads in one direction. The forces generated in the bearing by radial loads, and the force acting axially, must be offset by an external counter force. This is why in practice single-row taper bearings are mounted against a second taper roller bearing.

Dimensions comply with data in DIN ISO 355 and DIN 720, 1979

//media.rs-online.com/t_line/LD286828-01.gif
//media.rs-online.com/t_line/LF286828-10.gif
Specifications
Attribute Value
Inside Diameter 30mm
Outside Diameter 62mm
Roller Bearing Type Taper
Race Width 17.25mm
Bore Type Tapered
Material Metal
Static Load Rating 44kN
Cage Material Steel
Number of Rows 1
Dynamic Load Rating 46.5kN
End Type Open
Reference Speed 9000rpm
Limiting Speed 11000rpm
Fatigue Limit Load 4.8kN
5 In stock for FREE next working day delivery
Price Each
£ 15.27
(exc. VAT)
£ 18.32
(inc. VAT)
Units
Per unit
1 - 4
£15.27
5 - 9
£14.66
10 - 24
£14.35
25 +
£14.05
