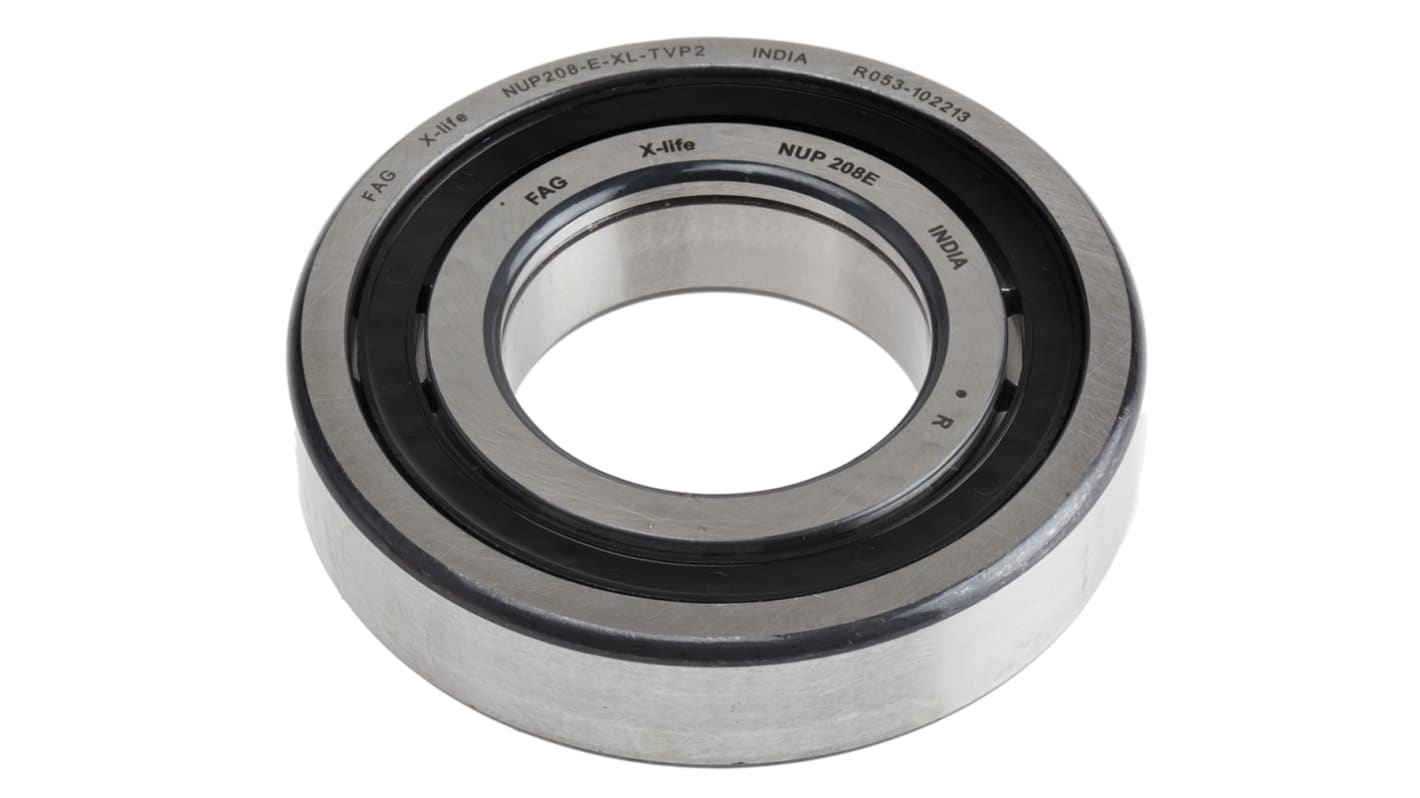

Cylindrical Roller Bearing NUP208-E-XL-TVP2, 40mm I.D, 80mm O.D

  • RS Stock No. 174-1327
  • Mfr. Part No. NUP208-E-XL-TVP2
  • Brand FAG
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Single row cylindrical roller bearings with cage are units comprising solid inner and outer rings together with cylindrical roller and cage assemblies. The outer rings have rigid ribs on both sides or no ribs, the inner rings have one or two rigid ribs or are designed without ribs. The cage prevents the cylindrical rollers from coming into contact with each other during rolling. The cage type bearings are very rigid, can support high radial loads and, due to the cage, are suitable for higher speeds than the full complement designs. Bearings with the suffix E have a higher capacity roller set and are thus designed for very high load carrying capacity. The bearings are separable and are therefore easier to fit and dismantle.

Non-locating bearings Axial displacement Semi-locating bearings Bearings with L-section ring Axial displacement Locating bearings Bearings with rib washer

Specifications
Attribute Value
Inside Diameter 40mm
Outside Diameter 80mm
Roller Bearing Type Cylindrical
Race Width 18mm
Bore Type Parallel
Static Load Rating 53000N
Number of Rows 1
Dynamic Load Rating 63000N
End Type Open
Reference Speed 7500rpm
Limiting Speed 10900rpm
Fatigue Limit Load 8400N
1 In stock for FREE next working day delivery
Price Each
£ 35.56
(exc. VAT)
£ 42.67
(inc. VAT)
Units
Per unit
1 +
£35.56
