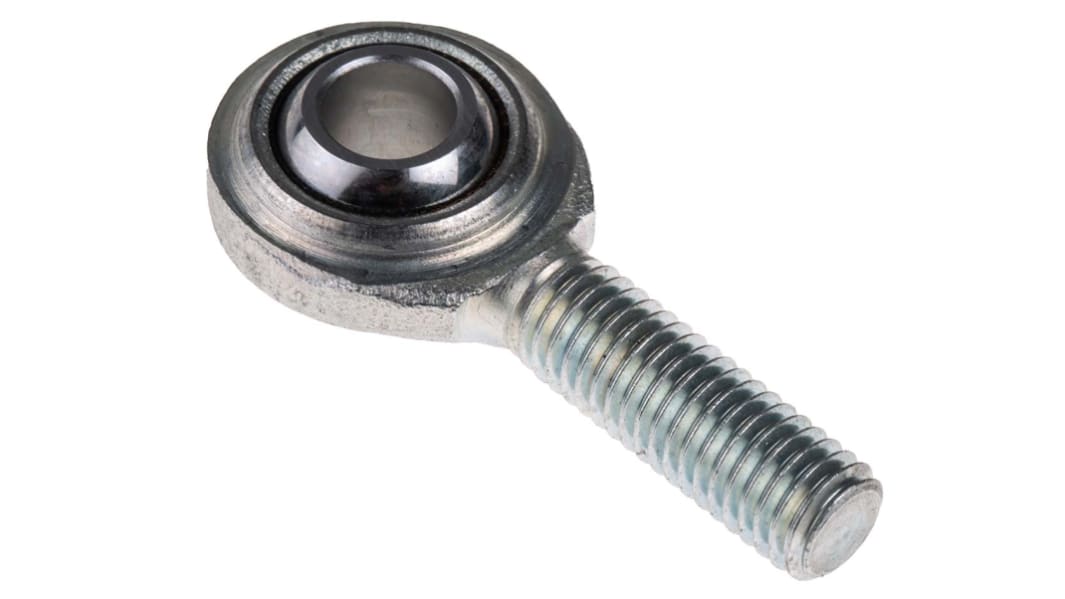

RS PRO M10 x 1.5 Male Steel Rod End, 10mm Bore Size, 61mm Long , M10 x 1.5 Thread Size, Metric Thread Standard Male

Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): JP
Product Details

Rod End - Male

Suitable for pneumatic cylinders and coupler mechanisms in the fields of printing and packing machines, filling plants, labelling machines and mechanical controls.

Maintenance free - do not require lubrication

Specifications
Attribute Value
Connection Size M10 x 1.5 Male
Bore Size 10mm
Dynamic Load Rating 20000N
Static Load Rating 10700N
Overall Length 61mm
Material Steel
Connection Thread Size M10 x 1.5
Connection Thread Standard Metric
Connection Gender Male
191 In stock - FREE next working day delivery available
Price Each
£ 13.39
(exc. VAT)
£ 16.07
(inc. VAT)
Units
Per unit
1 - 4
£13.39
5 - 9
£12.86
10 +
£12.59
