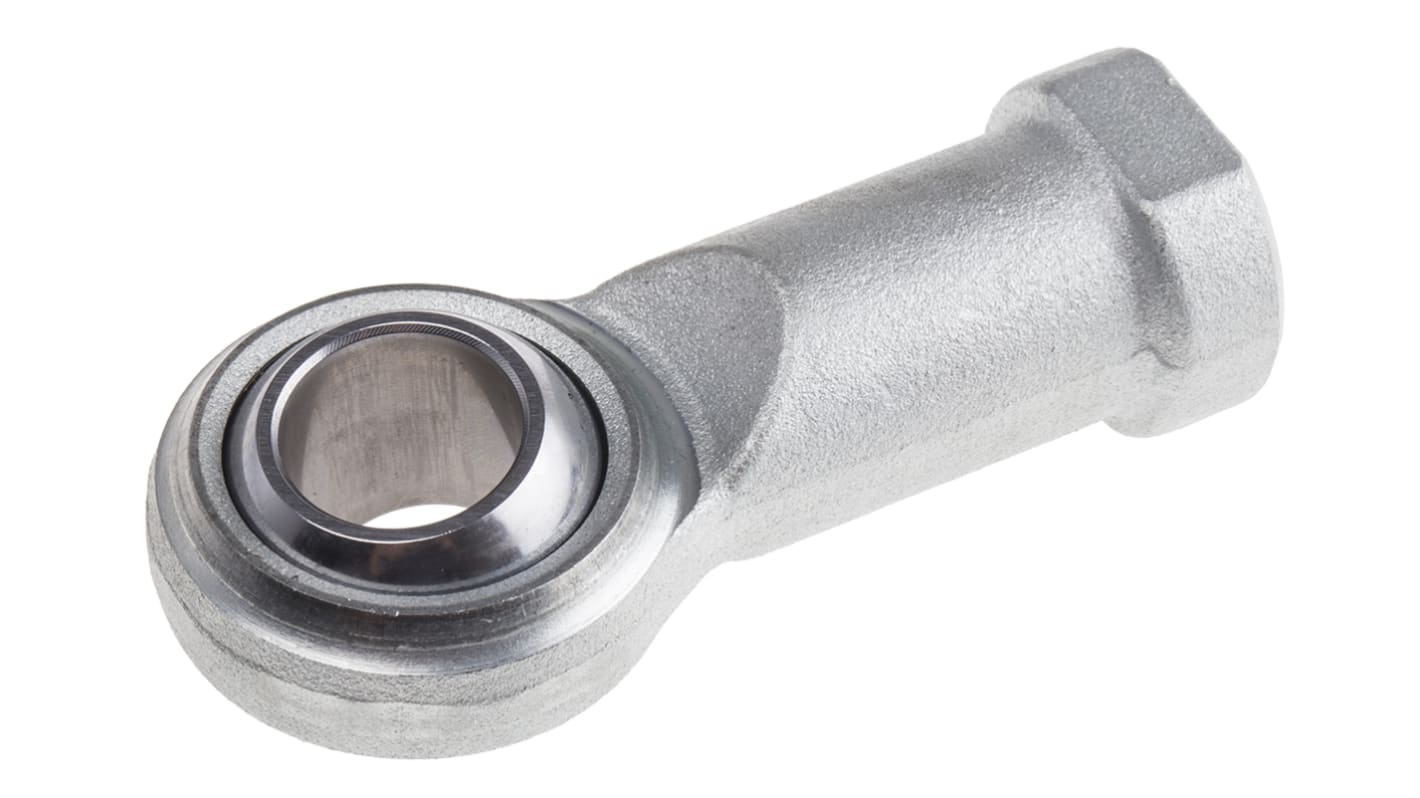

RS PRO M22 x 1.5 Female Steel Rod End, 22mm Bore, 109mm Long, Metric Thread Standard, Female Connection Gender
- RS Stock No.:
- 198-9049
- Brand:
- RS PRO
- RS Stock No.:
- 198-9049
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- JP
Product Details
Rod End - Female
Suitable for pneumatic cylinders and coupler mechanisms in the fields of printing and packing machines, filling plants, labelling machines and mechanical controls.
Maintenance free - do not require lubrication
Specifications
Attribute | Value |
---|---|
Connection Size | M22 x 1.5 Female |
Bore Size | 22mm |
Material | Steel |
Dynamic Load Rating | 76200N |
Static Load Rating | 37000N |
Overall Length | 109mm |
Connection Thread Standard | Metric |
Connection Gender | Female |
