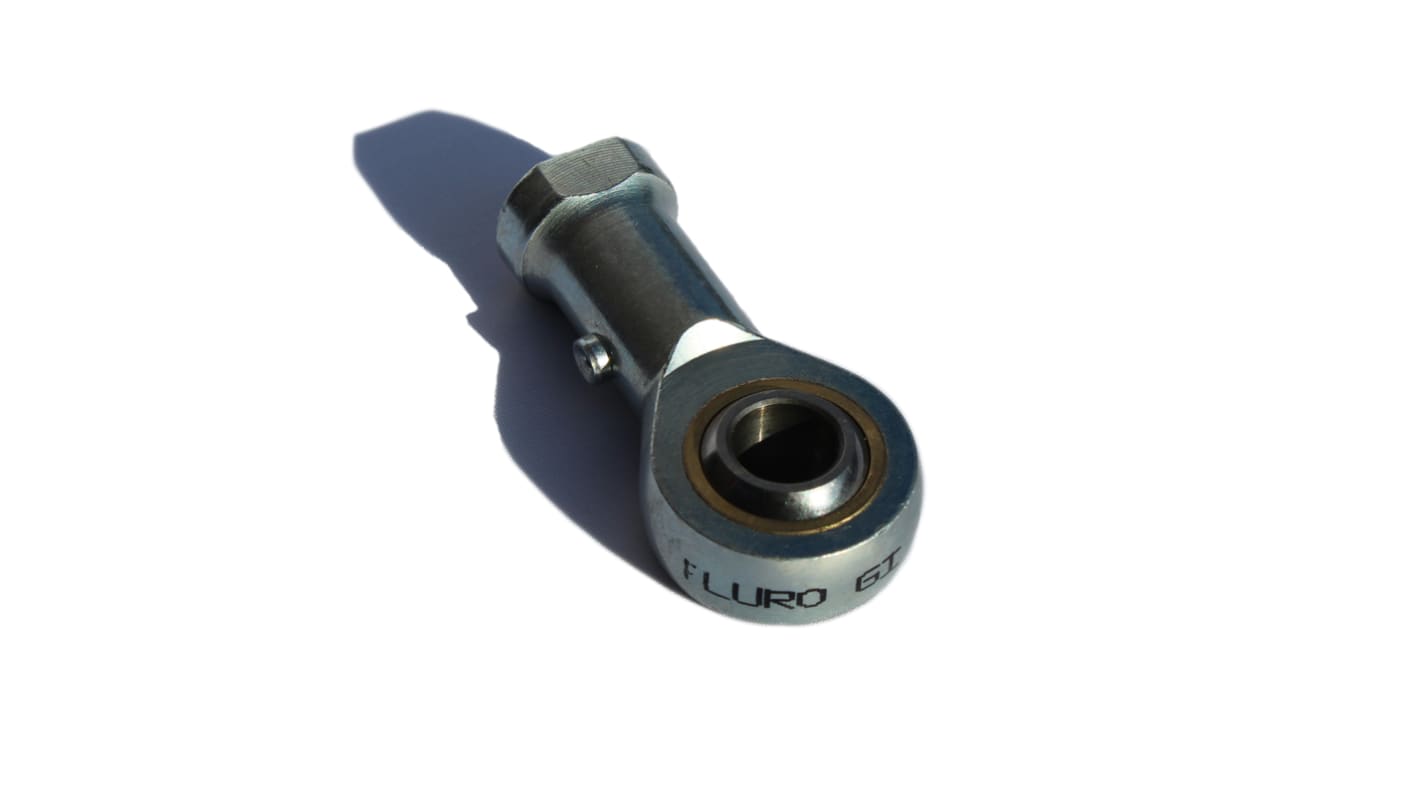

Fluro M3 x 0.5 Female Galvanized Steel Rod End, 3mm Bore Size, 27mm Long , 3 Thread Size, Metric Thread Standard Female

  • RS Stock No. 184-4533
  • Mfr. Part No. GILS3
  • Brand Fluro
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Rod Ends with female thread regreasable through the housing with flush type grease fitting.

Specifications
Attribute Value
Connection Size M3 x 0.5 Female
Bore Size 3mm
Dynamic Load Rating 1.8kN
Static Load Rating 4.1kN
Overall Length 27mm
Material Galvanized Steel
Connection Thread Size 3
Connection Thread Standard Metric
Maximum Operating Temperature +250°C
Minimum Operating Temperature -50°C
Connection Gender Female
