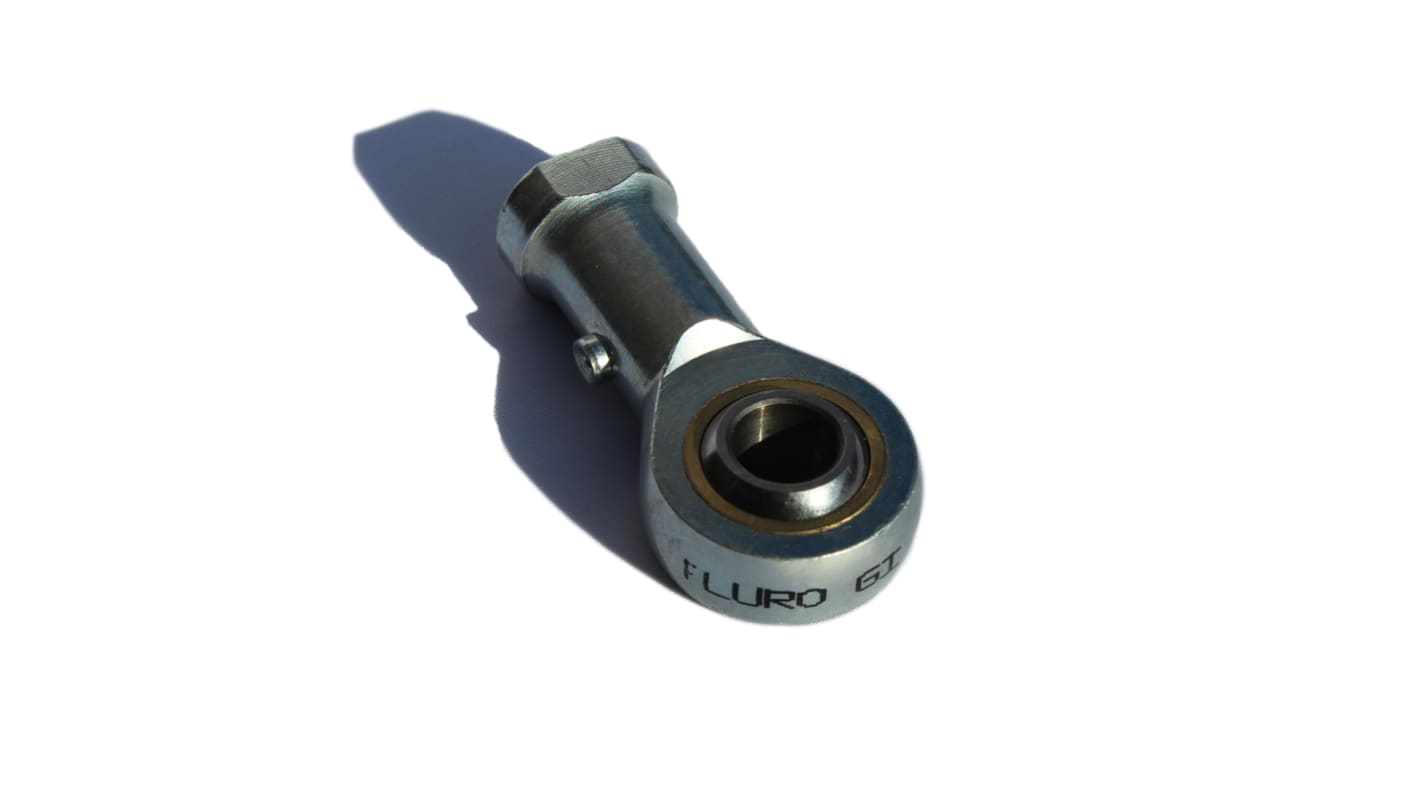

Fluro M16 x 1.5 Female Galvanized Steel Rod End, 16mm Bore Size, 85mm Long , 16 Thread Size, Metric Thread Standard

  • RS Stock No. 184-4523
  • Mfr. Part No. GI16x1.5
  • Brand Fluro
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Rod Ends with female thread regreasable through the housing with flush type grease fitting

Specifications
Attribute Value
Connection Size M16 x 1.5 Female
Bore Size 16mm
Dynamic Load Rating 16kN
Static Load Rating 37kN
Overall Length 85mm
Material Galvanized Steel
Connection Thread Size 16
Connection Thread Standard Metric
Maximum Operating Temperature +200°C
Minimum Operating Temperature -50°C
Connection Gender Female
13 In stock - FREE next working day delivery available
Price Each
£ 37.52
(exc. VAT)
£ 45.02
(inc. VAT)
Units
Per unit
1 - 4
£37.52
5 - 9
£36.02
10 +
£35.27
