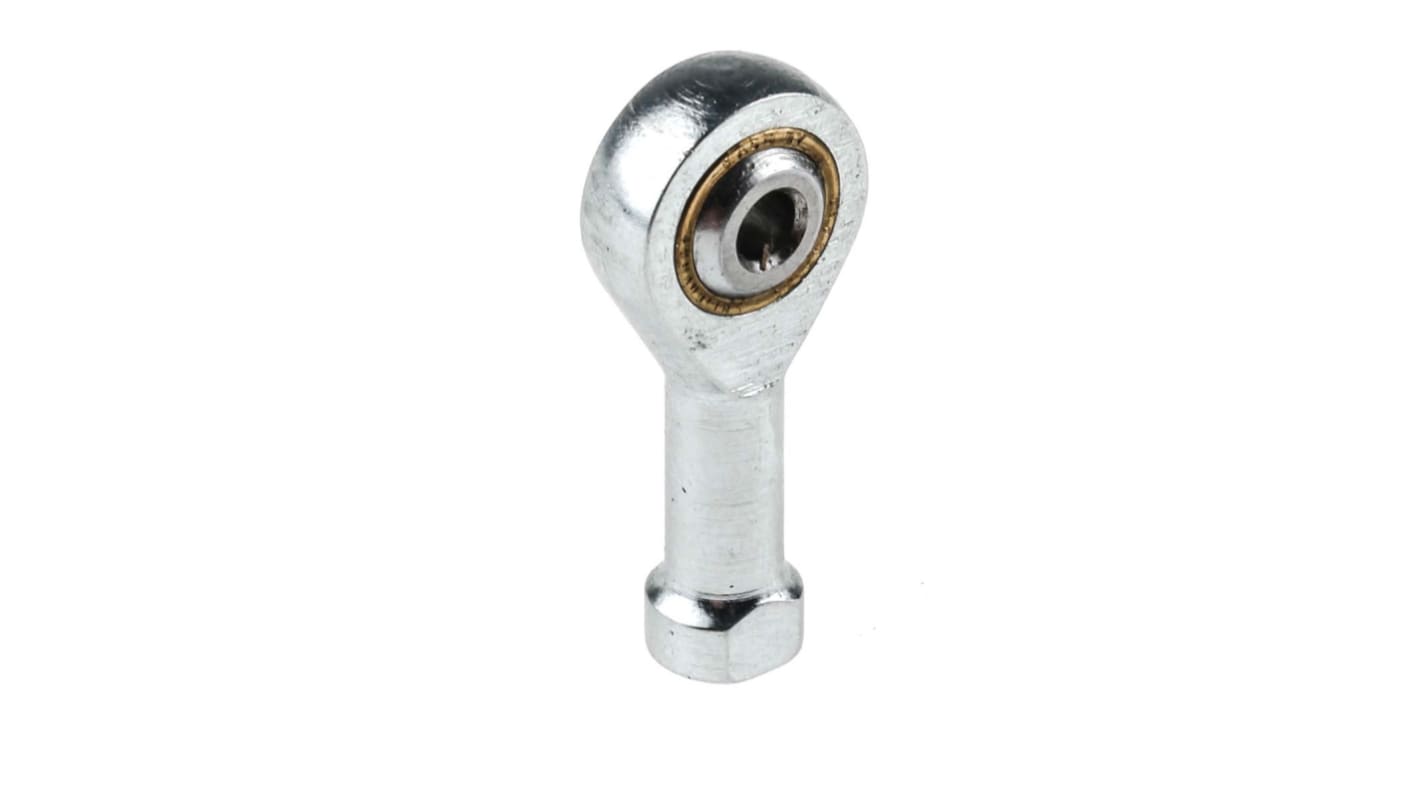

RS PRO M3 x 0.5 Female Steel Rod End, 3mm Bore Size, 27mm Long , M3 x 0.5 Thread Size, Metric Thread Standard Female

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Rod End Miniature - Female

Mechanical linkages manufactured from C22/C35 Pb steel, zinc plated and passivated
Hardened ball, ground and polished 100 cr6 ball bearing steel
Inserts are Cu Zn 40 Mn Pb bronze; these bearings require lubrication and are factory filled with Molykate BR2
+/- 13° off-centre movement through 360°

Specifications
Attribute Value
Connection Size M3 x 0.5 Female
Bore Size 3mm
Static Load Rating 3600N
Overall Length 27mm
Material Steel
Connection Thread Size M3 x 0.5
Connection Thread Standard Metric
Connection Gender Female
210 In stock for FREE next working day delivery
Price Each
£ 17.29
(exc. VAT)
£ 20.75
(inc. VAT)
Units
Per unit
1 - 4
£17.29
5 - 9
£16.60
10 +
£16.25
