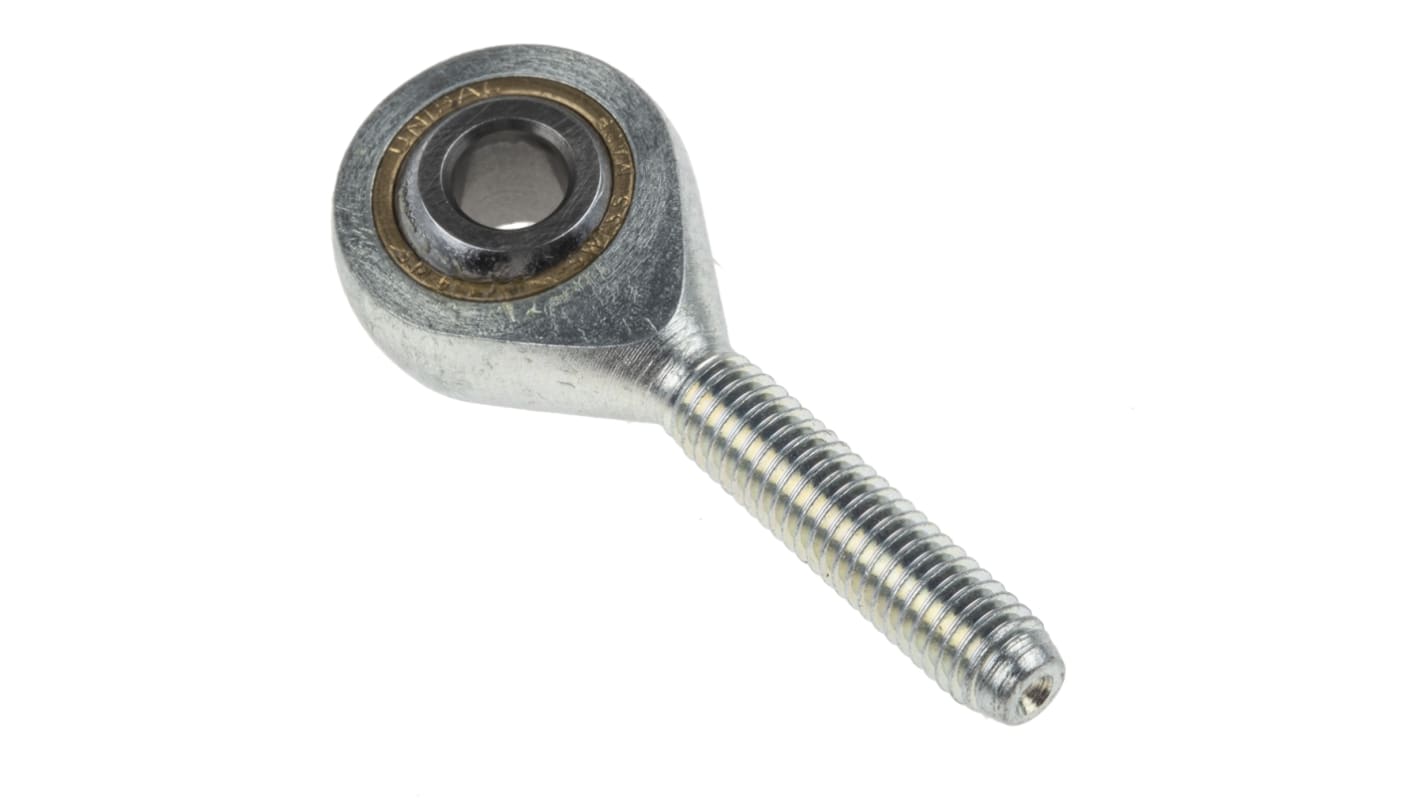

RS PRO M5 x 0.8 Male Steel Rod End, 5mm Bore Size, 41mm Long , M5 x 0.8 Thread Size, Metric Thread Standard Male

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CH
Product Details

Rod End Miniature - Male

Mechanical linkages manufactured from C22/C35 Pb steel, zinc plated and passivated
Hardened ball, ground and polished 100 cr6 ball bearing steel
Inserts are Cu Zn 40 Mn Pb bronze; these bearings require lubrication and are factory filled with Molykate BR2
+/- 13° off-centre movement through 360°

Specifications
Attribute Value
Connection Size M5 x 0.8 Male
Bore Size 5mm
Static Load Rating 3460N
Overall Length 41mm
Material Steel
Connection Thread Size M5 x 0.8
Connection Thread Standard Metric
Connection Gender Male
3 In stock - FREE next working day delivery available
Price Each
£ 20.85
(exc. VAT)
£ 25.02
(inc. VAT)
Units
Per unit
1 - 4
£20.85
5 - 9
£20.01
10 +
£19.60
