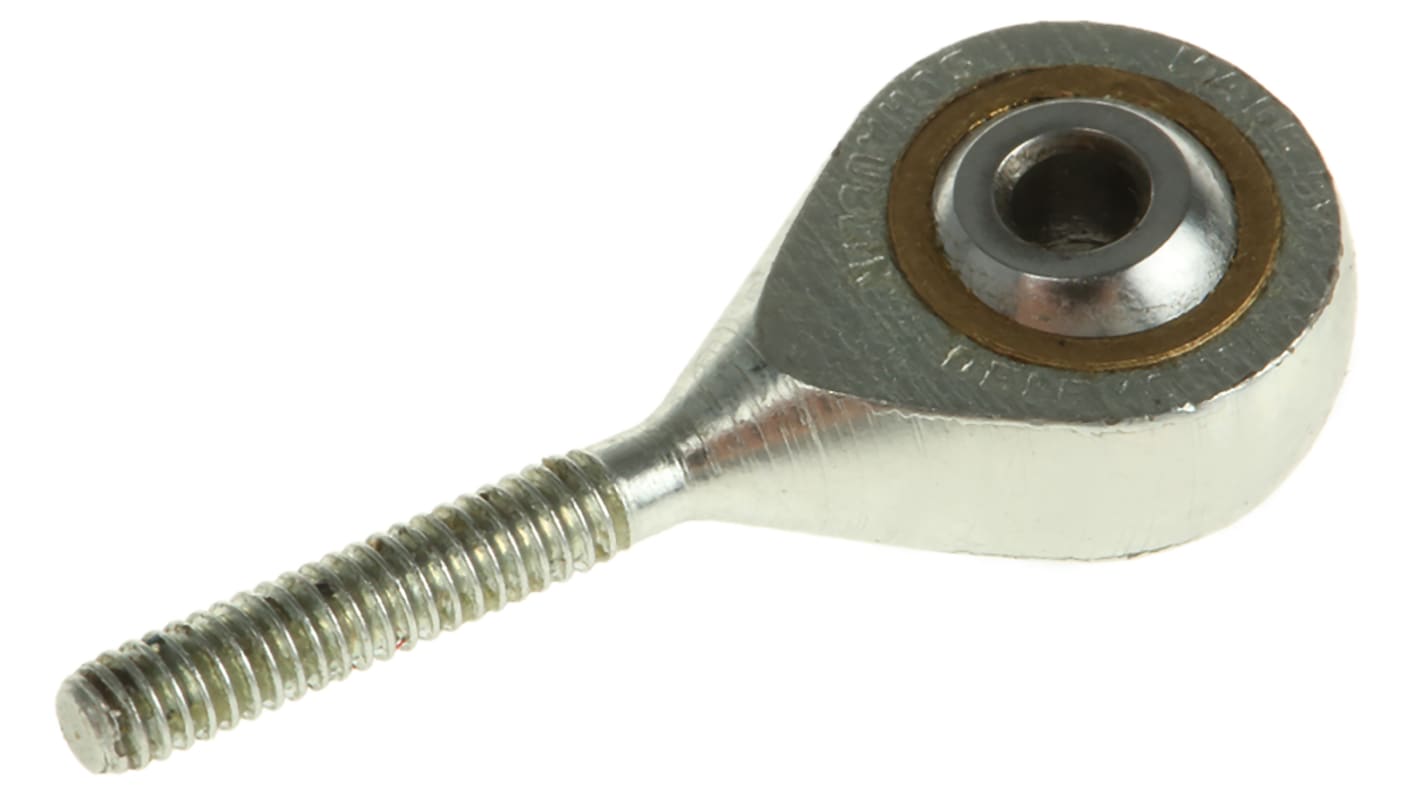

RS PRO M2 x 0.4 Male Steel Rod End, 2mm Bore Size, 22.5mm Long , M2 x 0.4 Thread Size, Metric Thread Standard Male

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CH
Product Details

Rod End Miniature - Male

Mechanical linkages manufactured from C22/C35 Pb steel, zinc plated and passivated
Hardened ball, ground and polished 100 cr6 ball bearing steel
Inserts are Cu Zn 40 Mn Pb bronze; these bearings require lubrication and are factory filled with Molykate BR2
+/- 13° off-centre movement through 360°

Specifications
Attribute Value
Connection Size M2 x 0.4 Male
Bore Size 2mm
Static Load Rating 410N
Overall Length 22.5mm
Material Steel
Connection Thread Size M2 x 0.4
Connection Thread Standard Metric
Connection Gender Male
4 In stock - FREE next working day delivery available
Price Each
£ 15.55
(exc. VAT)
£ 18.66
(inc. VAT)
Units
Per unit
1 - 4
£15.55
5 - 9
£14.93
10 +
£14.61
