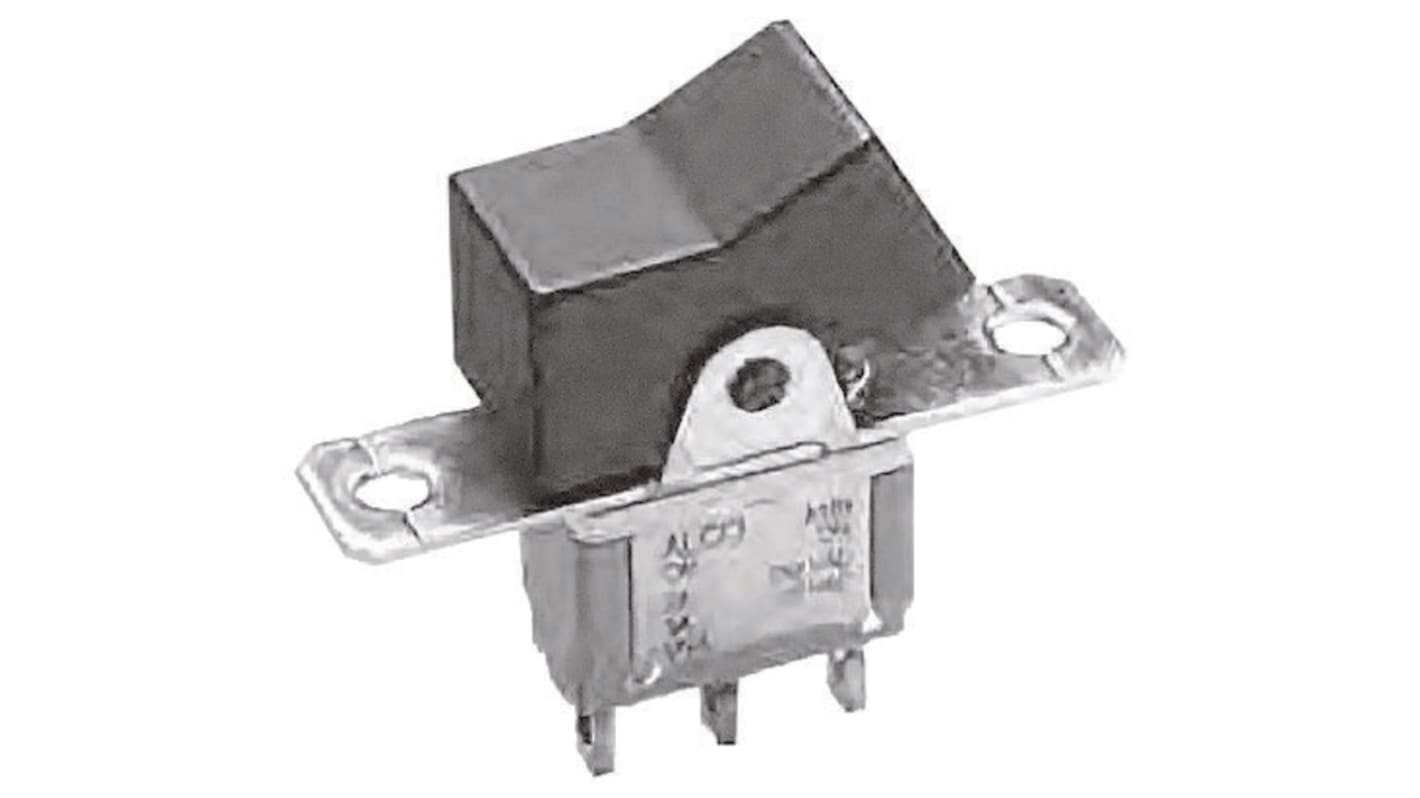

TE Connectivity SPDT, (On)-Off-(On) Rocker Switch Panel Mount
- RS Stock No.:
- 710-9390
- Mfr. Part No.:
- 5-1571986-3
- Brand:
- TE Connectivity
1 In stock - FREE next working day delivery available
4 available from Europe for delivery within 1 working day(s).
Added
Price Each
£4.42
(exc. VAT)
£5.30
(inc. VAT)
| Units | Per unit |
| 1 + | £4.42 |
- RS Stock No.:
- 710-9390
- Mfr. Part No.:
- 5-1571986-3
- Brand:
- TE Connectivity
Technical Reference
Legislation and Compliance
Product Details
Gemini A Series
Break before make contact timing
G and Q contacts have UL recognation
Sealed versions to IP67
G and Q contacts have UL recognation
Sealed versions to IP67
Tyco Series
Easy snap in installation
Black housing
Illuminated rocker & various legend options
Black housing
Illuminated rocker & various legend options
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | SPDT |
| Switch Operation | (On)-Off-(On) |
| Panel Cut Out Width | 10.6mm |
| Panel Cut Out Height | 17.96mm |
| Contact Current Rating | 5 A |
| Illuminated | No |
| Actuator Colour | Black |
| Mounting Type | Panel Mount |
| Terminal Type | Wire Lug |
| AC Voltage Rating | 125 V, 250V |
| DC Voltage Rating | 28V |
| Actuator Shape | Rectangular |
| Panel Cut Out Size | 17.96 x 10.62mm |
| Contact Material | Silver |
| Contact Resistance | 10mΩ |
| Minimum Operating Temperature | -30°C |
| Operating Temperature Range | -30 → +85°C |
| Case Material | Thermoplastic |
| Maximum Operating Temperature | +85°C |
| Mechanical Life | 400000Operations |
