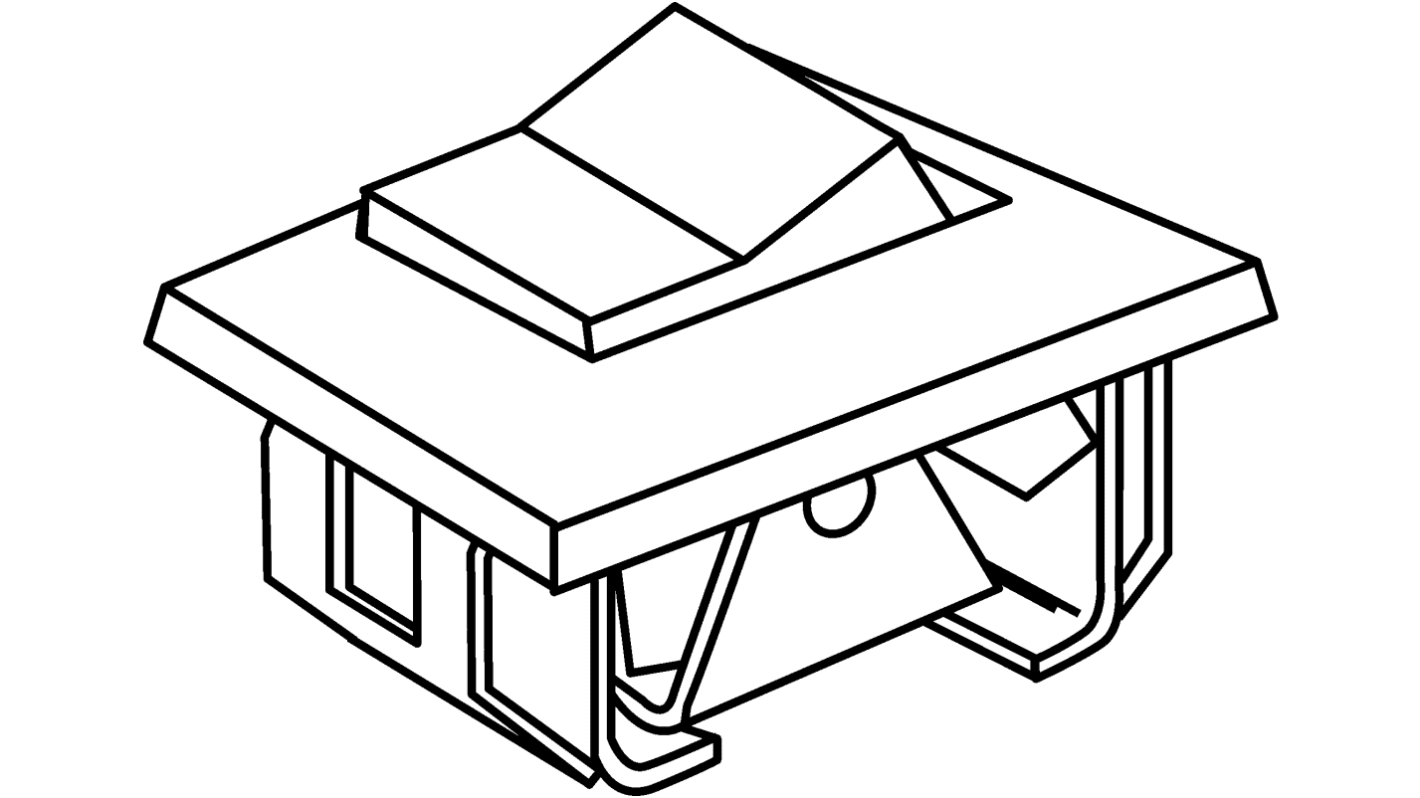

TE Connectivity DPDT, On-(On) Rocker Switch Panel Mount
- RS Stock No.:
- 710-9378
- Mfr. Part No.:
- 1-1571987-5
- Brand:
- TE Connectivity
Available to back order for despatch 23/08/2024
Added
Price Each
£5.74
(exc. VAT)
£6.89
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £5.74 |
| 5 - 24 | £5.42 |
| 25 - 49 | £4.31 |
| 50 + | £4.08 |
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 710-9378
- Mfr. Part No.:
- 1-1571987-5
- Brand:
- TE Connectivity
Technical Reference
Legislation and Compliance
Product Details
Gemini A Series
Break before make contact timing
G and Q contacts have UL recognation
Sealed versions to IP67
G and Q contacts have UL recognation
Sealed versions to IP67
Tyco Series
Easy snap in installation
Black housing
Illuminated rocker & various legend options
Black housing
Illuminated rocker & various legend options
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | DPDT |
| Switch Operation | On-(On) |
| Panel Cut Out Width | 12.7mm |
| Panel Cut Out Height | 15.72mm |
| Contact Current Rating | 5 A |
| Illuminated | No |
| Actuator Colour | Black |
| Mounting Type | Panel Mount |
| Terminal Type | Wire Lug |
| AC Voltage Rating | 120 V, 250V |
| Panel Cut Out Size | 15.72 x 12.7mm |
| DC Voltage Rating | 28V |
| Actuator Shape | Rectangular |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -30°C |
| Mechanical Life | 400000Operations |
| Operating Temperature Range | -30 → +85°C |
| Contact Resistance | 10mΩ |
| Case Material | Thermoplastic |
| Contact Material | Silver |
