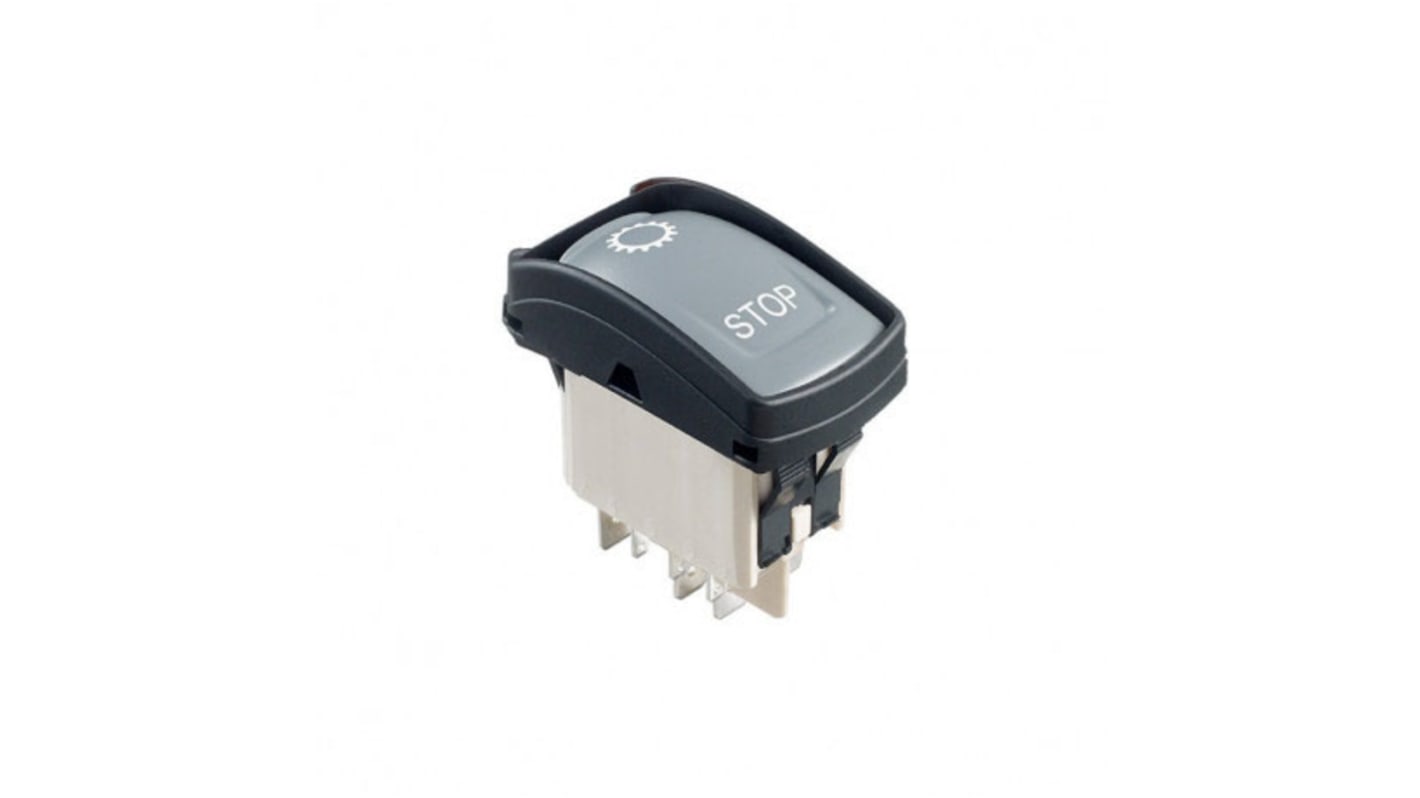

APEM Illuminated Double Pole Double Throw (DPDT), Latching Rocker Switch Panel Mount

  • RS Stock No. 193-1915
  • Mfr. Part No. KH146AAZXFG22NXXXX20
  • Brand APEM
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): FR
Product Details

Designed for harsh environments, KH series rocker switches are protected against accidental actuation with a protection guard. Featuring front panel sealing as standard, the KH series is the most robust product of the K range. Due to its panel seal, this series is perfectly adapted to the harshest environments (high pressure cleaners, dust, salt spray…). The KH series is available illuminated and non-illuminated, with numerous symbols and rocker colours, to meet customer requirements at best.

Protected against accidental actuation
Wide choice of colours
Laser etched or pad printed symbols
Illuminated or non-illuminated

Specifications
Attribute Value
Contact Configuration Double Pole Double Throw (DPDT)
Switch Operation Latching
Panel Cut Out Width 21.08mm
Panel Cut Out Height 36.8mm
Contact Current Rating 5 A
Illuminated Yes
Actuator Colour Black
Mounting Type Panel Mount
IP Rating IP69K
Terminal Type Quick Connect, Solder
Legend Text Windshield Demister/Defroster (Symbol)
Actuator Shape Rectangular
Maximum Operating Temperature +85°C
Panel Cut Out Size 21.08 x 36.8mm
Case Material PA 6.6
Operating Temperature Range -40 → +85°C
Legend Text Colour White (Symbol)
Minimum Operating Temperature -40°C
DC Voltage Rating 24V
Contact Material Silver
20 In stock - FREE next working day delivery available
Price Each (In a Tray of 10)
£ 17.985
(exc. VAT)
£ 21.582
(inc. VAT)
Units
Per unit
Per Tray*
10 +
£17.985
£179.85
*price indicative
