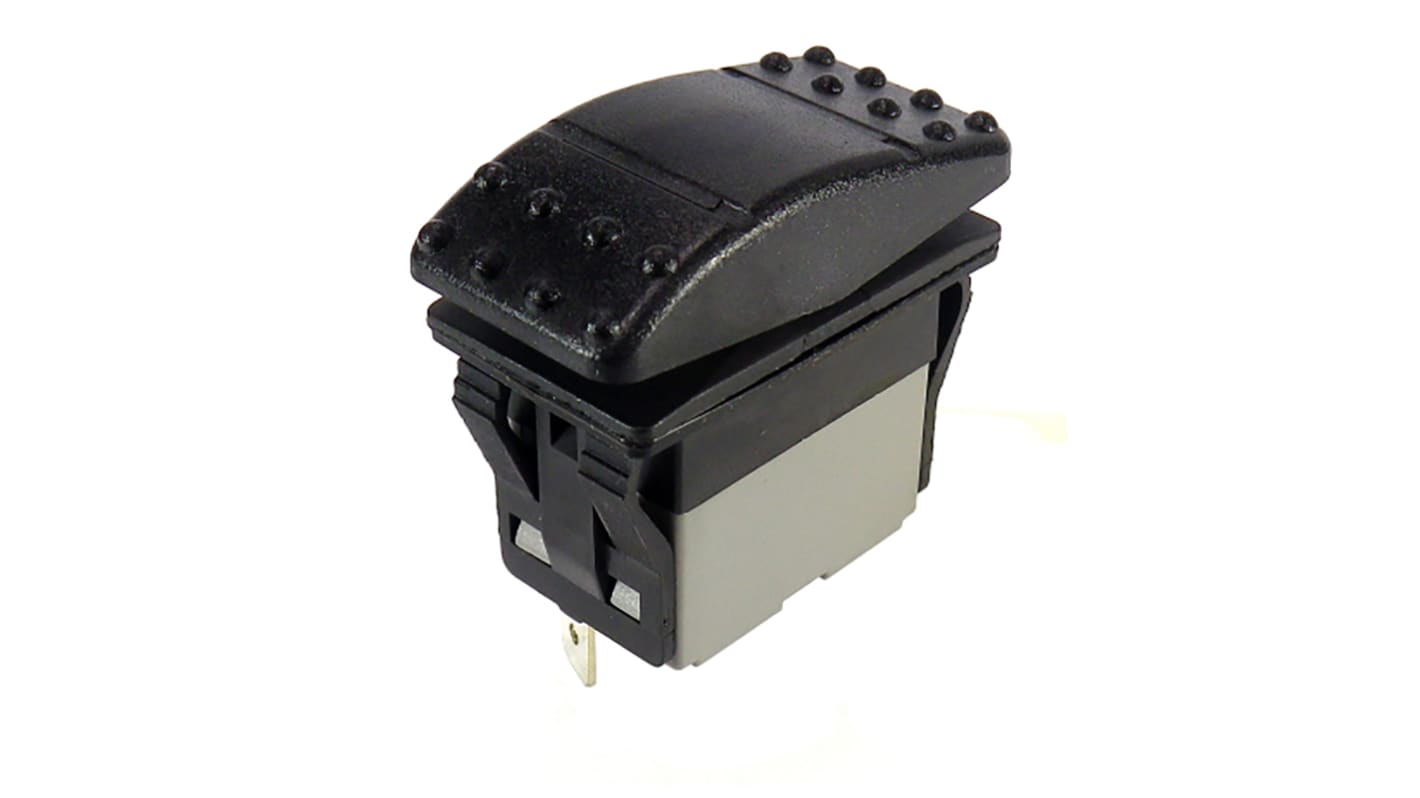

RS PRO Illuminated Single Pole Double Throw (SPDT), Momentary Rocker Switch Panel Mount

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

Power Level, available from SPST to DPDT with a variety of options for actuator and actuator symbol.

• Mounting unit is available to simply the installation when several switches are required
• Wide variety of actuator shapes / styles with optional pad printed symbols
• Illuminated or non-illuminated models
• 8 and 10-terminal versions allowing independent LED circuit or additional integrated functions

Specifications
Attribute Value
Contact Configuration Single Pole Double Throw (SPDT)
Switch Operation Momentary
Panel Cut Out Width 37mm
Panel Cut Out Height 21.1mm
Contact Current Rating 16 A @ 125 → 250 V ac, 16 A @ 30 V dc, 20 A @ 125 → 250 V ac
Illuminated Yes
Actuator Colour Black
Mounting Type Panel Mount
IP Rating IP67
Terminal Type Quick Connect
Legend Text On
Actuator Shape Rectangular
Contact Resistance 20mΩ
Minimum Operating Temperature -20°C
Panel Cut Out Size 21.1 x 37mm
DC Voltage Rating 30V
Operating Temperature Range -20 → +85°C
AC Voltage Rating 125 → 250V
Case Material Polyamide
Maximum Operating Temperature +85°C
Contact Material Copper
