C & K Single Pole Single Throw (SPST), On-None-Off Rocker Switch

  • RS Stock No. 155-8941
  • Mfr. Part No. CR102J12S215QF
  • Brand C & K
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

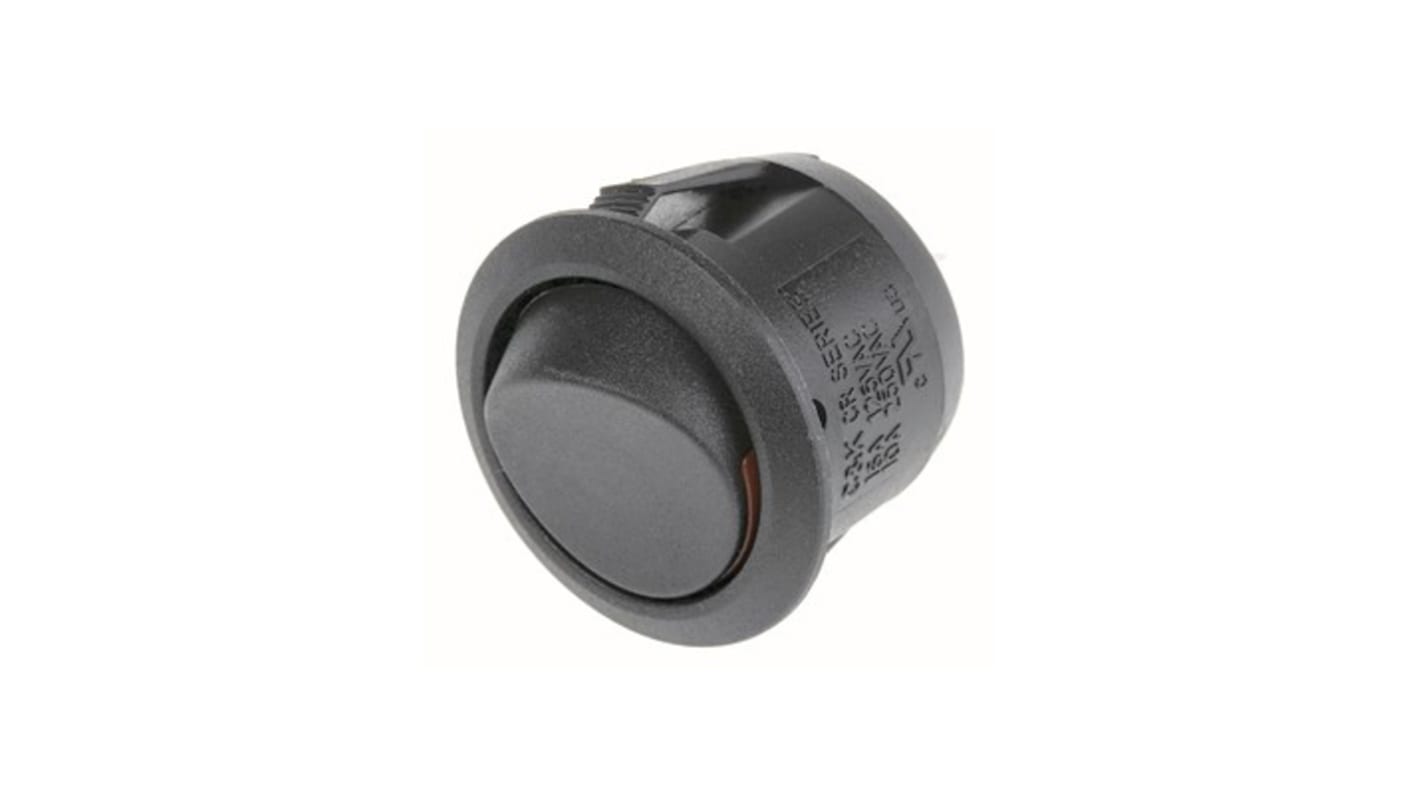

C & K SPST On-None-Off Rocker Switch

The C&K single pole single throw (SPST) rocker switch has On-None-Off switch operation. This switch belongs to CR-Series round 1-pole speciality rocker switches. It has a contact terminal rating of 10A at,250VAC. This latching switch has quick connect termination style. It has a black matte finish. This switch is perfectly suitable for any atmospheric condition. It is a quick-connect contact terminal type switch.

Features and Benefits

• Round actuator and body
• Nice styling
• Multi-pole and multi-position functionality switch
• Multiple illuminated versions available
• Splash proof rubber boot option
• Sub-miniature size for a space-saving small footprint
• Rugged construction switch
• Housing is made from nylon 6/6 grade material

Applications

• Small and large appliances
• Office equipment
• Computers and peripherals
• Audio/Video equipment

Certifications

• UL 61058-1 approved
• IP65 rated

Specifications
Attribute Value
Contact Configuration Single Pole Single Throw (SPST)
Switch Operation On-None-Off
Panel Cut Out Diameter 20.2mm
Contact Current Rating 10 A
Illuminated No
Actuator Colour Black
Terminal Type Quick Connect
Actuator Shape Round
Operating Temperature Range -20 → +85°C
Minimum Operating Temperature -20°C
Panel Cut Out Size 20.2 (Dia.)mm
AC Voltage Rating 250V
Contact Material Copper Alloy (Center Contact), Silver Tin Oxide (End Contact)
Case Material Nylon 66
Maximum Operating Temperature +85°C
185 In stock - FREE next working day delivery available
Price Each (In a Pack of 5)
£ 0.978
(exc. VAT)
£ 1.174
(inc. VAT)
Units
Per unit
Per Pack*
5 +
£0.978
£4.89
*price indicative
