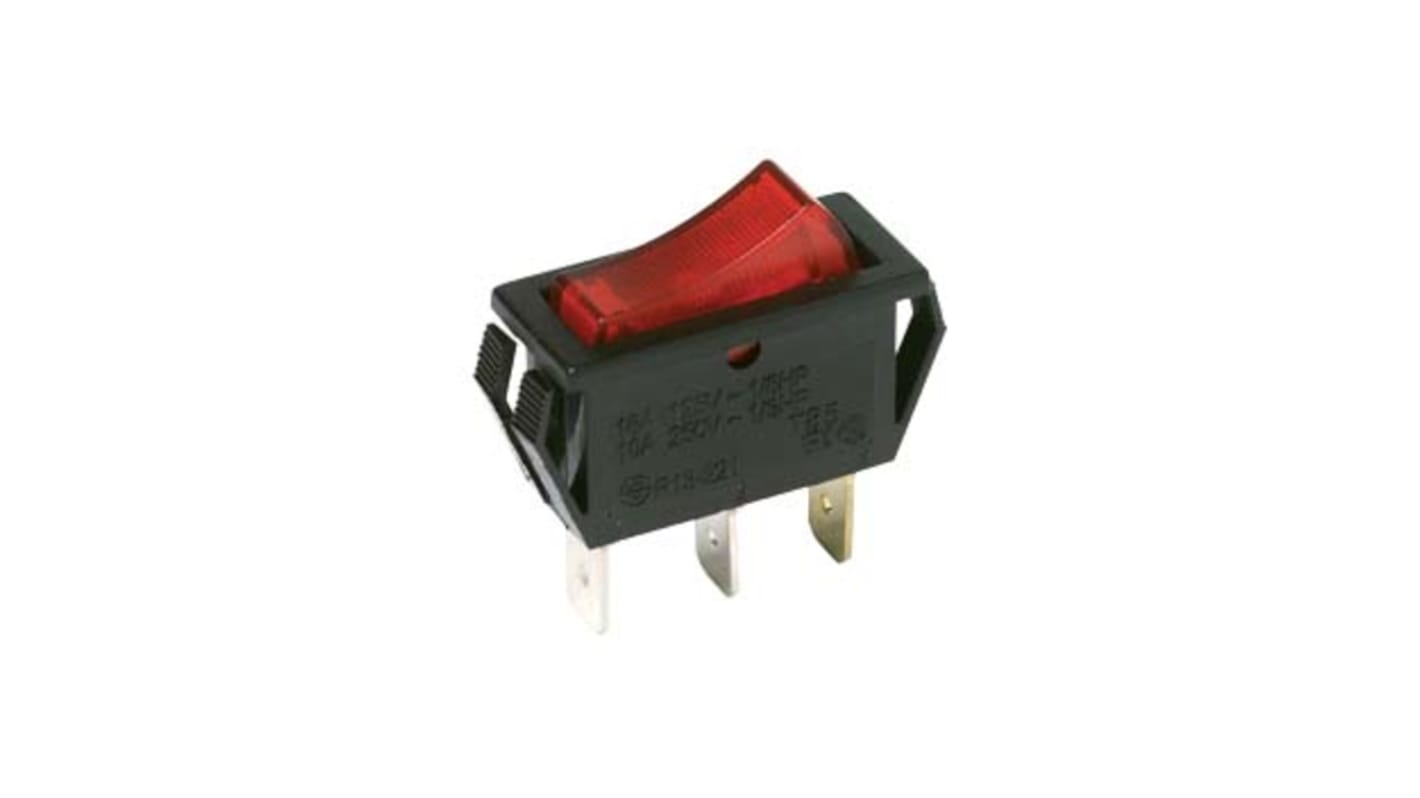

C & K Single Pole Double Throw (SPDT), (On)-Off-On Rocker Switch

  • RS Stock No. 155-8929
  • Mfr. Part No. CM107J12S205QA
  • Brand C & K
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

With multi-pole, multi-position functionality, C&K rocker switches can be used in a variety of applications. Options like a round shape, narrow width, rugged construction, beveled frames, recessed switch guards to prevent accidental actuation, splash-proof rubber boots and subminiature sizes for a space-saving small footprint, make C&K the rocker switch provider of choice.

Illuminated versions available
Easy to install snap-in design
Multiple actuator and termination styles
Power supplies
Industrial equipment
Small appliances

Specifications
Attribute Value
Contact Configuration Single Pole Double Throw (SPDT)
Switch Operation (On)-Off-On
Panel Cut Out Width 30.8mm
Panel Cut Out Height 11.2mm
Contact Current Rating 10 A
Illuminated No
Actuator Colour Black
Terminal Type Quick Connect
Actuator Shape Rectangular
Contact Material Copper Alloy
AC Voltage Rating 250V
Case Material Nylon 66
Operating Temperature Range -20 → +80°C
Panel Cut Out Size 30.8 x 11.2mm
Minimum Operating Temperature -20°C
Maximum Operating Temperature +80°C
74 In stock - FREE next working day delivery available
Price Each (In a Pack of 2)
£ 0.825
(exc. VAT)
£ 0.99
(inc. VAT)
Units
Per unit
Per Pack*
2 +
£0.825
£1.65
*price indicative
