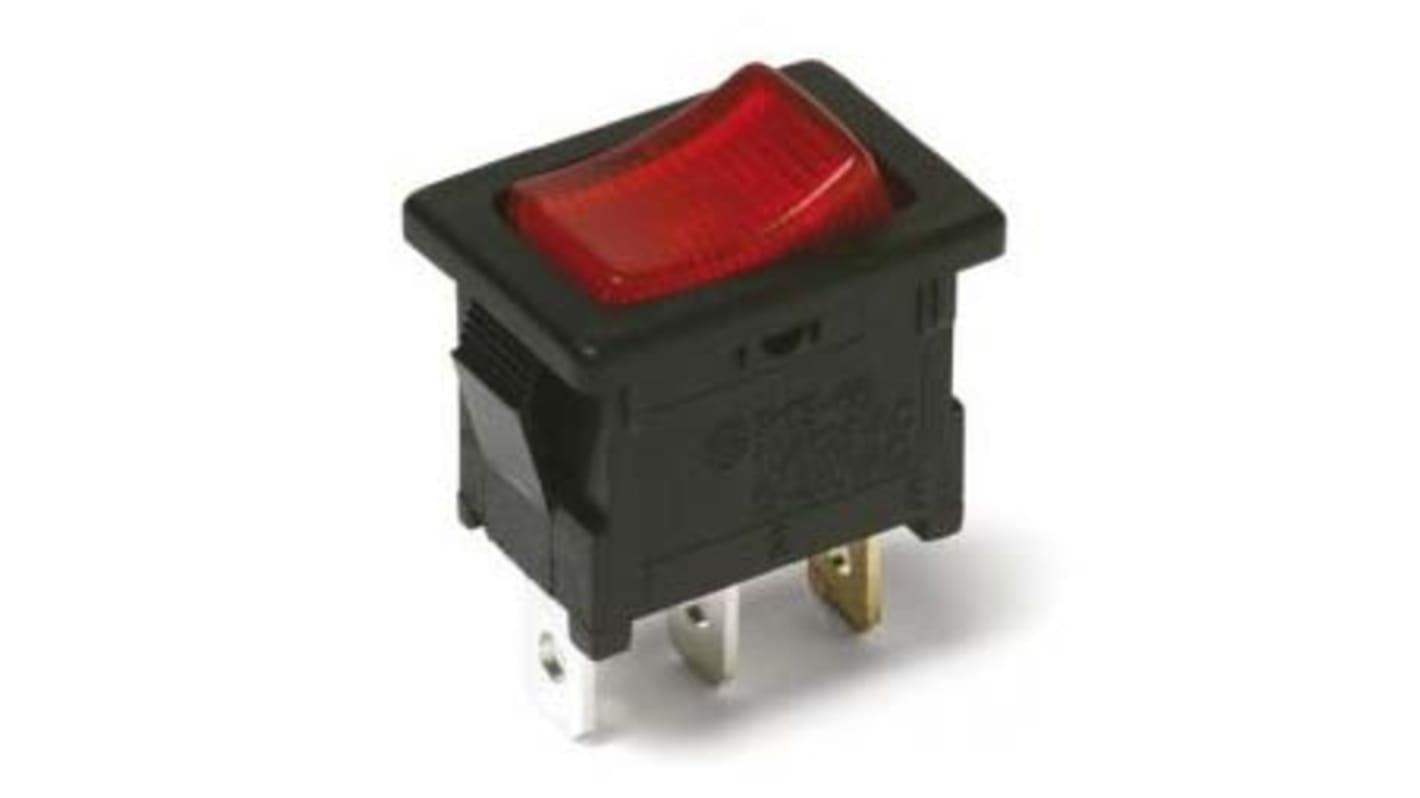

C & K Single Pole Single Throw (SPST), On-None-Off Rocker Switch

  • RS Stock No. 155-8850
  • Mfr. Part No. DA102J12S202DQF
  • Brand C & K
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

C & K SPST On-None-Off Rocker Switch

The C&K single pole single throw (SPST) rocker switch has On-None-Off switch operation. This switch belongs to DA Series miniature 1-pole Rocker switches. It has a contact terminal rating of 6A at 250VAC. This switch has a black matte finish. It is perfectly suitable for any atmospheric condition. It is a PC pin contact terminal type switch.

Features and Benefits

• Insulation resistance is 10^8ohm min
• Momentary and maintained functions
• Nice actuator styling with multiple options
• Guards to prevent accidental actuation
• Splash proof rubber boot option
• Easy to install
• Housing is made from nylon 6/6 grade material

Applications

• Small appliances
• Computers and peripherals
• Medical instrumentation

Certifications

• UL 61058-1 approved
• IP65 rated

Specifications
Attribute Value
Contact Configuration Single Pole Single Throw (SPST)
Switch Operation On-None-Off
Panel Cut Out Width 19.8mm
Panel Cut Out Height 13mm
Contact Current Rating 6 A @ 250 V ac, 10 A @ 125 V ac, 10 A @ 250 V ac, 16 A @ 125 V ac
Illuminated No
Actuator Colour Black, White
IP Rating IP65
Terminal Type PC Pin
Legend Text On (symbol); Off (symbol)
Actuator Shape Rectangular
Operating Temperature Range -20 → +85°C
AC Voltage Rating 250V
Case Material Nylon 66
Contact Material Copper Alloy
Maximum Operating Temperature +85°C
Minimum Operating Temperature -20°C
Panel Cut Out Size 19.8 x 13mm
600 In stock for FREE next working day delivery
Price Each (In a Tray of 100)
Was £0.91
£ 0.73
(exc. VAT)
£ 0.88
(inc. VAT)
Units
Per unit
Per Tray*
100 +
£0.73
£73.00
*price indicative
