C & K Single Pole Single Throw (SPST), On-None-Off Rocker Switch

  • RS Stock No. 155-8842
  • Mfr. Part No. CR102J25S215QF
  • Brand C & K
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

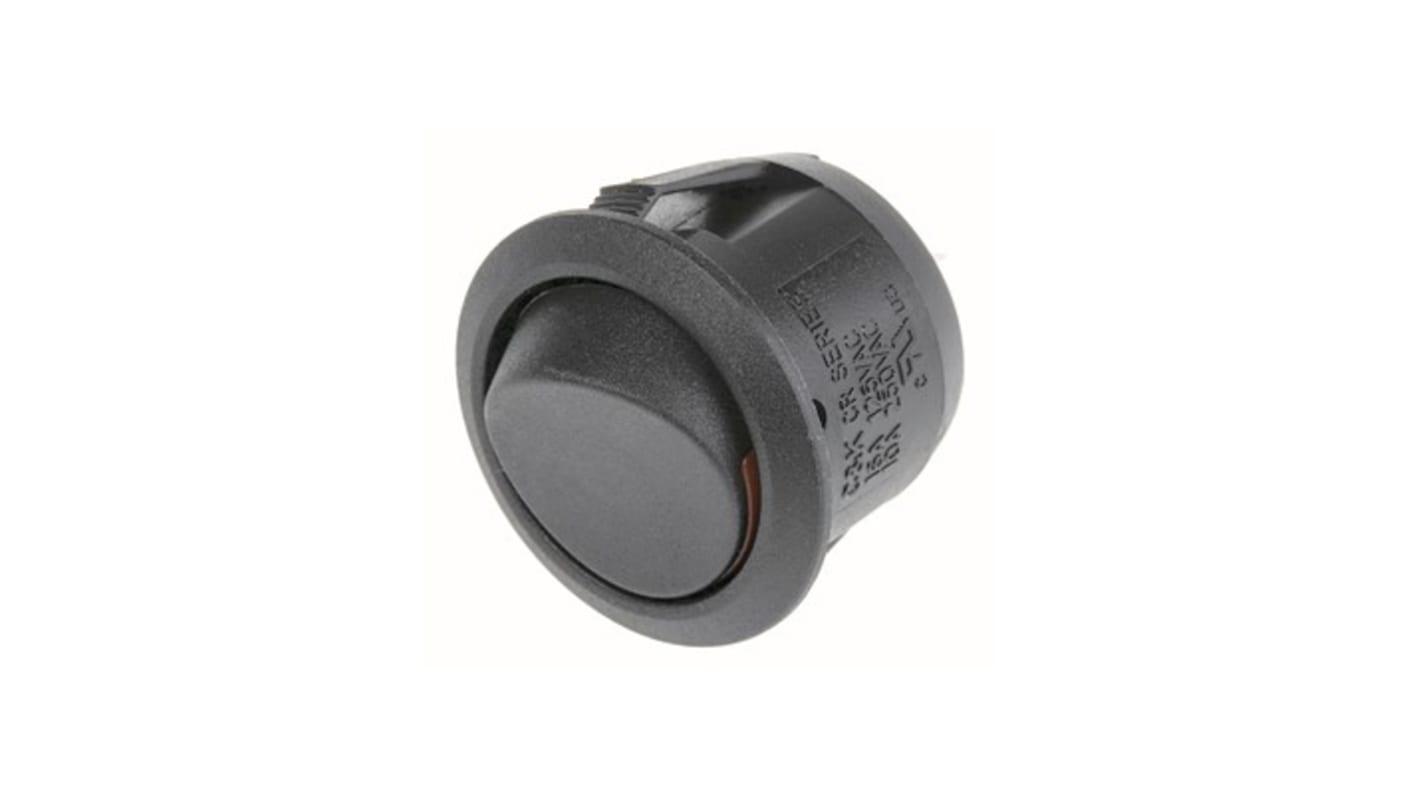

C & K SPST On-None-Off Rocker Switch

The C&K single pole single throw (SPST) rocker switch has On-None-Off switch operation. This switch belongs to CR-Series round 1-pole speciality rocker switches. It has a contact terminal rating of 10A at 250VAC. This latching switch has quick connect termination style. It has a black matte finish. This switch is perfectly suitable for any atmospheric condition.

Features and Benefits

• Insulation resistance is 10^8ohm min
• Round, top black, bottom red actuator and body
• Nice styling
• Multi-pole and multi-position functionality switches
• Multiple illuminated versions available
• Splash proof rubber boot option
• Sub-miniature sizes for a space-saving small footprint
• Rugged construction switches
• Housing is made from nylon 6/6 grade material

Applications

• Small and large appliances
• Office equipment
• Computers and peripherals
• Audio/Video equipment

Certifications

• UL 61058-1 approved
• IP65 rated

Specifications
Attribute Value
Contact Configuration Single Pole Single Throw (SPST)
Switch Operation On-None-Off
Panel Cut Out Diameter 20.2mm
Contact Current Rating 10 A @ 250 V ac, 16 A @ 125 V ac
Illuminated No
Actuator Colour Red
Terminal Type Quick Connect
Actuator Shape Round
Minimum Operating Temperature -20°C
Contact Material Copper Alloy (Center Contact), Silver Tin Oxide (End Contact)
Operating Temperature Range -20 → +85°C
Panel Cut Out Size 20.2 (Dia.)mm
Maximum Operating Temperature +85°C
Case Material Nylon 66
AC Voltage Rating 250V
700 In stock for FREE next working day delivery
Price Each (In a Tray of 100)
£ 0.979
(exc. VAT)
£ 1.175
(inc. VAT)
Units
Per unit
Per Tray*
100 - 100
£0.979
£97.90
200 +
£0.943
£94.30
*price indicative
