- RS Stock No.:
- 199-188
- Mfr. Part No.:
- C1353VENAB
- Brand:
- Arcolectric
Discontinued product
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 199-188
- Mfr. Part No.:
- C1353VENAB
- Brand:
- Arcolectric
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TN
Product Details

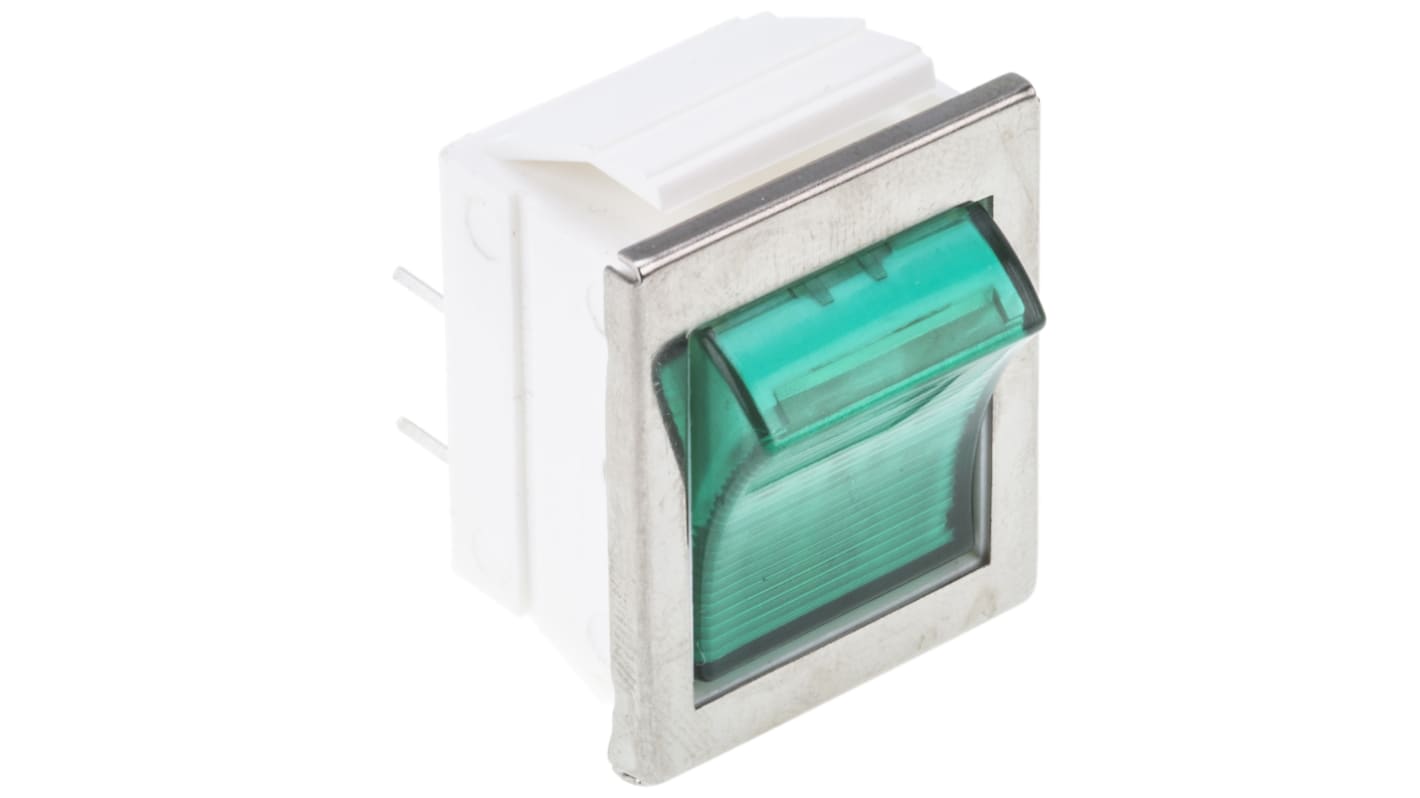

Illuminated Rocker Switches
A range of standard latching illuminated rocker switches designed for panel mounting. With a choice of red or green illumination, these rocker switches are suitable for a wide range of applications. The snap-in rocker switches are available with a black or white body and can be single or double pole configured, dependant on individual application requirements. The general purpose switches are perfect for everyday use. Suitable for repairing existing equipment or for new designs.
Features and Benefits
Red or Green Illumination
240 Vac operation
SPST and DPST switch configurations
Moulded in Nylon 6.6 plastic with a silky textured finish
Snap-in plastic prongs on the switch sides for secure panel retention
Connection via push on receptacles
Easy to operate the smooth rocker actuator
Typical applications for rocker switches
Rocker switches are one of the most frequently used electrical switches in the market today. Due to their simple design and easy operation, rocker switches are found in almost every industry. Some of the most common areas are:
Automation Control
Computers and peripherals
Medical equipment
Audio video equipment
FAQ
Are the rocker switches easy to connect?
Yes, as the rocker switches have male quick connect 0.250 in (6.35 mm) tab terminals at the rear connection is easy. Simply select the appropriate red, yellow or blue female receptacle crimp connectors according to wire size required.
Are there any recommended tools for cutting the aperture in a panel?
Suitable hole cutters are available separately. Single Pole 614-334 or Double Pole 614-328
Features and Benefits
Red or Green Illumination
240 Vac operation
SPST and DPST switch configurations
Moulded in Nylon 6.6 plastic with a silky textured finish
Snap-in plastic prongs on the switch sides for secure panel retention
Connection via push on receptacles
Easy to operate the smooth rocker actuator
Typical applications for rocker switches
Rocker switches are one of the most frequently used electrical switches in the market today. Due to their simple design and easy operation, rocker switches are found in almost every industry. Some of the most common areas are:
Automation Control
Computers and peripherals
Medical equipment
Audio video equipment
FAQ
Are the rocker switches easy to connect?
Yes, as the rocker switches have male quick connect 0.250 in (6.35 mm) tab terminals at the rear connection is easy. Simply select the appropriate red, yellow or blue female receptacle crimp connectors according to wire size required.
Are there any recommended tools for cutting the aperture in a panel?
Suitable hole cutters are available separately. Single Pole 614-334 or Double Pole 614-328
Approvals
ENEC
Approvals
ENEC
Specifications
Attribute | Value |
---|---|
Contact Configuration | DPST |
Switch Operation | On-Off |
Panel Cut Out Width | 22.5mm |
Panel Cut Out Height | 28.2mm |
Contact Current Rating | 16 A |
Illuminated | Yes |
Actuator Colour | Green |
Mounting Type | Panel Mount |
IP Rating | IP40 |
Terminal Type | Quick Connect |
AC Voltage Rating | 125 V, 250V |
Actuator Shape | Rectangular |
Panel Cut Out Size | 28.2 x 22.5mm |
Contact Material | Silver Alloy |
Minimum Operating Temperature | 0°C |
Operating Temperature Range | 0 → +85°C |
Maximum Operating Temperature | +85°C |
Contact Resistance | 100mΩ |
Case Material | Nylon 66 |
