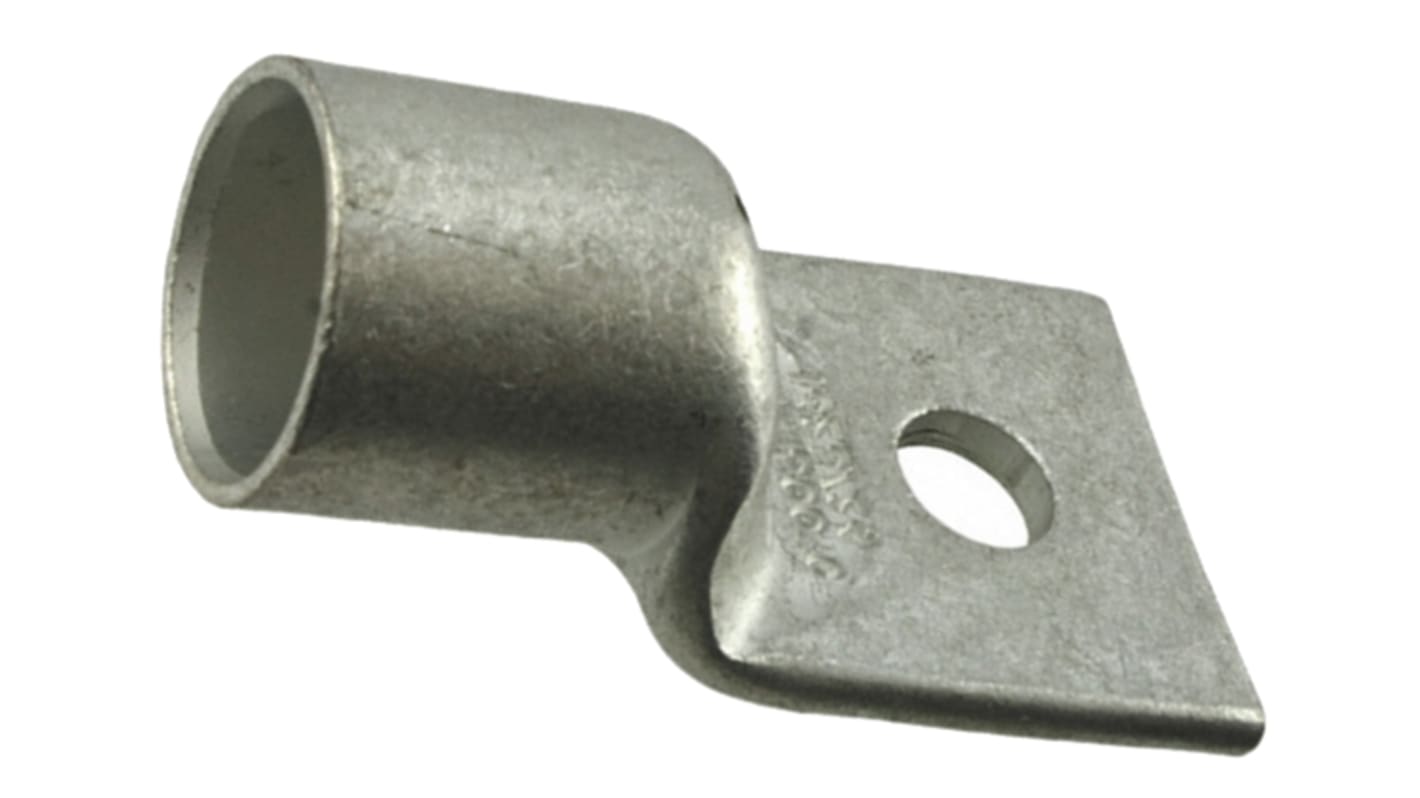

TE Connectivity, AMPOWER Uninsulated Ring Terminal, M12 (1/2) Stud Size, 152mm² to 152mm² Wire Size
- RS Stock No.:
- 825-1956
- Mfr. Part No.:
- 325805
- Brand:
- TE Connectivity
202 In stock - FREE next working day delivery available
Added
Price Each
£14.41
(exc. VAT)
£17.29
(inc. VAT)
| Units | Per unit |
| 1 + | £14.41 |
- RS Stock No.:
- 825-1956
- Mfr. Part No.:
- 325805
- Brand:
- TE Connectivity
Technical Reference
Legislation and Compliance
Product Details
TE Connectivity AMPOWER Tubular Crimp Terminals
AMPOWER series tubular terminals made from seamless tubular annealed copper (as per ASTM B-75) with a tin plating (as per MIL-T-10727). These AMPOWER tubular terminals have a conical entry for easy wire insertion an inspection window or sight hole (apart from stock number 825-1975) and the terminal tongue is marked with the metric wire and stud size. These AMPOWER tubular crimp terminals are suitable for use in power generation and distribution applications.
TE Connectivity AMPOWER Crimp Terminals
Specifications
Attribute | Value |
|---|---|
| Series | AMPOWER |
| Insulation | Uninsulated |
| Inner Ring Diameter | 13.08mm |
| Outer Ring Diameter | 35.56mm |
| Maximum Wire Size mm² | 152mm² |
| Minimum Wire Size mm² | 152mm² |
| Stud Size | M12 (1/2) |
| Contact Plating | Tin |
| Contact Material | Copper |
| Thickness | 4.06mm |
| Overall Length | 68.33mm |
