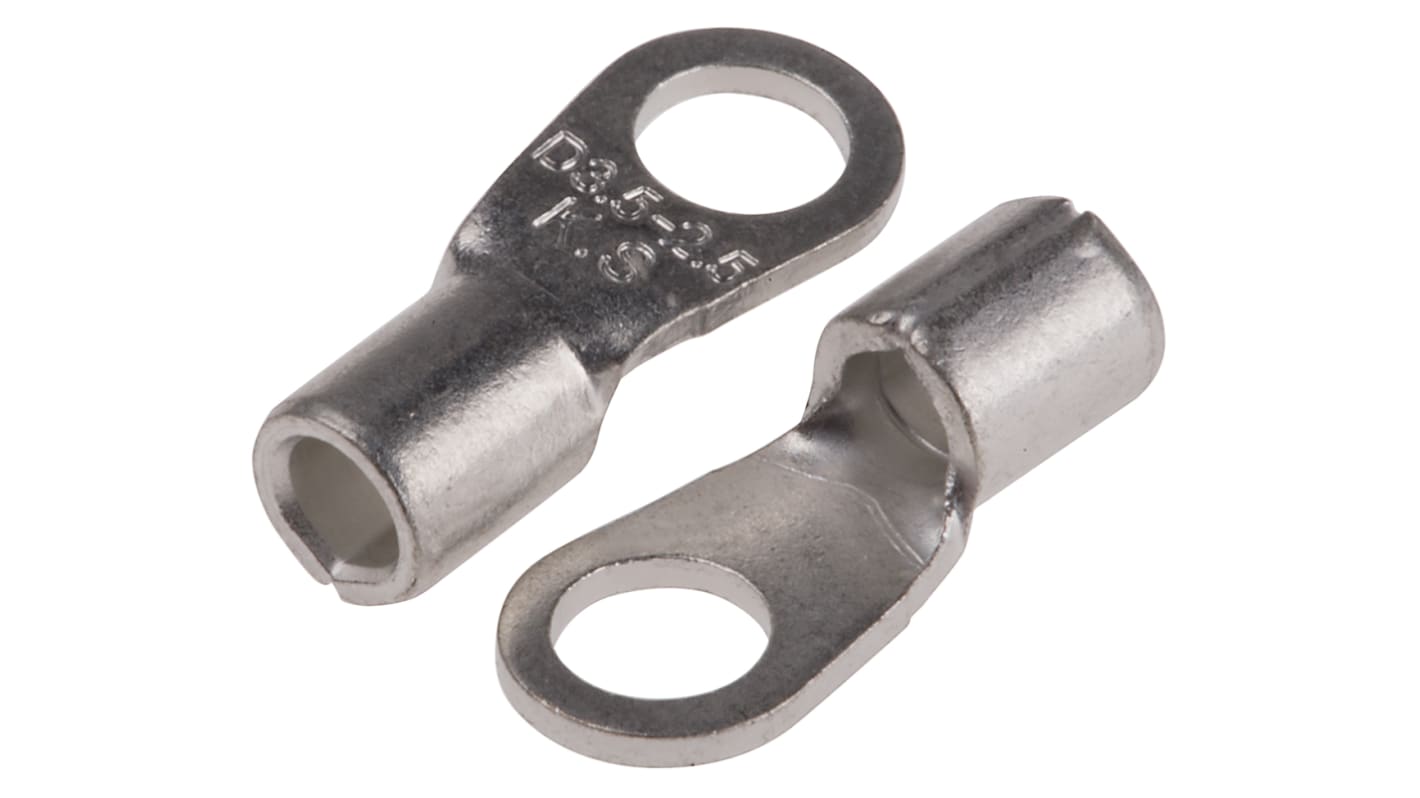

RS PRO Uninsulated Ring Terminal, #6 Stud Size, 1.5mm² to 2.5mm² Wire Size

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

RS Uninsulated DIN 46234 Crimp Ring Terminals

Uninsulated DIN 46234 crimp ring terminals made from copper with a brazed seam. These non-insulated DIN 46234 crimp ring terminals are available with variety of wire and stud sizes.

Specifications
Attribute Value
Insulation Uninsulated
Outer Ring Diameter 6mm
Inner Ring Diameter 3.7mm
Maximum Wire Size mm² 2.5mm²
Minimum Wire Size mm² 1.5mm²
Minimum Wire Size AWG 16AWG
Maximum Wire Size AWG 14AWG
Stud Size #6
Contact Material Copper
Thickness 0.8mm
Overall Length 11mm
1100 In stock - FREE next working day delivery available
Price Each (In a Pack of 100)
£ 0.043
(exc. VAT)
£ 0.052
(inc. VAT)
Units
Per unit
Per Pack*
100 - 400
£0.043
£4.30
500 - 2400
£0.036
£3.60
2500 +
£0.032
£3.20
*price indicative
