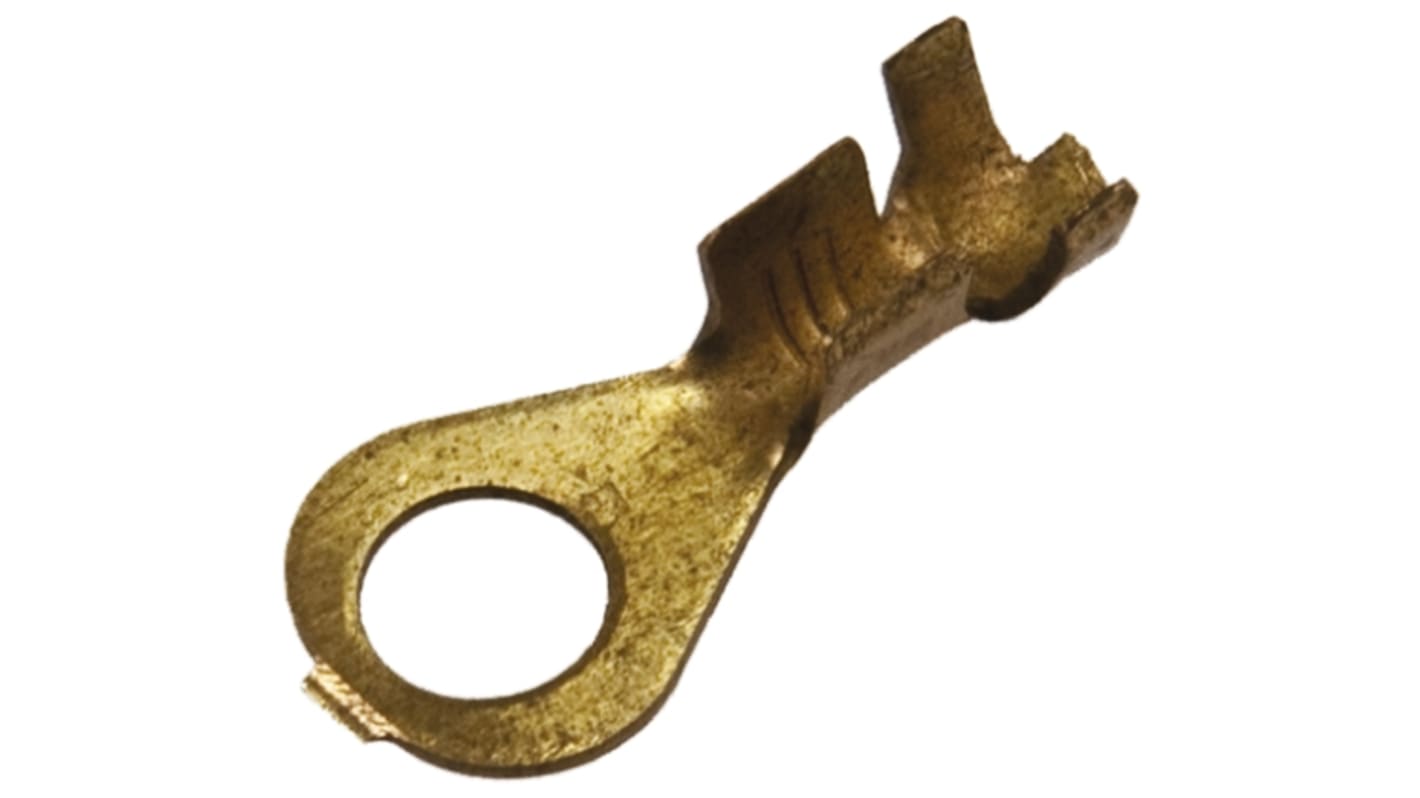

TE Connectivity Uninsulated Ring Terminal, 5.3mm Stud Size, 1mm² to 2.5mm² Wire Size

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

TE Connectivity 'F' Style Ring Tongue Crimp Terminals

A range of open barrel 'F' style ring and spade crimp terminals

Specifications
Attribute Value
Insulation Uninsulated
Inner Ring Diameter 5.3mm
Outer Ring Diameter 9.5mm
Maximum Wire Size mm² 2.5mm²
Minimum Wire Size mm² 1mm²
Minimum Wire Size AWG 17AWG
Maximum Wire Size AWG 13AWG
Stud Size 5.3mm
Contact Material Brass
Contact Plating Tin
Thickness 0.6mm
Overall Length 19.8mm
Available to back order for despatch when stock is available
Price Each (In a Pack of 20)
£ 0.199
(exc. VAT)
£ 0.239
(inc. VAT)
Units
Per unit
Per Pack*
20 +
£0.199
£3.98
*price indicative
