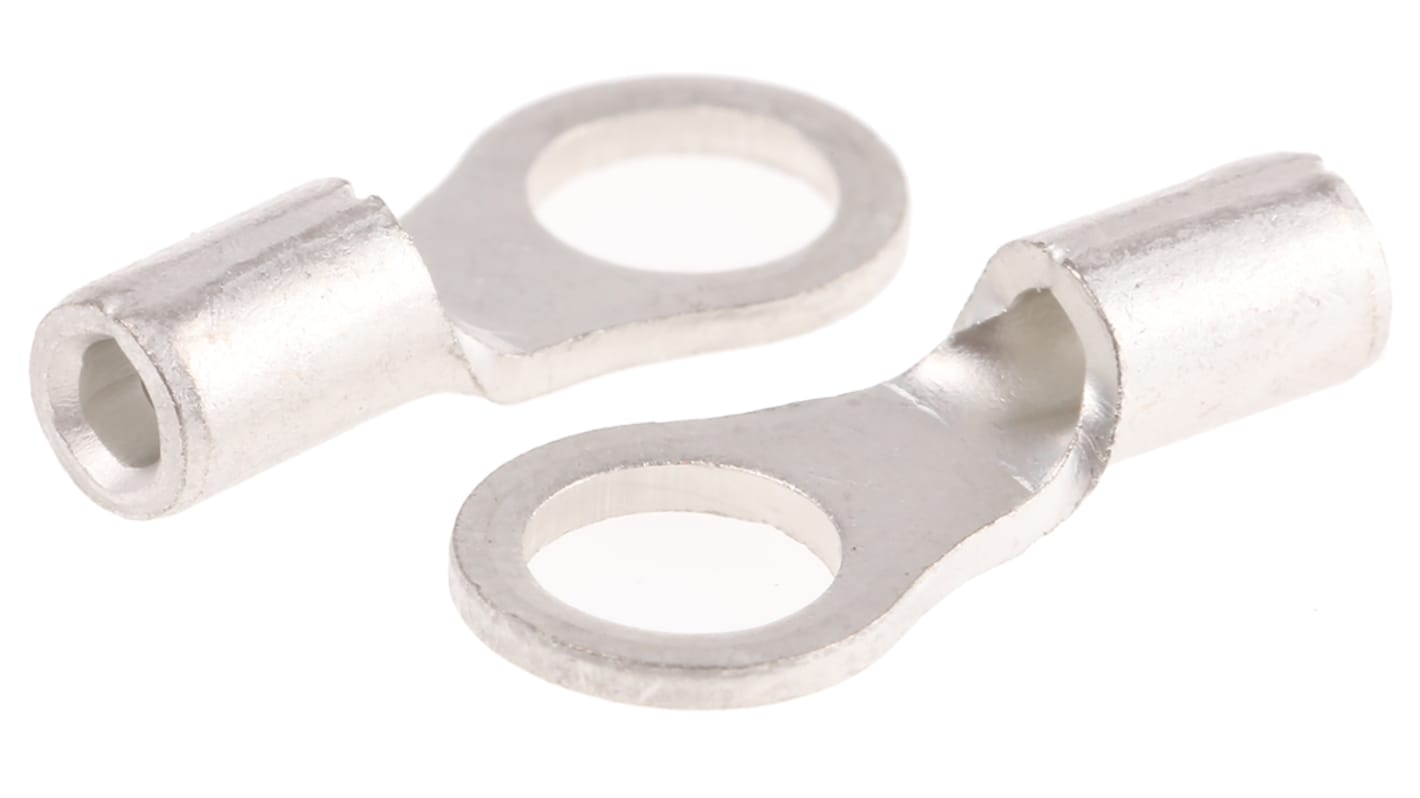

JST Uninsulated Ring Terminal, 4mm Stud Size, 0.25mm² to 1.65mm² Wire Size
- RS Stock No.:
- 602-7512
- Mfr. Part No.:
- 1.25-M4
- Brand:
- JST
23 In stock - FREE next working day delivery available
109 available from Europe for delivery within 5 working day(s).
Added
Price 1 Bag of 100
£7.34
(exc. VAT)
£8.81
(inc. VAT)
| Bag(s) | Per Bag | Per unit* |
| 1 - 4 | £7.34 | £0.073 |
| 5 - 24 | £6.24 | £0.062 |
| 25 - 49 | £5.52 | £0.055 |
| 50 - 99 | £4.76 | £0.048 |
| 100 + | £4.06 | £0.041 |
| *price indicative | ||
- RS Stock No.:
- 602-7512
- Mfr. Part No.:
- 1.25-M4
- Brand:
- JST
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
Uninsulated Crimp Ring Terminals, JST
A range of uninsulated crimp ring terminals from JST to suit stud sizes from 3 to 12mm and wire sizes from 0.2 to 10.5mm² (26 to 8 AWG). The terminals have butted seams and are made from tin-plated oxygen-free copper.
Note
JST part numbers Rxxx conform to JIS C2805
Standards
• UL Listed E42024
• CSA Certified LR20812
• CSA Certified LR20812
JST Terminals
Specifications
Attribute | Value |
|---|---|
| Insulation | Uninsulated |
| Maximum Wire Size mm² | 1.65mm² |
| Minimum Wire Size mm² | 0.25mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Stud Size | 4mm |
| Overall Length | 14.4mm |
