- RS Stock No.:
- 178-8661
- Brand:
- RS PRO
2800 In stock - FREE next working day delivery available
900 available from Europe for delivery within 1 working day(s).
Price Each (In a Bag of 100)
£0.061
(exc. VAT)
£0.073
(inc. VAT)
Units | Per unit | Per Bag* |
100 - 900 | £0.061 | £6.10 |
1000 - 1900 | £0.055 | £5.50 |
2000 - 4900 | £0.05 | £5.00 |
5000 - 9900 | £0.047 | £4.70 |
10000 + | £0.042 | £4.20 |
*price indicative |
- RS Stock No.:
- 178-8661
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details

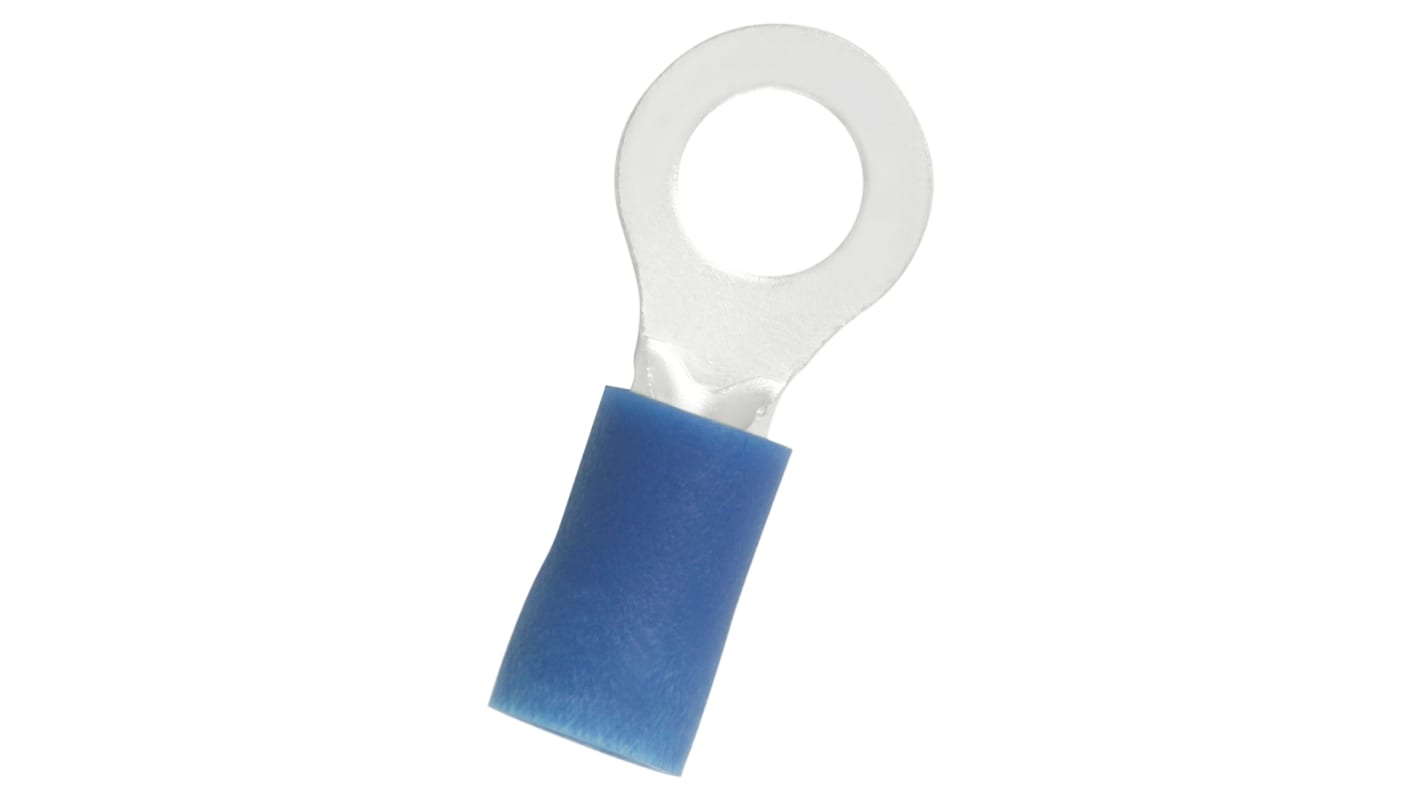

The RS PRO Insulted ring has a outer ring diameter of 9.5mm and inner ring diameter of 5.3mm which comes with maximum 2.5mm² wire size connection. It is made up of high quality copper for contact material and Vinyl is used for insulation which comes with blue in colour.
Stud Size 5.3mm
Colour Blue
Contact Material Copper
Thickness 0.8mm
Overall Length 21.8mm
Colour Blue
Contact Material Copper
Thickness 0.8mm
Overall Length 21.8mm
Specifications
Attribute | Value |
---|---|
Insulation | Insulated |
Insulation Material | Vinyl |
Inner Ring Diameter | 5.3mm |
Outer Ring Diameter | 9.5mm |
Minimum Wire Size mm² | 1.5mm² |
Maximum Wire Size mm² | 2.5mm² |
Maximum Wire Size AWG | 14AWG |
Minimum Wire Size AWG | 16AWG |
Stud Size | 5.3mm |
Colour | Blue |
Contact Material | Copper |
Thickness | 0.8mm |
Overall Length | 21.8mm |
Maximum Operating Temperature | +105°C |
