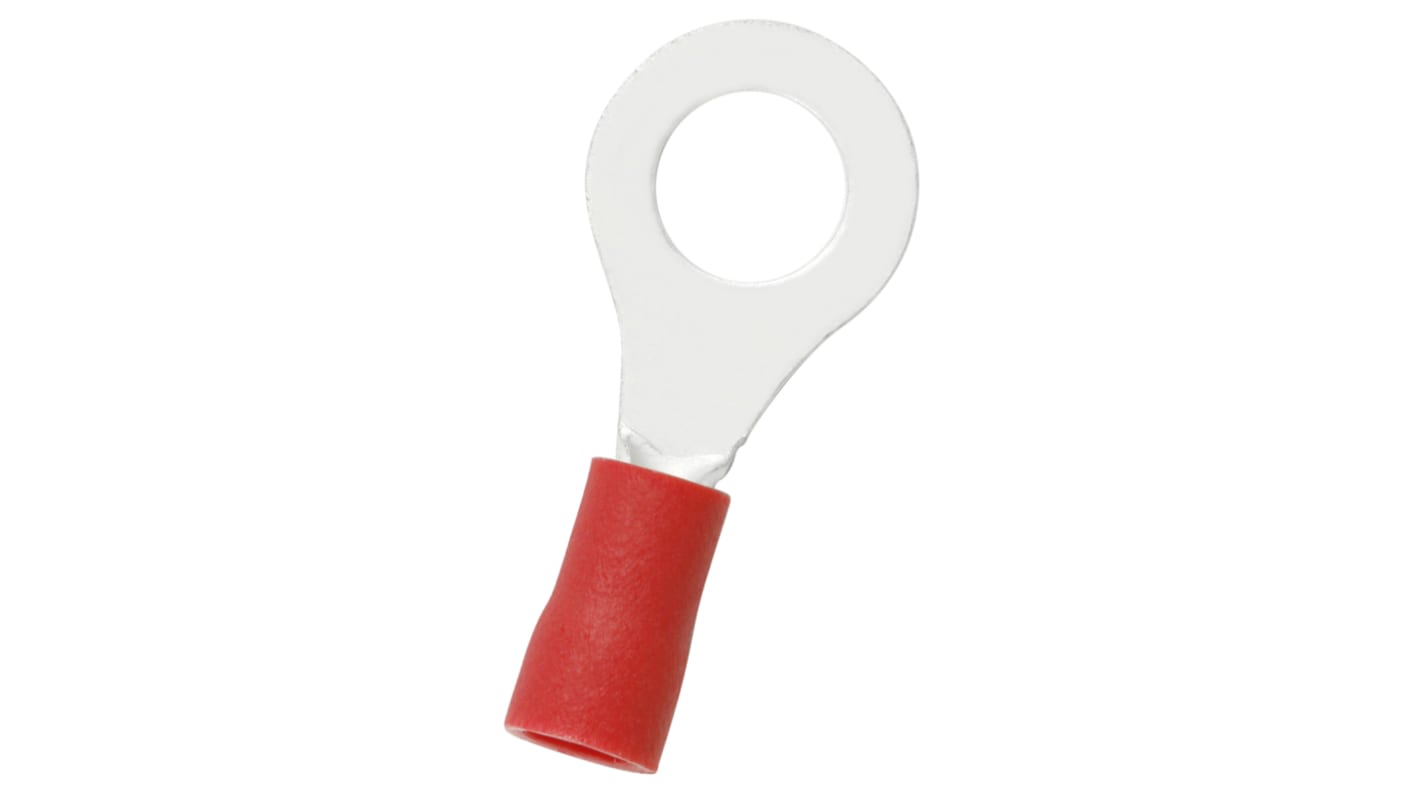

RS PRO Insulated Ring Terminal, 6.4mm Stud Size, 0.5mm² to 1.5mm² Wire Size, Red
- RS Stock No.:
- 178-8654
- Brand:
- RS PRO
1000 In stock - FREE next working day delivery available
Added
Price Each (In a Bag of 100)
£0.076
(exc. VAT)
£0.091
(inc. VAT)
| Units | Per unit | Per Bag* |
| 100 - 900 | £0.076 | £7.60 |
| 1000 - 1900 | £0.069 | £6.90 |
| 2000 - 4900 | £0.063 | £6.30 |
| 5000 - 9900 | £0.058 | £5.80 |
| 10000 + | £0.053 | £5.30 |
| *price indicative | ||
- RS Stock No.:
- 178-8654
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
The RS PRO Insulted ring has a outer ring diameter of 11.6mm and inner ring diameter of 6.4mm which comes with maximum 1.5mm² wire size connection. It is made up of high quality copper for contact material and Vinyl is used for insulation which comes with red in colour.
Stud Size 6.4mm
Colour Red
Contact Material Copper
Thickness 0.75mm
Overall Length 26.8mm
Colour Red
Contact Material Copper
Thickness 0.75mm
Overall Length 26.8mm
Specifications
Attribute | Value |
|---|---|
| Insulation | Insulated |
| Insulation Material | Vinyl |
| Outer Ring Diameter | 11.6mm |
| Inner Ring Diameter | 6.4mm |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size mm² | 0.5mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Stud Size | 6.4mm |
| Colour | Red |
| Contact Material | Copper |
| Thickness | 0.75mm |
| Overall Length | 26.8mm |
| Maximum Operating Temperature | +105°C |
