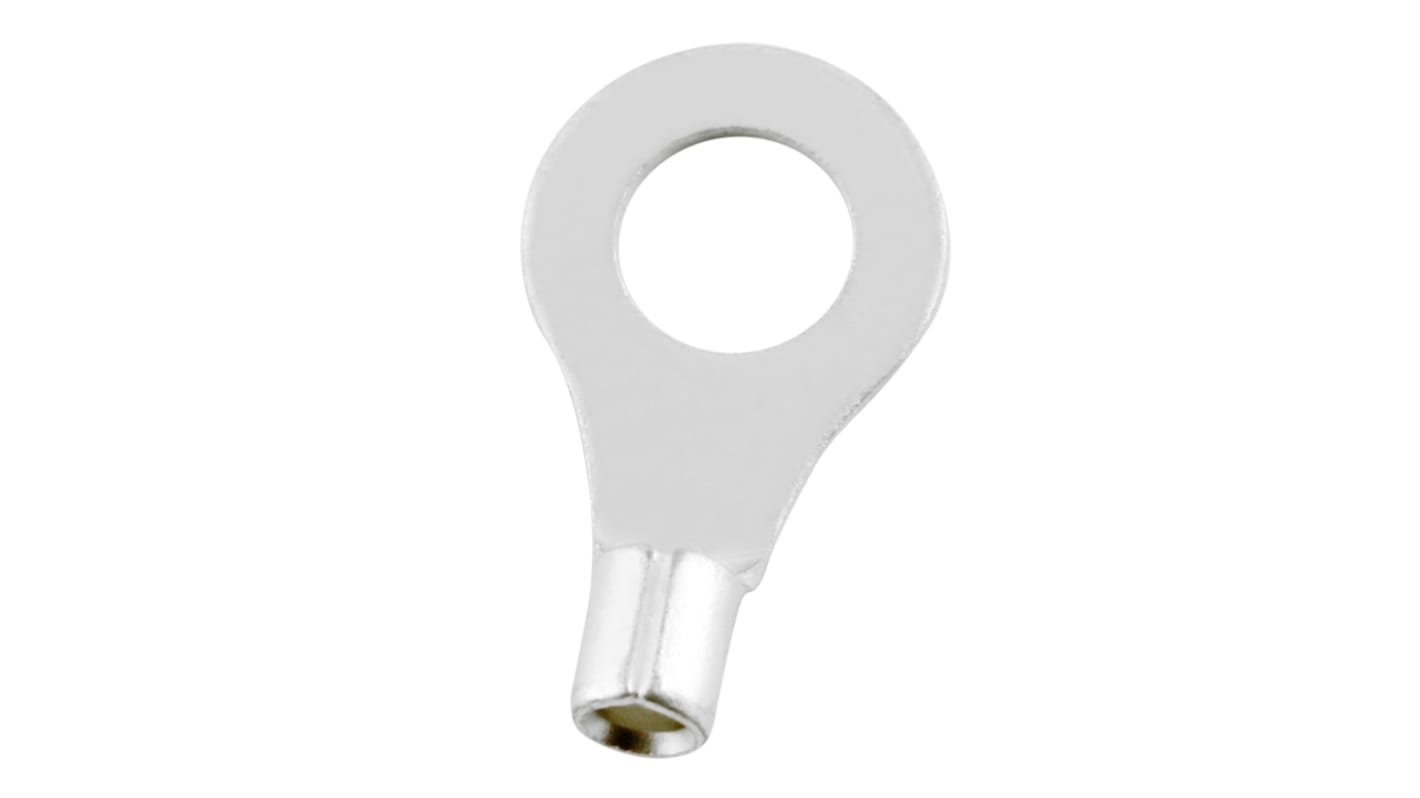

RS PRO Uninsulated Ring Terminal, 8.4mm Stud Size, 1.5mm² to 2.5mm² Wire Size
- RS Stock No.:
- 178-8606
- Brand:
- RS PRO
700 In stock - FREE next working day delivery available
1600 available from Europe for delivery within 1 working day(s).
Added
Price Each (In a Bag of 100)
£0.08
(exc. VAT)
£0.10
(inc. VAT)
| Units | Per unit | Per Bag* |
| 100 - 900 | £0.08 | £8.00 |
| 1000 - 1900 | £0.072 | £7.20 |
| 2000 - 4900 | £0.066 | £6.60 |
| 5000 - 9900 | £0.061 | £6.10 |
| 10000 + | £0.056 | £5.60 |
| *price indicative | ||
- RS Stock No.:
- 178-8606
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
The RS PRO Non-Insulted ring has a outer ring diameter of 12mm and inner ring diameter of 8.4mm which comes with maximum 2.5mm² wire size connection. It is made up of high quality copper for contact material.
Stud Size 8.4mm
Contact Plating Tin
Contact Material Copper
Thickness 0.8mm
Overall Length 21.8mm
Contact Plating Tin
Contact Material Copper
Thickness 0.8mm
Overall Length 21.8mm
Specifications
Attribute | Value |
|---|---|
| Insulation | Uninsulated |
| Inner Ring Diameter | 8.4mm |
| Outer Ring Diameter | 12mm |
| Maximum Wire Size mm² | 2.5mm² |
| Minimum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 14AWG |
| Stud Size | 8.4mm |
| Contact Material | Copper |
| Contact Plating | Tin |
| Thickness | 0.8mm |
| Overall Length | 21.8mm |
