- RS Stock No.:
- 178-8599
- Brand:
- RS PRO
- RS Stock No.:
- 178-8599
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details

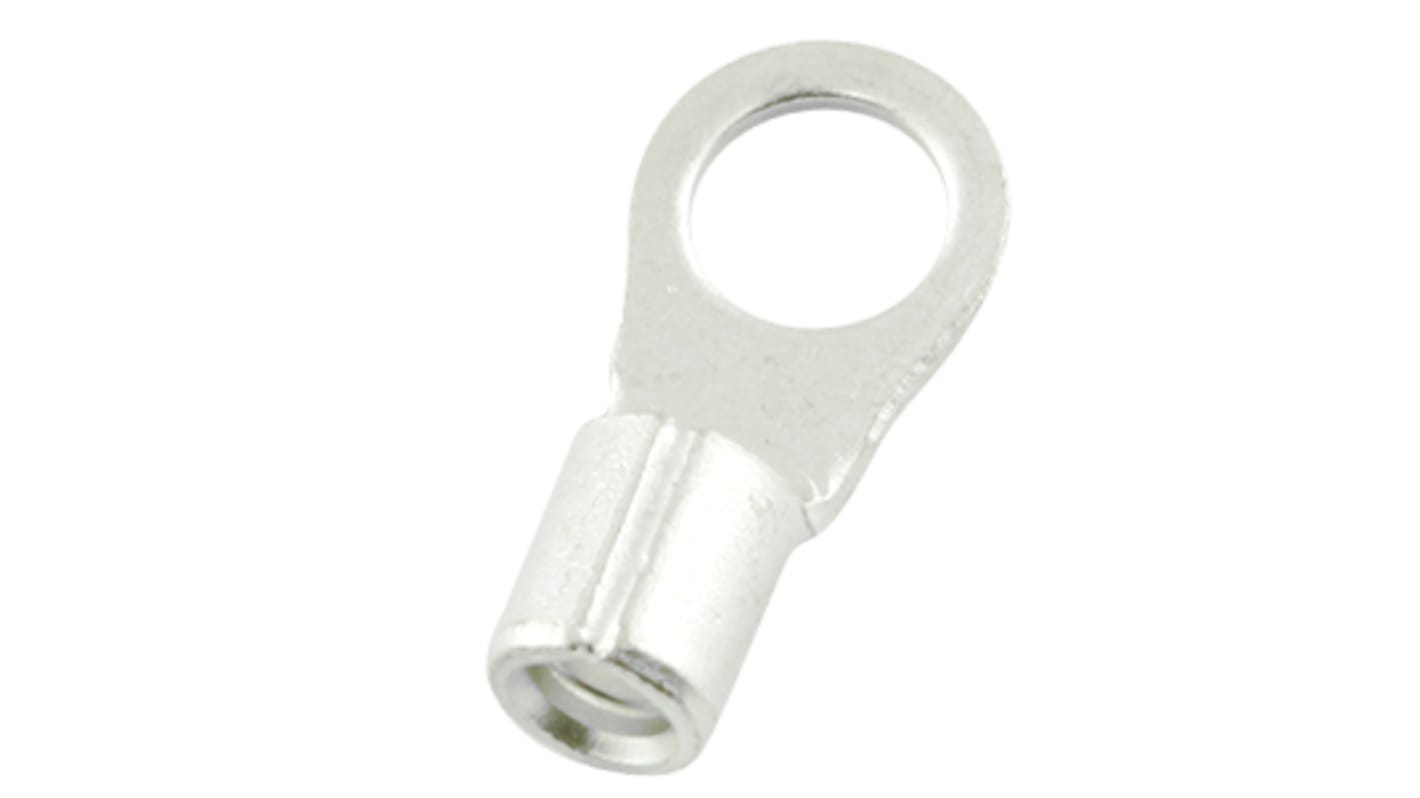

The RS PRO Non-Insulted ring has a outer ring diameter of 6.6mm and inner ring diameter of 3.7mm which comes with maximum 2.5mm² wire size connection. It is made up of high quality copper for contact material.
Stud Size 3.7mm
Contact Plating Tin
Contact Material Copper
Thickness 0.8mm
Overall Length 12.8mm
Contact Plating Tin
Contact Material Copper
Thickness 0.8mm
Overall Length 12.8mm
Specifications
Attribute | Value |
---|---|
Insulation | Uninsulated |
Outer Ring Diameter | 6.6mm |
Inner Ring Diameter | 3.7mm |
Minimum Wire Size mm² | 1.5mm² |
Maximum Wire Size mm² | 2.5mm² |
Minimum Wire Size AWG | 16AWG |
Maximum Wire Size AWG | 14AWG |
Stud Size | 3.7mm |
Contact Material | Copper |
Contact Plating | Tin |
Thickness | 0.8mm |
Overall Length | 12.8mm |
