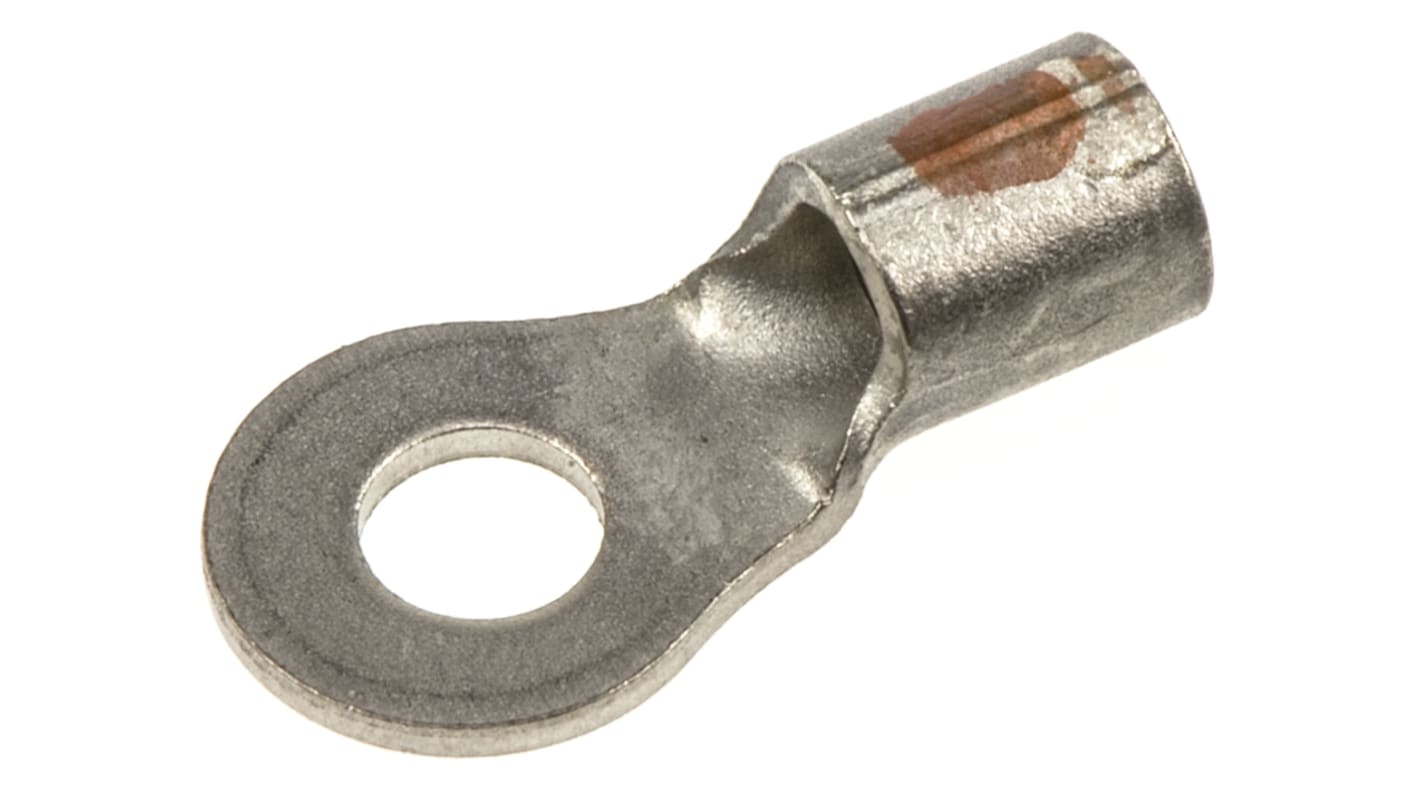

TE Connectivity, STRATO-THERM Uninsulated Ring Terminal, M4 Stud Size, 2.6mm² to 6.6mm² Wire Size
- RS Stock No.:
- 161-1285
- Mfr. Part No.:
- 323745
- Brand:
- TE Connectivity
1010 In stock - FREE next working day delivery available
20 available from Europe for delivery within 1 working day(s).
Added
Price Each (In a Pack of 10)
£4.116
(exc. VAT)
£4.939
(inc. VAT)
| Units | Per unit | Per Pack* |
| 10 - 40 | £4.116 | £41.16 |
| 50 - 240 | £3.684 | £36.84 |
| 250 + | £3.252 | £32.52 |
| *price indicative | ||
- RS Stock No.:
- 161-1285
- Mfr. Part No.:
- 323745
- Brand:
- TE Connectivity
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details
TE Connectivity SOLISTRAND STRATO-THERM High Temperature Ring Tongue Crimp Terminals
SOLISTRAND STRATO-THERM high temperature ring tongue crimp terminals for use where operating temperatures prevent standard insulated crimps being used. These STRATO-THERM high temperature ring tongue crimp terminals are made from solid nickel and designed to terminate solid and/or stranded conductors. When the terminal is crimped the wire inside is forced into the serrations or dimples of the barrel to maximise the electrical contact area after crimping. The maximum operating temperature for these STRATO-THERM high temperature ring tongue crimp terminals is 649°C (1200°F).
Note
For suitable hand crimp tool see stock number 162-3159
Approvals
-
TE Connectivity STRATO-THERM Terminals and Splices
Specifications
Attribute | Value |
|---|---|
| Series | STRATO-THERM |
| Insulation | Uninsulated |
| Outer Ring Diameter | 5.74mm |
| Inner Ring Diameter | 3.28mm |
| Minimum Wire Size mm² | 2.6mm² |
| Maximum Wire Size mm² | 6.6mm² |
| Minimum Wire Size AWG | 12AWG |
| Maximum Wire Size AWG | 10AWG |
| Stud Size | M4 |
| Contact Material | Nickel |
| Thickness | 0.99mm |
| Overall Length | 18.77mm |
- RS Stock No.:
- 161-1285
- Mfr. Part No.:
- 323745
- Brand:
- TE Connectivity
