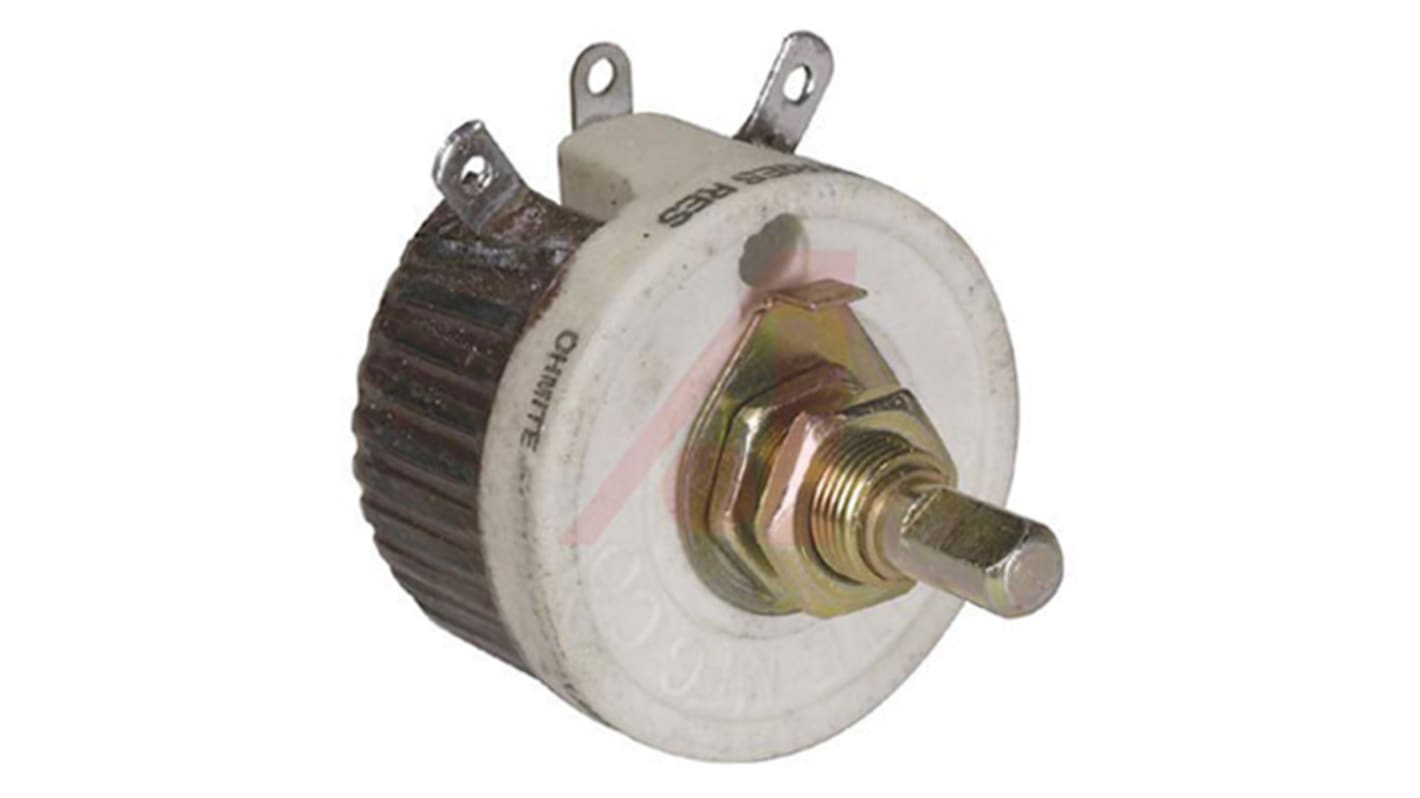

Arcol Ohmite 25W Rheostat, 350Ω, ±10%

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): MX
Product Details

RH Series 25W Wirewound Potentiometers

Ohmite RH series wirewound rheostats are designed and manufactured to operate smoothly and reliably over long periods of use. The RH series has a ceramic body with high grade resistance alloy linear taper windings and a vitreous enamel coating. HR rheostats feature a metal spring contact arm, metal graphite composition and solder coated terminals.

Features and benefits:

±10% tolerance 25 W

Product Applications:

Typical applications for the RH series rheostats are motor speed controls, dimmer switches and equipment requiring convenient variable resistance settings.

Ohmite Potentiometers

Specifications
Attribute Value
Maximum Resistance 350Ω
Tolerance ±10%
Power Rating 25W
Number of Turns 300 °
Mounting Type Panel Mount
Shaft Diameter 6.35 mm
Termination Style Solder Lug
Dimensions 39.62 (Dia.) x 34.93mm
Length 34.93mm
Core Type Open
Maximum Voltage Rating 500 Vrms
Current Rating 260mA
Actuator Type Linear Shaft
Shaft Length 8.73mm
Electrical Taper Linear
Available to back order for despatch 11/02/2020
Price Each
£ 45.88
(exc. VAT)
£ 55.06
(inc. VAT)
Units
Per unit
1 +
£45.88
