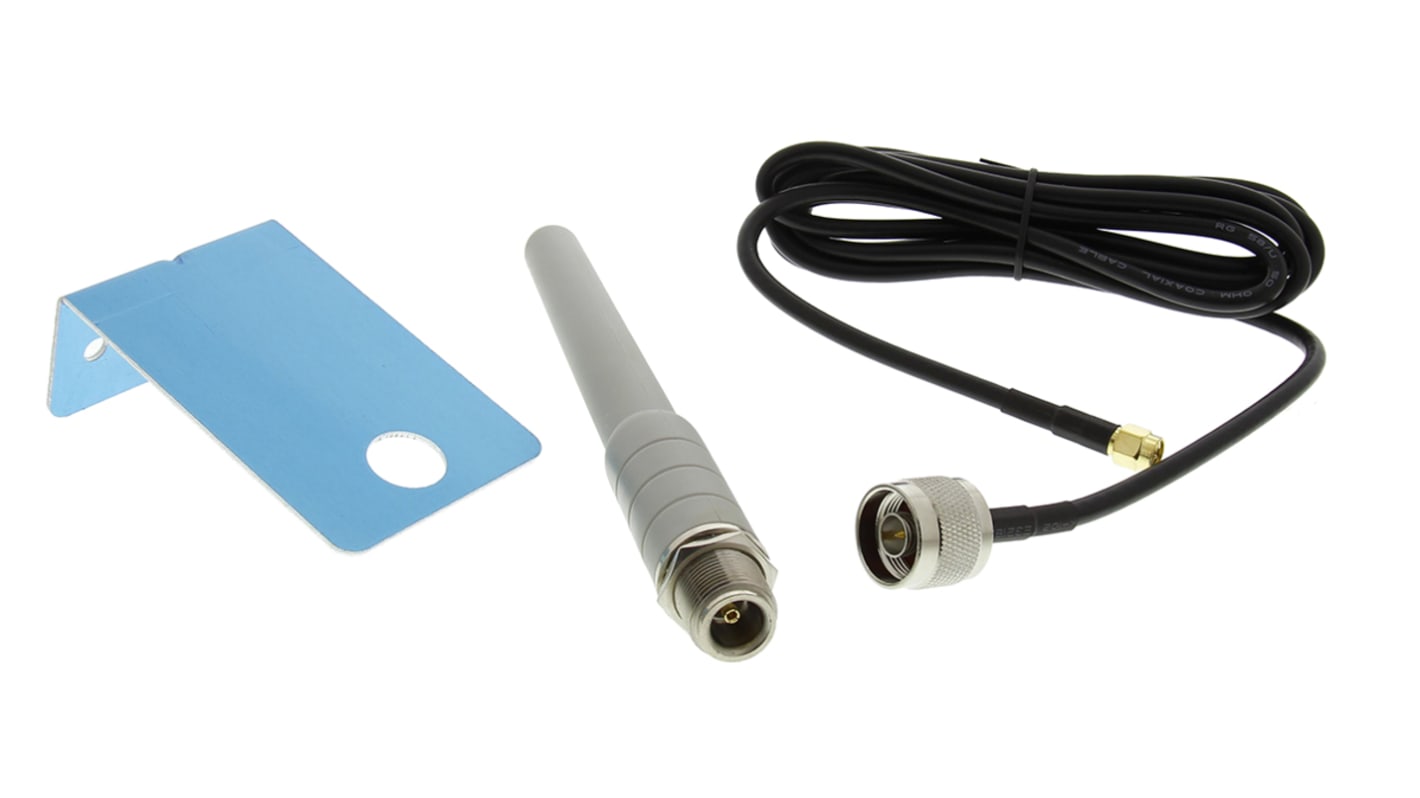

RF Solutions ANT-433WM3-SMA ISM Band, UHF RFID Antenna (433 MHz ) Through Hole/Bolted Mount, SMA

  • RS Stock No. 793-4354
  • Mfr. Part No. ANT-433WM3-SMA
  • Brand RF Solutions
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

RF Solutions - 433MHz Antenna

There are a variety of 433MHz Antenna products from RF Solutions. The active gain on this selection covers, +2dBi, +3dBi, +5dBi from wall mounting, fibreglass rod, miniature helical, ’I’ Bar, hinged Whip and Whip antenna with PIG tail. Some styles have the omnidirectional feature where they work in both directions. Antennas with Leads attached vary from RG58, RG174 and RG316 with 50 Ohm impedance.

RFS 433MHz Gain Antenna’s applications consist of embedded applications, General Low Power Radio, M2M Applications, Telemetry, GSM Cellular and range extension.

· Wall mounting Gain Antenna, +3dBi - Omni Directional, 7MHz Bandwidth, VSWR <1.8, Vertical Polarisation
· Fibreglass Rod, +5dBi - Omni Directional, VSWR <1.8, N Connector on base with; 2m RG58 Lead to SMA (Male), Vertical Polarisation.
· Miniature Helical SMA, +2dBi - OmniDirectional, VSWR <2.0, SMA Male Connector, 1/4 Wave Monopole Antenna, ABS housing and resistant to Vandalism
· I’ Bar Patch Antenna, +3dBi - Horizontal Beam, 6MHz Bandwidth, VSWR <2.0, 2m RG174 Connecting Lead, Self-adhesive sticker on Rear, Vertical Polarisation
· Whip Antenna with PIG Tail, +2dBi - VSWR <2.0, 200mm of RG316 Lead, SMA Male, Vertical Polarisation
· Whip Antenna hinged, +3dBi - Omni-Directional, VSWR <2.0, 1/4 Wave Monopole Antenna, ABS / Rubber Housing

433MHz Antenna

Specifications
Attribute Value
RF Protocols ISM Band, UHF RFID
Antenna Form Factor Rod
Supported Frequency Bands 433 MHz
Antenna Mounting Type Through Hole/Bolted
Connector Type SMA
Gain 3
Connector Gender Male
78 In stock - FREE next working day delivery available
Price Each
£ 25.20
(exc. VAT)
£ 30.24
(inc. VAT)
Units
Per unit
1 - 4
£25.20
5 +
£23.94
