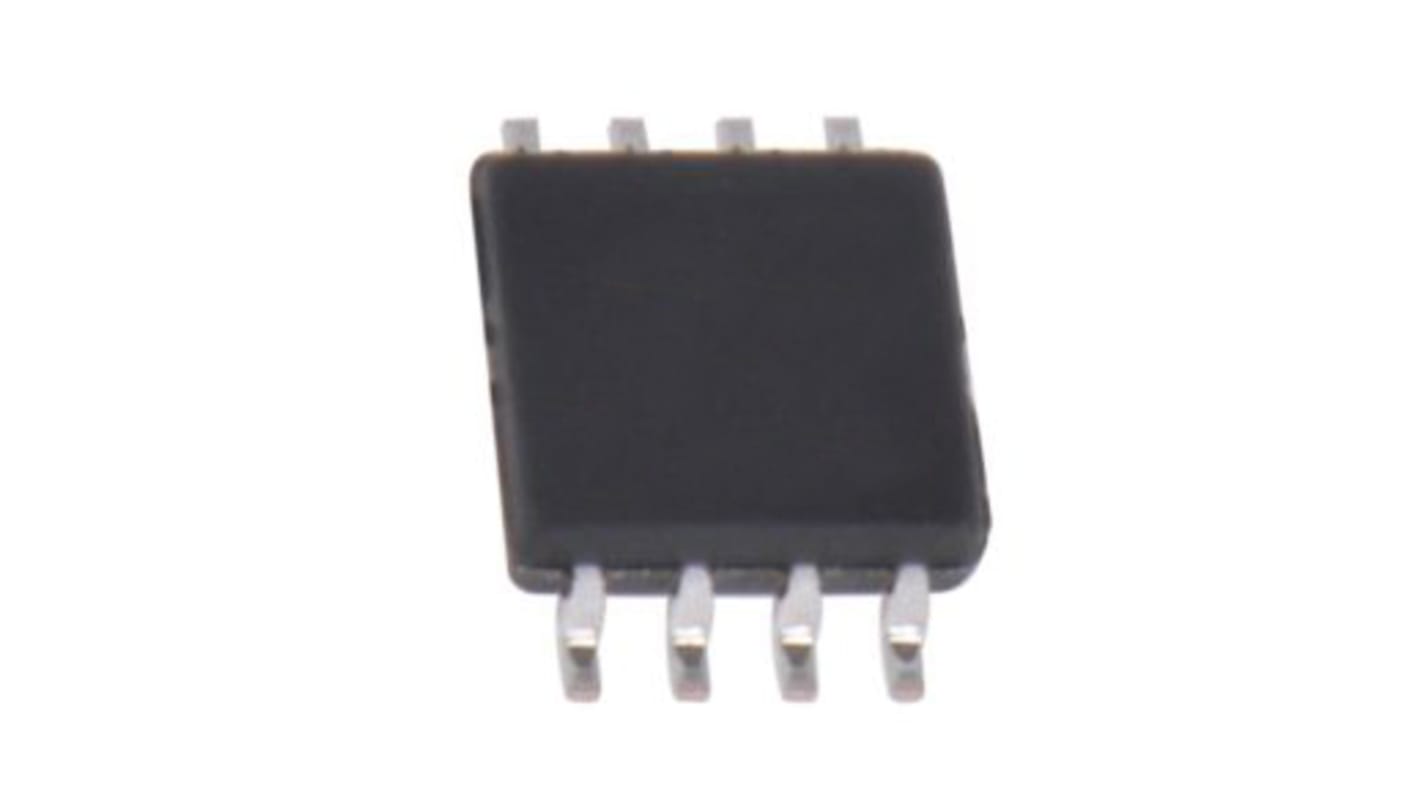

onsemi N24RF16DTPT3G RFID Module, 1.8 → 5.5V
- RS Stock No.:
- 185-8702
- Mfr. Part No.:
- N24RF16DTPT3G
- Brand:
- onsemi
Available to back order for despatch when stock is available
Added
Price Each (In a Pack of 5)
£2.226
(exc. VAT)
£2.671
(inc. VAT)
| Units | Per unit | Per Pack* |
| 5 - 5 | £2.226 | £11.13 |
| 10 - 95 | £1.812 | £9.06 |
| 100 - 245 | £1.632 | £8.16 |
| 250 - 495 | £1.454 | £7.27 |
| 500 + | £1.266 | £6.33 |
| *price indicative | ||
- RS Stock No.:
- 185-8702
- Mfr. Part No.:
- N24RF16DTPT3G
- Brand:
- onsemi
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TH
Product Details
Contactless Transmission of Data
Vicinity Range Communication (up to 150 cm)
Air Interface Communication at 13.56 MHz (HF)
To tag: ASK Modulation with 1.65 Kbit/s or 26.48 Kbit/s Data Rate
From Tag: Load Modulation Using Manchester Coding with 423 kHz and 484 kHz Subcarriers in Low (6.6 Kbit/s) or high (26 Kbit/s) Data Rate Mode. Supports the 53 Kbit/s Data Rate with Fast Commands
Read & Write 32−bit Block Mode
Anti−collision Support
64−bit Unique Identifier (UID)
Multiple 32−bit Passwords and Lock Feature for Each User Memory Sector
Supports Fast (400 kHz) and Fast−Plus (1 MHz) I2C Protocol
1.8 V to 5.5 V Supply Voltage Range
4−Byte Page Write Buffer
I2C Timeout
Schmitt Triggers and Noise Suppression Filters on I2C Bus Inputs (SCL and SDA)
512 Blocks x 32 Bits (16 Sectors of 32 Blocks Each): RF Mode
2048 x 8 Bits I2C Mode
2,000,000 Program/Erase Cycles
200 Year Data Retention
−40C to +105C Temperature Range
SOIC, TSSOP 8−lead Packages
These Devices are Pb−Free, Halogen Free/BFR Free
Applications
NFC Tag
RF Tag
EEPROM
Vicinity Range Communication (up to 150 cm)
Air Interface Communication at 13.56 MHz (HF)
To tag: ASK Modulation with 1.65 Kbit/s or 26.48 Kbit/s Data Rate
From Tag: Load Modulation Using Manchester Coding with 423 kHz and 484 kHz Subcarriers in Low (6.6 Kbit/s) or high (26 Kbit/s) Data Rate Mode. Supports the 53 Kbit/s Data Rate with Fast Commands
Read & Write 32−bit Block Mode
Anti−collision Support
64−bit Unique Identifier (UID)
Multiple 32−bit Passwords and Lock Feature for Each User Memory Sector
Supports Fast (400 kHz) and Fast−Plus (1 MHz) I2C Protocol
1.8 V to 5.5 V Supply Voltage Range
4−Byte Page Write Buffer
I2C Timeout
Schmitt Triggers and Noise Suppression Filters on I2C Bus Inputs (SCL and SDA)
512 Blocks x 32 Bits (16 Sectors of 32 Blocks Each): RF Mode
2048 x 8 Bits I2C Mode
2,000,000 Program/Erase Cycles
200 Year Data Retention
−40C to +105C Temperature Range
SOIC, TSSOP 8−lead Packages
These Devices are Pb−Free, Halogen Free/BFR Free
Applications
NFC Tag
RF Tag
EEPROM
Specifications
Attribute | Value |
|---|---|
| Component Type | Module |
| Supported Bus Interfaces | I2C |
| Supply Voltage | 1.8 → 5.5V |
| Dimensions | 3.1 x 4.5 x 1.05mm |
| Height | 1.05mm |
| Length | 3.1mm |
| Maximum Operating Temperature | +105 °C |
| Minimum Operating Temperature | -40 °C |
| Width | 4.5mm |
