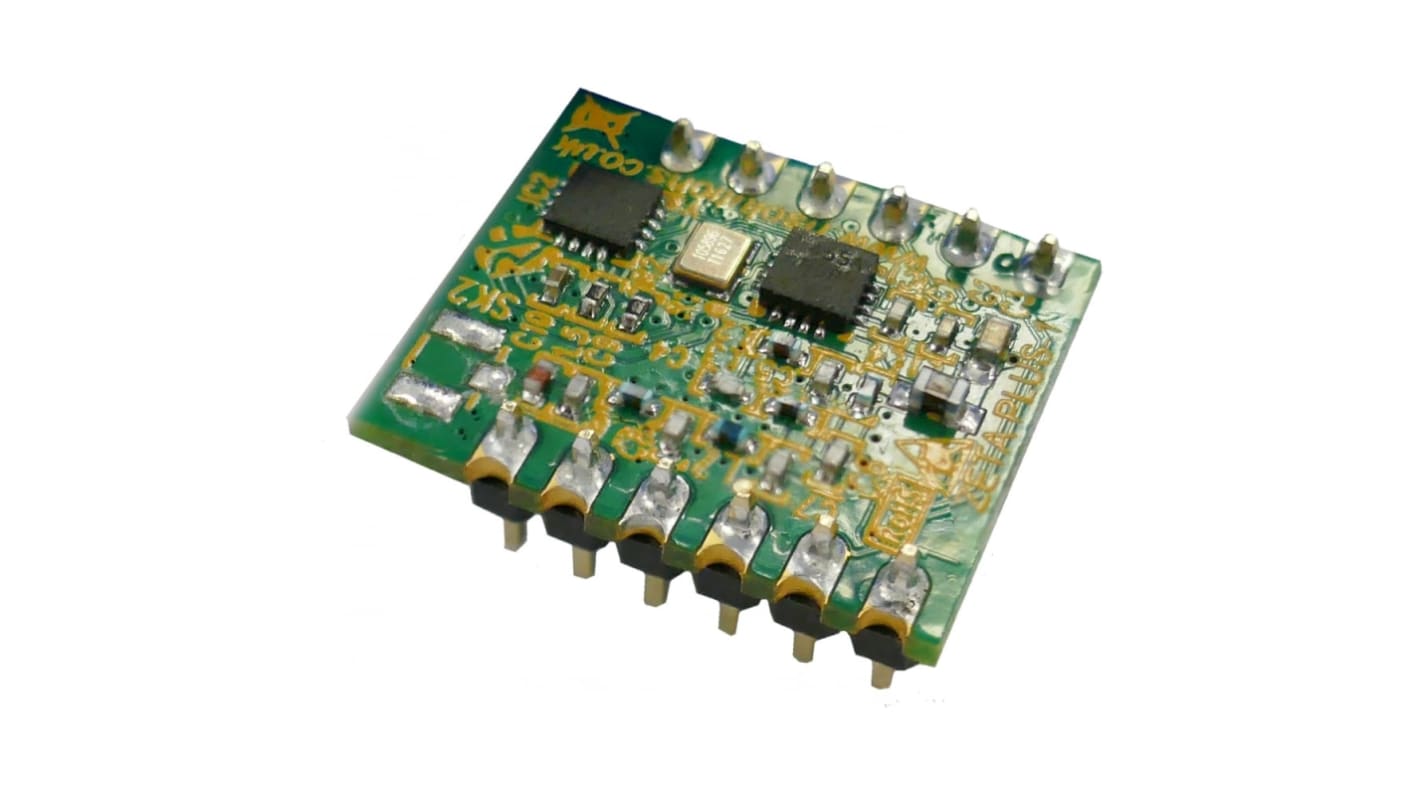

RF Solutions ZPT-8RD Module 868MHz, 1.8 → 3.6V
- RS Stock No.:
- 181-2475
- Mfr. Part No.:
- ZPT-8RD
- Brand:
- RF Solutions
9 In stock - FREE next working day delivery available
Added
Price Each
£14.83
(exc. VAT)
£17.80
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £14.83 |
| 5 + | £14.10 |
- RS Stock No.:
- 181-2475
- Mfr. Part No.:
- ZPT-8RD
- Brand:
- RF Solutions
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details
The ZPT receiver module provides an easy "Plug and Play" Remote Control feature for any application.Compatible with many RF Solutions Transmitters, the ZPT provides a serial and digital output when the transmitter is operated. When used with one of the many RF Solutions transmitters, a versatile, secure radio Telemetry switch can be created.
Simple and low cost
4 channel receiver module
4 digital outputs
Serial data output
minimal external components
Secure data protocol
Ultra low power 1.8-3.6V
Easy pairing process
-121dBM receive sensitivity
SMT or SIL package
Incorporates self test mode
4 channel receiver module
4 digital outputs
Serial data output
minimal external components
Secure data protocol
Ultra low power 1.8-3.6V
Easy pairing process
-121dBM receive sensitivity
SMT or SIL package
Incorporates self test mode
Specifications
Attribute | Value |
|---|---|
| Component Type | Module |
| Supported Frequency Bands | 868MHz |
| Modulation Technique | FM |
| Receiver Sensitivity | -121dBm |
| Supported Bus Interfaces | Serial |
| Supply Voltage | 1.8 → 3.6V |
| Dimensions | 19.25 x 16.5 x 1mm |
| Height | 1mm |
| Length | 19.25mm |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -20 °C |
| Width | 16.5mm |
