- RS Stock No.:
- 815-6744
- Mfr. Part No.:
- P2RF-05-ESS
- Brand:
- Omron
303 In stock - FREE next working day delivery available
15 available from Europe for delivery within 1 working day(s).
Added
Price Each
£5.78
(exc. VAT)
£6.94
(inc. VAT)
Units | Per unit |
1 - 4 | £5.78 |
5 - 9 | £5.59 |
10 + | £5.32 |
- RS Stock No.:
- 815-6744
- Mfr. Part No.:
- P2RF-05-ESS
- Brand:
- Omron
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- IT
Product Details
P2RF- ESS Series
Omron P2RF-ESS series rise-up terminal sockets.
Double wiring available on all the terminals
Release lever enables easy replacement
Finger-protection: IP20
UL/CSA/TUV/Lloyd's certification
RoHS certified
Operating temperature: -25º to +70º
Socket accessories also available
Release lever enables easy replacement
Finger-protection: IP20
UL/CSA/TUV/Lloyd's certification
RoHS certified
Operating temperature: -25º to +70º
Socket accessories also available

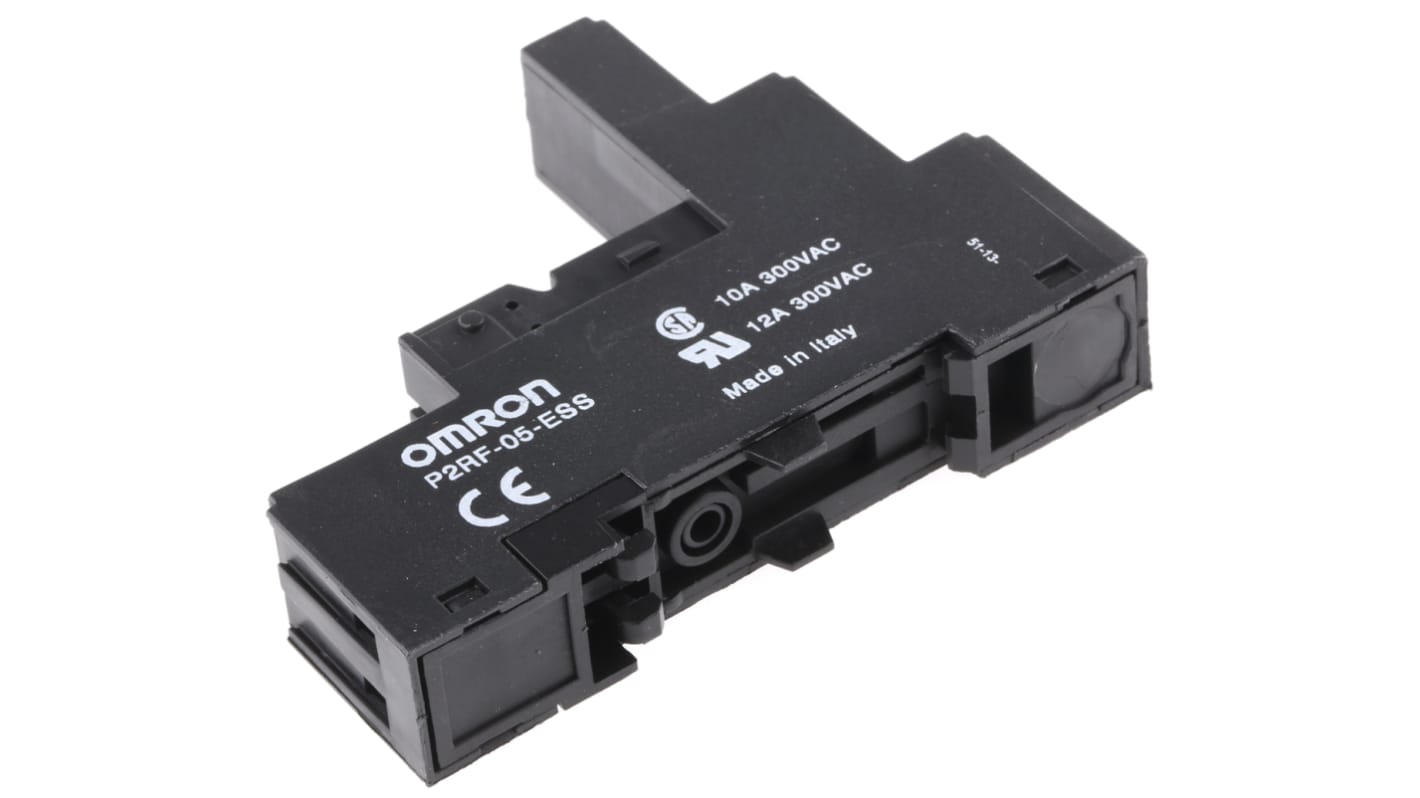

OMRON Relay Socket, Rise-Up Terminals, 15.6mm Width - P2RF Series - P2RF-05-ESS
Ensure your G2R-series relay sits comfortably on your DIN rail with this relay socket from OMRON. You plug in the relay at the front and there's a clip at the back for swift and secure mounting. Double wiring on the terminals makes connecting it to your motor, heater or lighting circuit a piece of cake. Use the wide openings on the side to push in wires sized between 20 to 14AWG. To boost versatility, it accepts both round and forked ferrules. Thanks to the rise-up box terminal design, you can trust connections to stay clamped tightly for the long term.
Features & Benefits
Operates safely between -25°C and +70°C, so it can handle plant and manufacturing temperatures
Compact width of 15.6mm to fit on short rails and inside compact enclosures
IP20 rating means your fingers are protected from shocks during installation and use
Compact width of 15.6mm to fit on short rails and inside compact enclosures
IP20 rating means your fingers are protected from shocks during installation and use
Applications
Food and beverage industry
Panel building
Automotive industry
HVAC systems
Panel building
Automotive industry
HVAC systems
Can I switch between relays with this socket?
Yes, it's no problem to rejig your setup, so long as you pick compatible relays from the G2R series.
Specifications
Attribute | Value |
---|---|
Voltage | 250V ac |
For Use With | G2R Relay |
Accessory Type | Socket |
Series | P2RF |
Mounting Type | DIN Rail |
Termination Type | Screw |
Current Rating | 10A |
